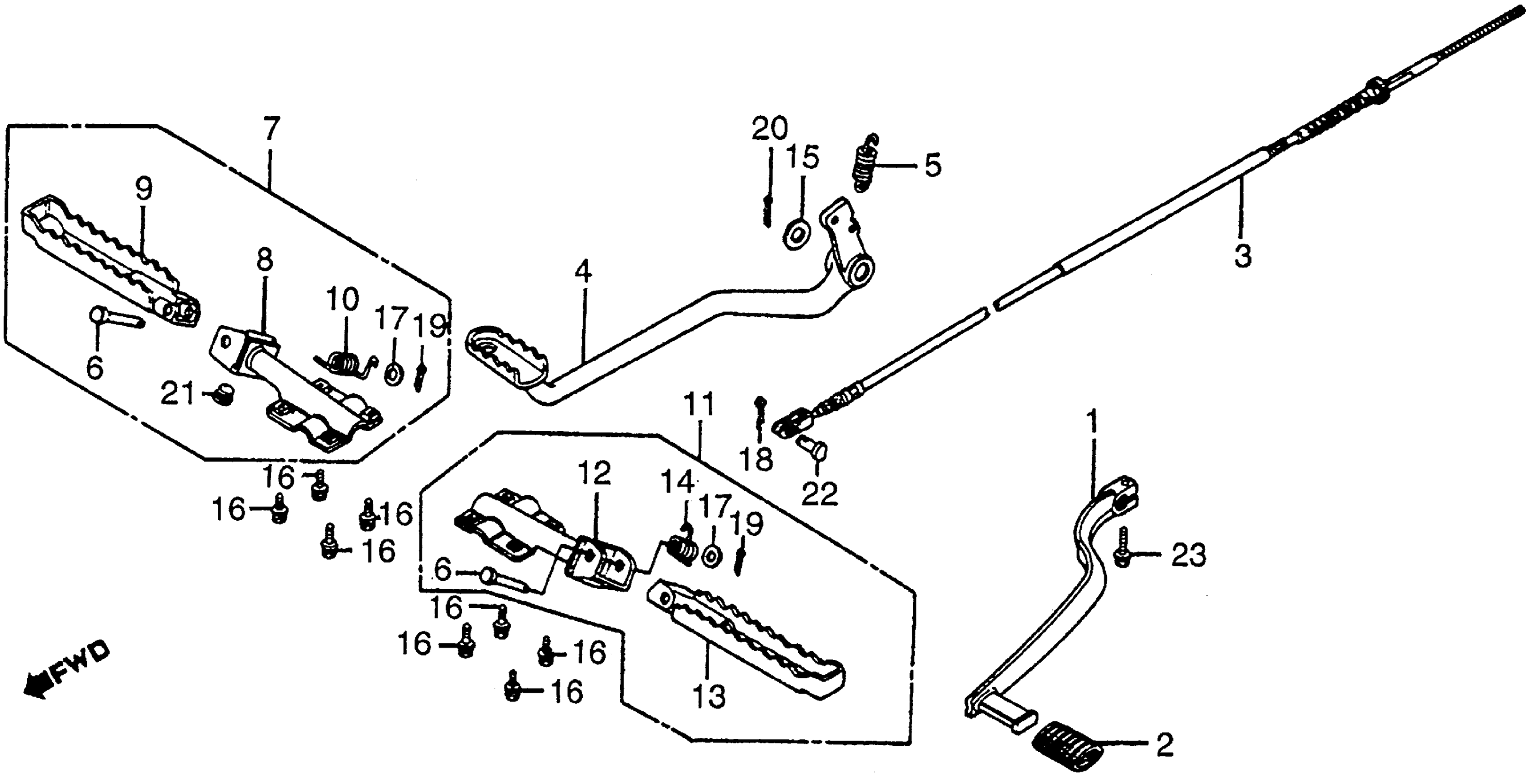

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 STEP + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT This part replaces 24700-958-680.

24700-958-681

Unavailable

1

PEDAL, GEARSHIFT

24700-958-681

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

CABLE, BRAKE

43470-VM3-405

Unavailable

3

CABLE, BRAKE This part replaces 43470-958-680.

43470-VM3-405

Unavailable

4

PEDAL, BRAKE (NOT AVAILABLE)

46500-958-680

Unavailable

5

SPRING, BRAKE PEDAL

46514-VM3-000

Unavailable

5

SPRING, BRAKE PEDAL This part replaces 46514-942-000.

46514-VM3-000

Unavailable

6

PIN, STEP JOINT (NOT AVAILABLE) This part replaces 50603-958-680.

50603-964-000

Unavailable

7

ARM ASSY., R. STEP (NOT AVAILABLE) This part replaces 50610-958-681.

50610-969-000

Unavailable

7

ARM ASSY., R. STEP

50610-969-000

Unavailable

8

ARM, R. FOOTPEG

50613-958-681

Unavailable

9

FOOTPEG, R. (NOT AVAILABLE) This part replaces 50616-958-680.

50616-969-000

Unavailable

9

FOOTPEG, R.

50616-969-000

Unavailable

10

SPRING, STEP RETURN (NOT AVAILABLE)

50617-958-680

Unavailable

11

ARM ASSY., L. FOOTPEG (NOT AVAILABLE) This part replaces 50640-958-681.

50640-969-000

Unavailable

11

ARM ASSY., L. FOOTPEG (NOT AVAILABLE)

50640-969-000

Unavailable

12

ARM, L. FOOTPEG

50643-958-681

Unavailable

13

FOOTPEG, L. This part replaces 50646-958-680.

50646-969-000

Unavailable

13

FOOTPEG, L. (NOT AVAILABLE)

50646-969-000

Unavailable

14

SPRING, FOOTPEG RETURN (NOT AVAILABLE)

50647-958-680

Unavailable

15

WASHER (17.5MM)

90512-303-000

$1.77

16

BOLT-WASHER (8X16)

93402-08016-08

$2.05

16

BOLT-WASHER (8X16) This part replaces 93492-08016-08.

93402-08016-08

$2.05

17

WASHER, PLAIN (8MM)

94101-08800

$1.93

18

PIN, COTTER (1.6X12)

94201-16120

$1.49

19

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

19

PIN, COTTER (1.6X25)

94201-16250

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

20

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

20

PIN, COTTER (3.0X45)

94201-30450

$1.49

21

RUBBER C, STAND STOPPER

95011-63000

$3.90

22

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

23

BOLT, FLANGE (6X20) This part replaces 95700-06020-08.

95701-06020-08

$1.49

23

BOLT, FLANGE (6X20)

95701-06020-08

$1.49
