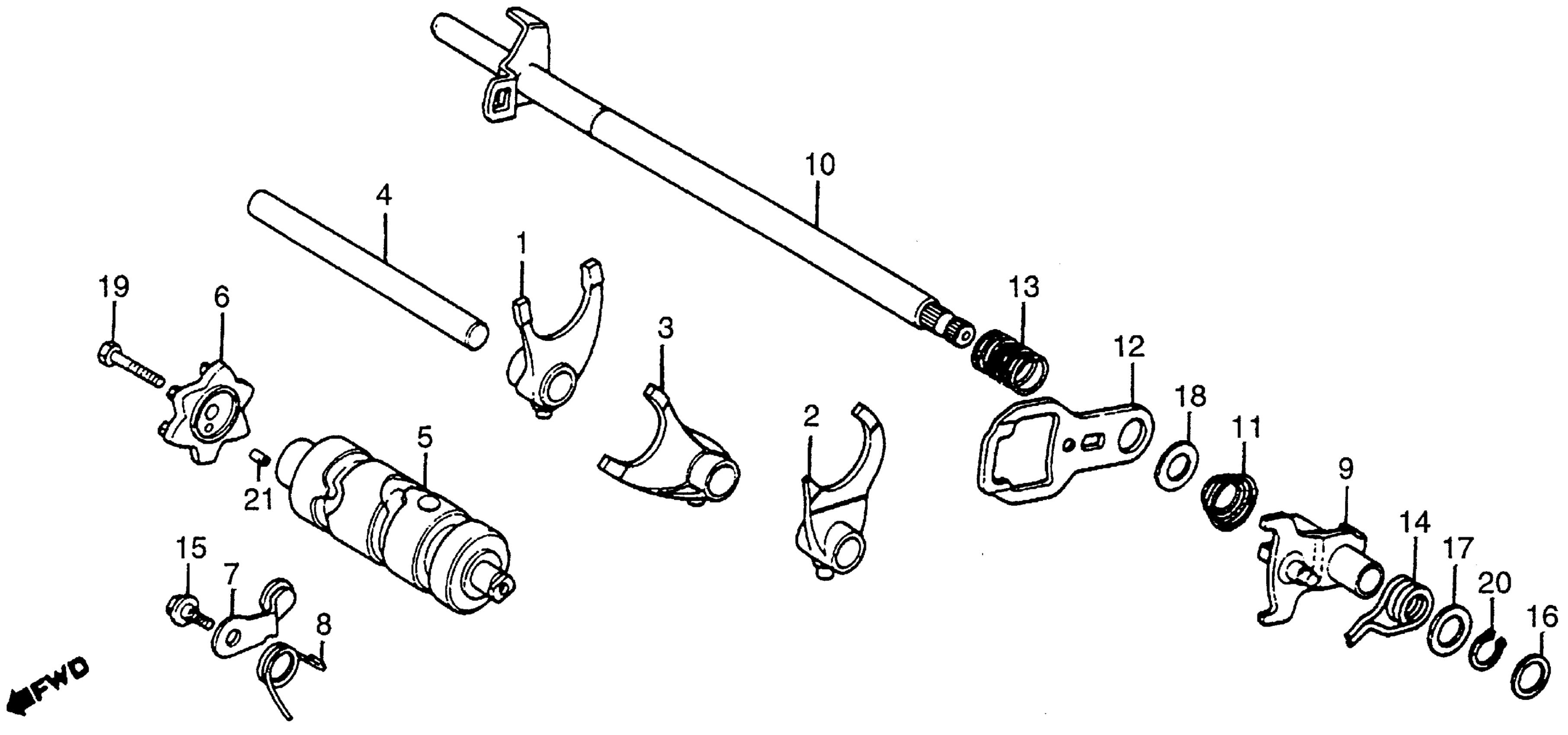

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-437-010

Unavailable

2

FORK, L. GEARSHIFT

24221-427-010

$74.49

3

FORK, CENTER GEARSHIFT

24231-107-010

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE

24241-399-000

$16.72

5

DRUM, GEARSHIFT

24301-958-680

Unavailable

6

CAM, GEARSHIFT

24411-958-010

$38.84

7

STOPPER, GEARSHIFT DRUM

24430-437-000

$17.25

8

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-958-000

Unavailable

9

ARM, GEARSHIFT MASTER (NOT AVAILABLE)

24510-958-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-958-000

Unavailable

11

SPRING, GEARSHIFT SPINDLE (NOT AVAILABLE)

24617-958-004

Unavailable

12

PLATE, GEARSHIFT (NOT AVAILABLE)

24621-958-010

Unavailable

13

SPRING, SHIFT PLATE (NOT AVAILABLE)

24631-958-000

Unavailable

14

SPRING, SHIFT RETURN

24651-958-000

Unavailable

15

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

15

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

16

WASHER A, THRUST (14MM)

90427-958-000

Unavailable

17

WASHER B, THRUST (14MM)

90428-958-000

$4.66

18

WASHER, THRUST (10MM) (NOT AVAILABLE)

90451-350-000

Unavailable

19

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

19

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

20

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

21

ROLLER (4X10)

96220-40100

$1.49
