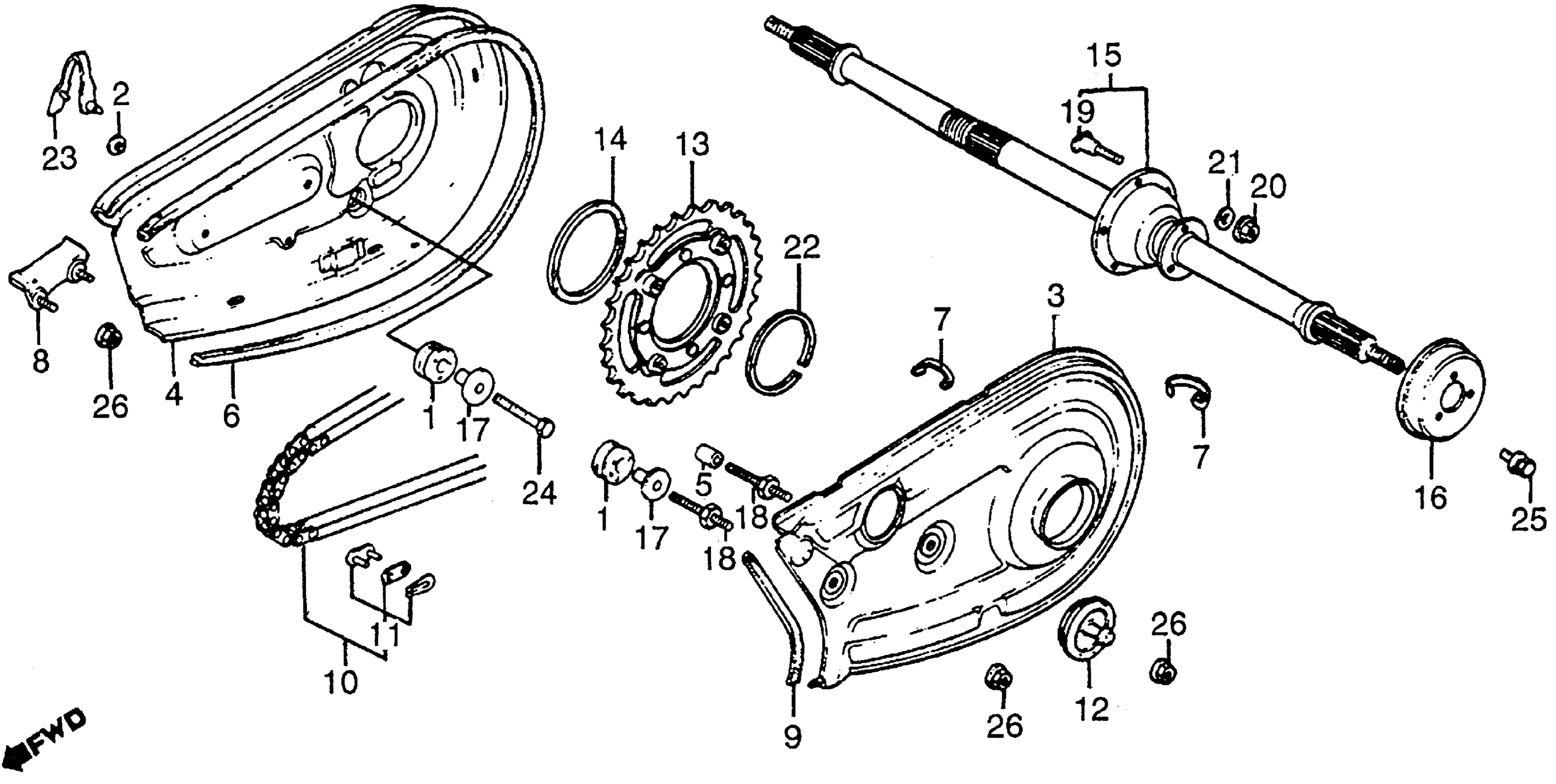

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 REAR WHEEL AXLE + CHAIN CASE 83 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

CASE, CHAIN (OUTER) (NOT AVAILABLE) This part replaces 40521-958-000.

40521-VM3-680

Unavailable

4

CASE, INSIDE CHAIN (NOT AVAILABLE) This part replaces 40522-958-681.

40522-VM3-680

Unavailable

5

COLLAR, CHAIN GUARD (NOT AVAILABLE)

40523-958-000

Unavailable

6

SEAL, INSIDE CHAIN CASE (NOT AVAILABLE)

40524-958-000

Unavailable

7

SPRING, CHAIN GUARD SETTING This part replaces 40525-958-000.

40525-969-680

Unavailable

7

SPRING, CHAIN GUARD SETTING

40525-969-680

Unavailable

8

GUIDE, CHAIN (NOT AVAILABLE)

40526-958-680

Unavailable

9

SEAL, CHAIN GUARD (OUTER) (NOT AVAILABLE)

40527-958-000

Unavailable

10

CHAIN, DRIVE (NOT AVAILABLE)

405W3-HB9-505

Unavailable

11

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

11

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

12

CAP, CHAIN

40545-958-000

Unavailable

13

SPROCKET ASSY., FINAL DRIVEN

41200-958-000

Unavailable

14

DUST SEAL B, SPROCKET (NOT AVAILABLE)

41207-958-000

Unavailable

15

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-958-020

Unavailable

16

PLATE, SHIELD (NOT AVAILABLE)

42327-958-000

Unavailable

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

BOLT, SPECIAL (6X22) (NOT AVAILABLE)

90102-958-000

Unavailable

19

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

20

NUT, FLANGE (8MM)

90309-428-731

$3.35

22

RING, SNAP (95MM) (NOT AVAILABLE)

90602-958-000

Unavailable

23

STRAP B, CABLE (125MM) (BLUE)

90669-671-003

Unavailable

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

BOLT-WASHER (6X8)

93492-06008-08

Unavailable

26

NUT, FLANGE (6MM)

94050-06080

$1.49
