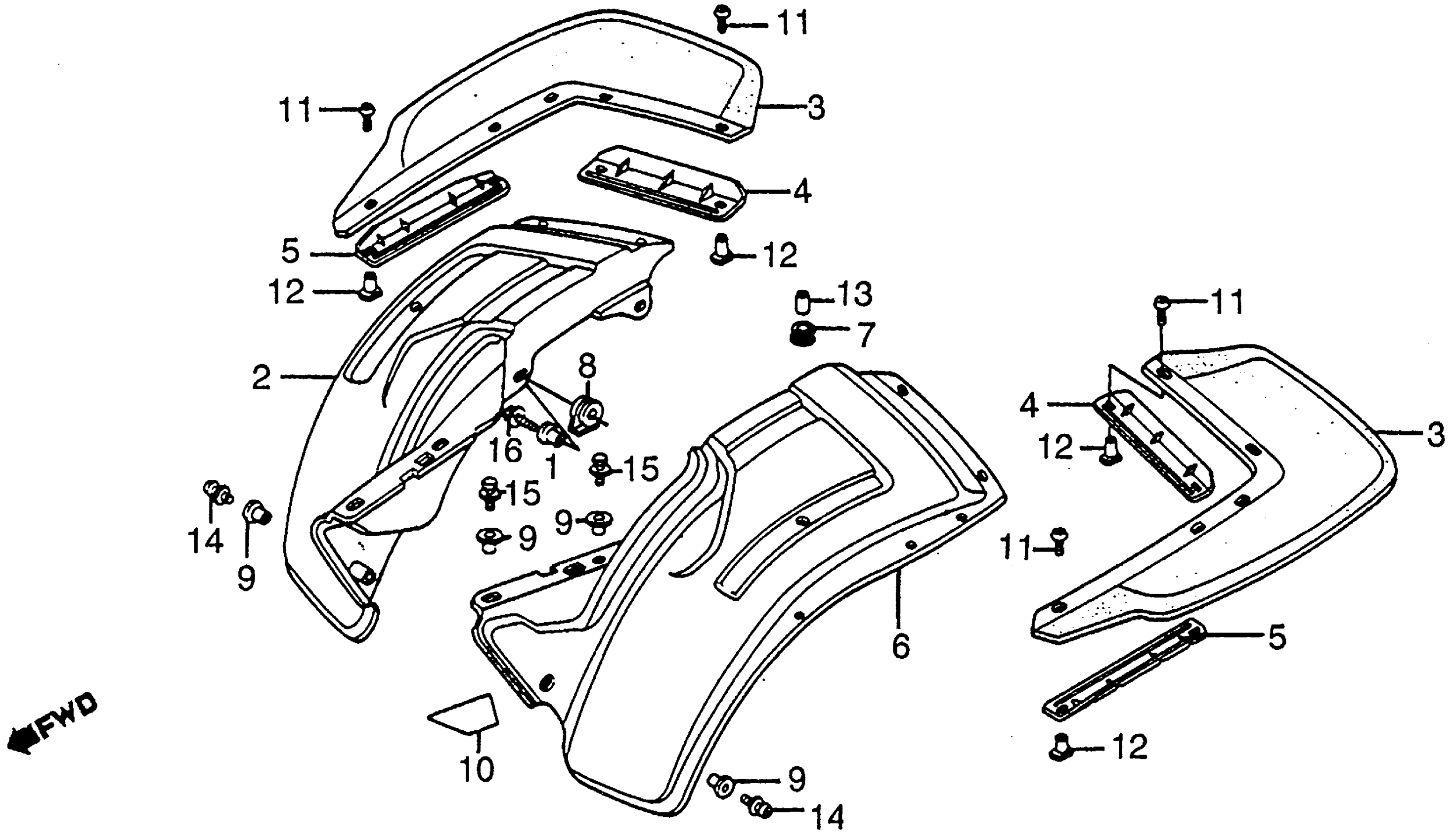

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 REAR FENDER Diagram

#

Description
Price

1

COLLAR, FENDER SETTING

61104-444-000

$7.61

2

FENDER, R. RR. This part replaces 80100-958-683.

80100-958-684

Unavailable

2

FENDER, R. RR.

80100-958-684

Unavailable

3

SPLASH GUARD, RR. (NOT AVAILABLE)

80111-958-680

Unavailable

4

PLATE, RR. FENDER (NOT AVAILABLE)

80112-958-680

Unavailable

5

PLATE, RR. FENDER SIDE (NOT AVAILABLE)

80113-958-680

Unavailable

6

FENDER, L. RR. *R109* (PASSION RED) This part replaces 80150-958-681ZA.

80150-958-682

Unavailable

6

FENDER, L. RR. *R109* (PASSION RED)

80150-958-682

Unavailable

7

RUBBER, RR. FENDER

80152-958-680

$5.14

8

GROMMET, RR. FENDER (NOT AVAILABLE)

80161-958-680

Unavailable

9

COLLAR

84706-415-000

$2.23

10

MARK, TIRE & CHAIN CAUTION (NOT AVAILABLE)

87532-958-680

Unavailable

11

SCREW, TORUS (6X7)

90102-673-003

Unavailable

12

NUT, SPECIAL (6MM)

90302-958-680

Unavailable

13

COLLAR (8MM)

90324-449-000

Unavailable

14

SCREW-WASHER (6X16)

93892-06016-08

$1.49

15

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

15

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

15

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

16

BOLT, FLANGE (6X25)

95700-06025-08

$1.72

16

BOLT, FLANGE (6X25)

95701-06025-08

$1.72
