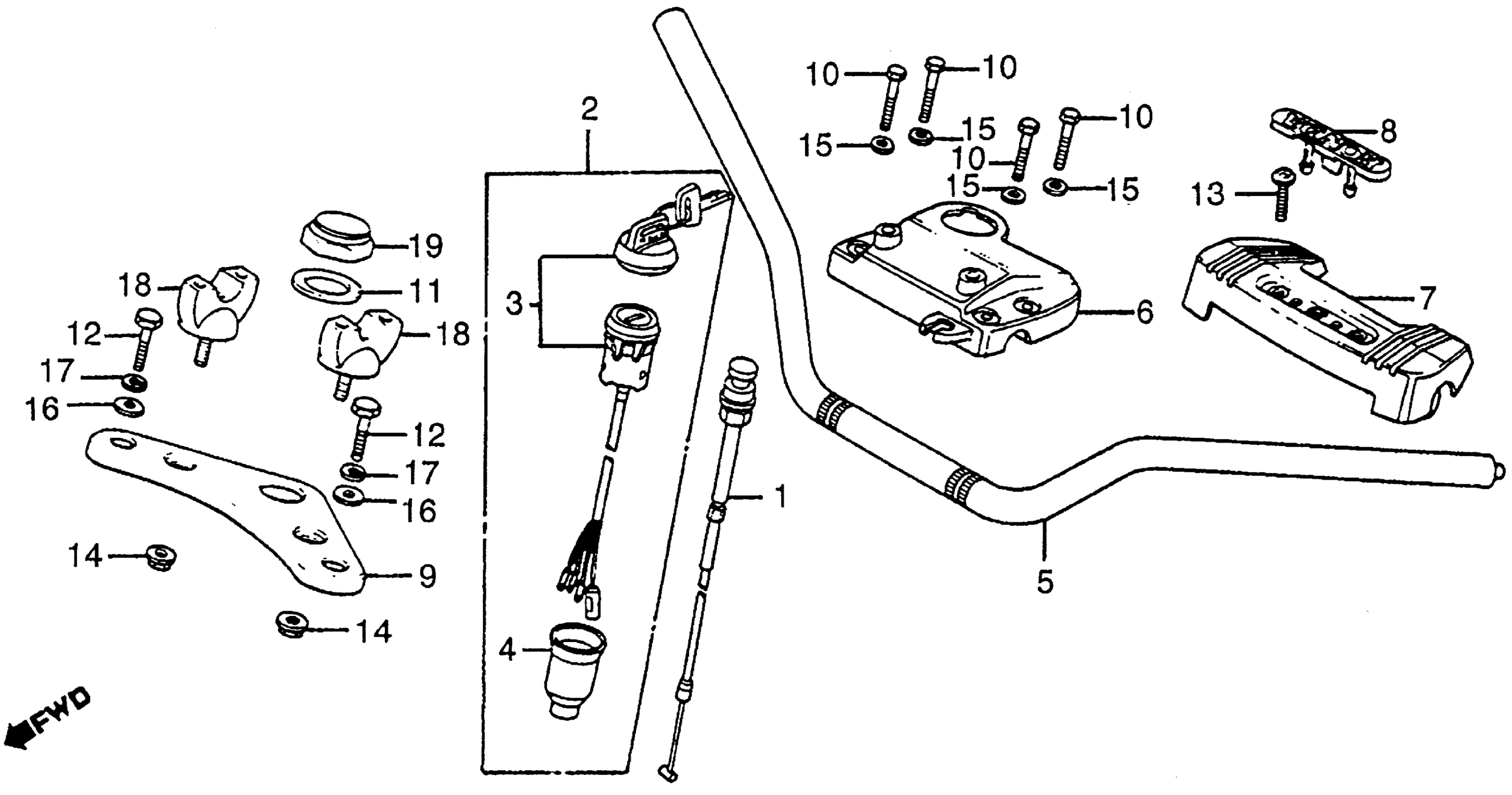

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CABLE, CHOKE

17950-958-680

Unavailable

2

LOCK SET

35010-958-680

Unavailable

3

LOCK SET

35010-958-680

Unavailable

3

LOCK SET This part replaces 35100-958-681.

35010-958-680

Unavailable

4

COVER, COMBINATION SWITCH (NOT AVAILABLE)

35105-958-680

Unavailable

5

HANDLEBAR (NOT AVAILABLE)

53100-958-681

Unavailable

6

HOLDER, HANDLEBAR (UPPER) (NOT AVAILABLE)

53131-958-681

Unavailable

7

COVER, HANDLEBAR (NOT AVAILABLE) This part replaces 53205-958-681.

53205-958-682

Unavailable

7

COVER, HANDLEBAR (NOT AVAILABLE)

53205-958-682

Unavailable

8

LABEL, HANDLEBAR COVER (NOT AVAILABLE)

53206-958-003

Unavailable

9

BRIDGE, FORK TOP

53231-958-680

Unavailable

10

BOLT, HEX. (6X28)

90117-065-000

$2.62

11

WASHER, STEERING STEM

90503-958-000

Unavailable

12

BOLT, HEX. (12X25) This part replaces 92000-12025-0A.

92101-12025-0A

$2.43

12

BOLT, HEX. (12X25)

92101-12025-0A

$2.43

13

SCREW-WASHER (6X20)

93891-06020-08

$1.80

14

NUT, FLANGE (10MM)

94050-10080

$3.24

15

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM)

94101-06800

$1.49

16

WASHER, PLAIN (12MM)

94101-12000

$1.49

17

WASHER, SPRING (12MM)

94111-12000

$1.49

18

HOLDER, HANDLE (LOWER) This part replaces 53130-HA7-670.

53130-HB9-000

Unavailable

18

HOLDER, HANDLE (LOWER) This part replaces 53130-958-000.

53130-HB9-000

Unavailable

19

NUT, STEERING STEM

90304-159-000

$7.02

19

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02
