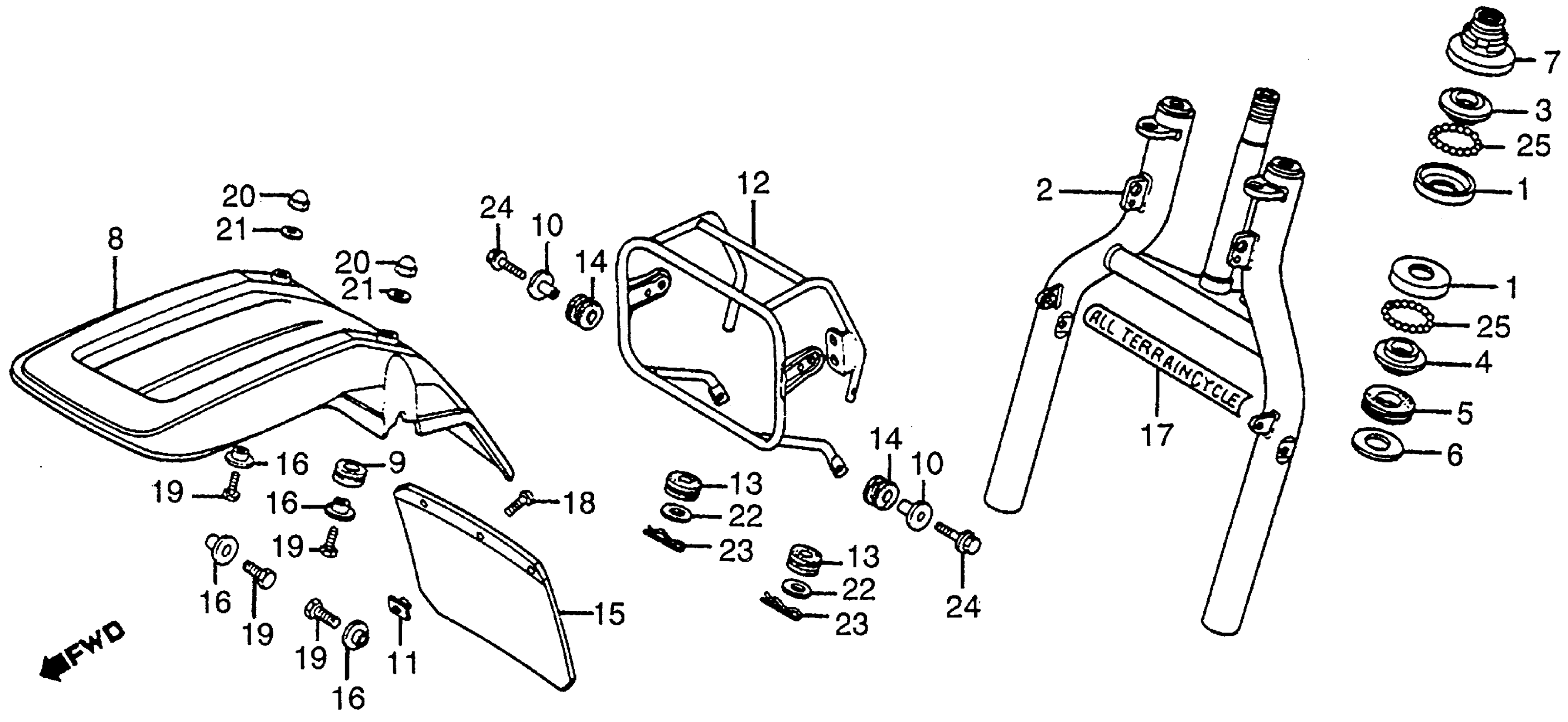

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 FRONT FORK + FRONT FENDER Diagram

#

Description
Price

1

RACE, STEERING BALL This part replaces 50301-041-000.

50301-041-010

$12.39

1

RACE, STEERING TOP BALL

50301-041-010

$12.39

2

FORK, FR. (NOT AVAILABLE) This part replaces 51400-958-680.

51400-958-682

Unavailable

2

FORK, FR. (NOT AVAILABLE) This part replaces 51400-958-681.

51400-958-682

Unavailable

2

FORK, FR. (NOT AVAILABLE)

51400-958-682

Unavailable

3

RACE, STEERING TOP CONE This part replaces 53211-028-000.

53211-028-010

$11.09

3

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

4

RACE, STEERING CONE (LOWER) This part replaces 53212-030-000.

53212-030-010

$10.73

4

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

5

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

6

WASHER, DUST SEAL

53215-GF8-000

$4.17

6

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

7

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$16.83

7

THREAD, STEERING HEAD TOP This part replaces 53220-958-000.

53220-098-670

$16.83

8

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)

61100-958-681ZA

Unavailable

9

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

10

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

10

COLLAR, RR. FENDER

61105-428-000

Unavailable

11

NUT, SPECIAL (6X7)

61304-958-003

$3.24

12

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61311-958-681

Unavailable

13

RUBBER, HEADLIGHT MOUNTING (NOT AVAILABLE)

61315-958-000

Unavailable

14

RUBBER, HEADLIGHT MOUNTING

61315-958-680

$3.38

15

SPLASH GUARD, FR. (NOT AVAILABLE)

61861-958-000

Unavailable

16

WASHER, FR. COVER FIXING

64348-086-000

$3.62

17

EMBLEM, FR. FORK (NOT AVAILABLE) This part replaces 87102-958-000.

87102-958-010

Unavailable

17

EMBLEM, FR. FORK (NOT AVAILABLE)

87102-958-010

Unavailable

18

SCREW, TORUS (6X7)

90102-673-003

Unavailable

19

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

19

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

20

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

20

NUT, CAP (6MM)

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, PLAIN (10MM)

94101-10000

$1.49

23

PIN, LOCK (10MM)

94251-10000

$1.49

24

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

24

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

25

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
