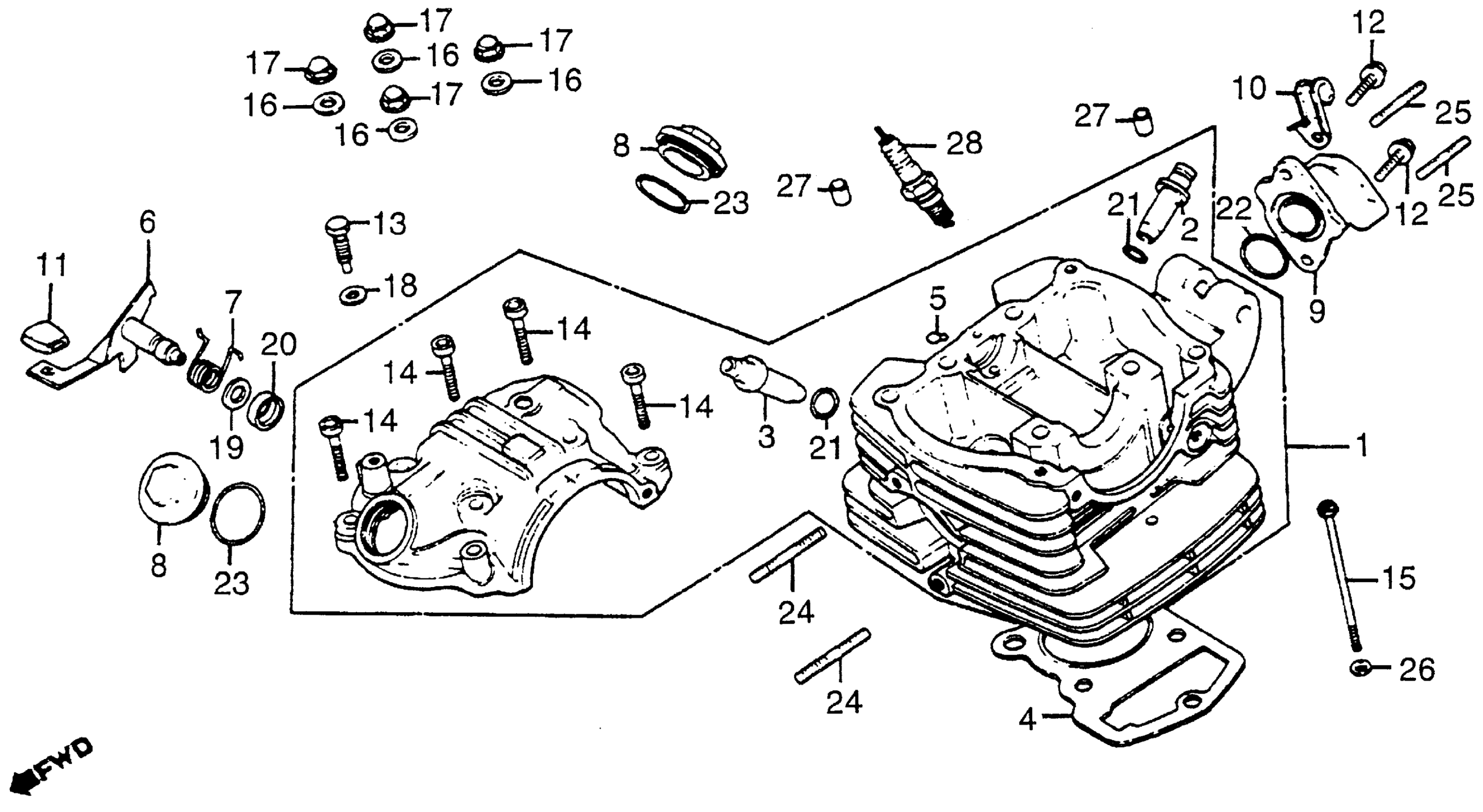

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD This part replaces 12000-427-010.

12000-427-305

Unavailable

1

CYLINDER HEAD This part replaces 12000-427-020.

12000-427-305

Unavailable

1

CYLINDER HEAD

12000-427-305

Unavailable

2

GUIDE, VALVE

12021-365-300

$11.84

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$26.84

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$26.84

4

GASKET, CYLINDER HEAD SET

12251-KT0-P00

$25.58

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-306.

12251-KT0-P00

$25.58

4

GASKET, CYLINDER HEAD SET This part replaces 12251-446-776.

12251-KT0-P00

$25.58

5

RUBBER, OIL SEAL

12271-383-000

$2.92

6

LIFTER, VALVE

12320-958-680

Unavailable

7

SPRING, TORSION

12325-958-680

Unavailable

8

CAP, VALVE ADJ.

12361-383-000

$6.43

9

INSULATOR, CARBURETOR

16210-437-000

$47.33

10

CLIP, IGNITION WIRE

32921-HB6-000

Unavailable

10

CLIP, IGNITION WIRE This part replaces 32921-958-000.

32921-HB6-000

Unavailable

11

GRIP, ADJUSTER

42952-952-000

$4.20

12

BOLT, FLANGE (6X18) This part replaces 90008-413-000.

96001-06018-00

$1.80

12

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

12

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

13

BOLT, DECOMPRESSION PIVOT

90008-706-000

Unavailable

14

BOLT, SOCKET (6MM)

90081-383-000

$5.66

15

BOLT (6X116)

90081-427-000

Unavailable

16

WASHER, SEALING (8MM)

90442-028-000

$1.77

17

NUT, CAP (8MM)

90443-107-000

$2.89

18

WASHER A (6MM)

90478-700-000

$1.49

19

WASHER (12MM)

90531-011-010

$1.51

20

OIL SEAL (12X20X5) (ARAI) This part replaces 91201-427-003.

91205-KF0-003

$3.47

21

O-RING (10X1.6)

91301-200-000

$3.01

22

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

22

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

22

O-RING (33.5X3.0)

91304-HB3-003

$7.70

23

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.92

24

BOLT, STUD (6X35) This part replaces 92700-06035-3E.

92900-06020-3E

$1.51

24

BOLT, STUD (6X35) This part replaces 92700-06035-35.

92900-06020-3E

$1.51

24

BOLT, STUD (6X35)

92900-06020-3E

$1.51

25

BOLT, STUD (6X28) This part replaces 92712-06028.

92712-06028-0B

$1.49

25

BOLT, STUD (6X28)

92712-06028-0B

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49

27

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

28

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.62

28

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.62

28

SPARK PLUG (DR7ES) (NGK) This part replaces 98069-57716.

98069-57719

$2.44

28

SPARK PLUG (DR7ES) (NGK)

98069-57719

$2.44

28

SPARK PLUG (X22ESR-U) (DENSO)

98069-57726

$2.44

28

SPARK PLUG (DR8ES) (NGK) This part replaces 98069-58716.

98069-58719

$2.50

28

SPARK PLUG (DR8ES) (NGK)

98069-58719

$2.50

28

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.54

28

SPARK PLUG (X27ESR-U) (DENSO)

98069-59726

$2.54
