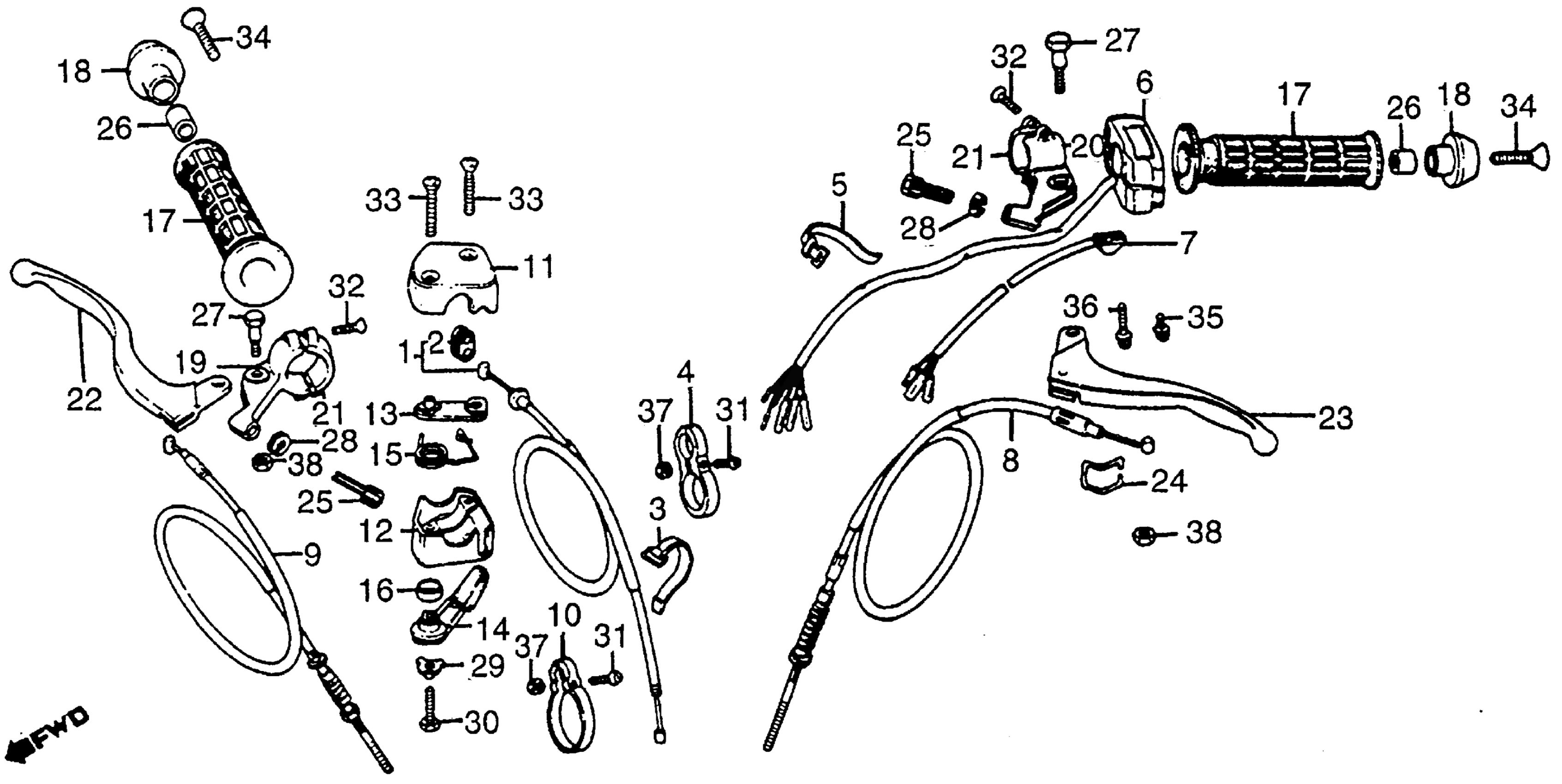

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 CONTROL LEVER + CABLE 83 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-000

Unavailable

1

CABLE, THROTTLE This part replaces 17910-958-033.

17910-VM3-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND, THROTTLE CABLE (NOT AVAILABLE)

17914-958-010

Unavailable

4

GUIDE, THROTTLE CABLE (NOT AVAILABLE)

17916-958-000

Unavailable

5

BAND B1, CABLE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING/ENGINE STOP

35200-958-013

Unavailable

7

SWITCH ASSY., STARTING

35250-958-681

Unavailable

8

CABLE, HAND BRAKE

43460-958-013

Unavailable

9

CABLE, FR. BRAKE

45450-958-681

Unavailable

10

GUIDE, BRAKE CABLE (NOT AVAILABLE) This part replaces 45467-958-010.

45467-958-020

Unavailable

11

COVER, THROTTLE (NOT AVAILABLE)

53141-958-000

Unavailable

12

CASE, THROTTLE (NOT AVAILABLE)

53142-943-010

Unavailable

13

ARM, THROTTLE (NOT AVAILABLE)

53144-958-000

$5.87

14

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

15

SPRING, THROTTLE CONTROL LEVER

53146-943-000

Unavailable

16

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

17

GRIP, HANDLE

53165-958-010

$13.38

18

GUARD, HANDLEBAR END

53167-958-680

$6.40

19

BRACKET, R. CONTROL LEVER

53171-968-000

Unavailable

20

BRACKET, HANDLEBAR (NOT AVAILABLE)

53172-958-000

Unavailable

21

HOLDER, LEVER BRACKET

53173-958-000

$10.59

22

LEVER, R. HANDLEBAR

53175-958-010

Unavailable

23

LEVER, L. HANDLEBAR This part replaces 53178-958-000.

53178-968-405

Unavailable

23

LEVER, L. HANDLEBAR

53178-968-405

Unavailable

24

SPRING, LOCK (NOT AVAILABLE)

53180-918-010

Unavailable

25

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

26

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

27

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

28

NUT, FIXING

90321-315-670

$7.31

28

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

29

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

30

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

30

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

31

SCREW, PAN (4X20)

93500-04020-0A

$1.49

31

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

32

SCREW, PAN (5X18)

93500-05018-0A

$1.49

33

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

34

SCREW, OVAL (6X28)

93700-06028-0G

Unavailable

35

SCREW-WASHER (5X20)

93892-05020-07

$1.49

36

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

37

NUT, HEX. (4MM)

94001-04000-0S

$1.49

38

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

38

NUT, HEX. (6MM)

94001-06200-0S

$1.49
