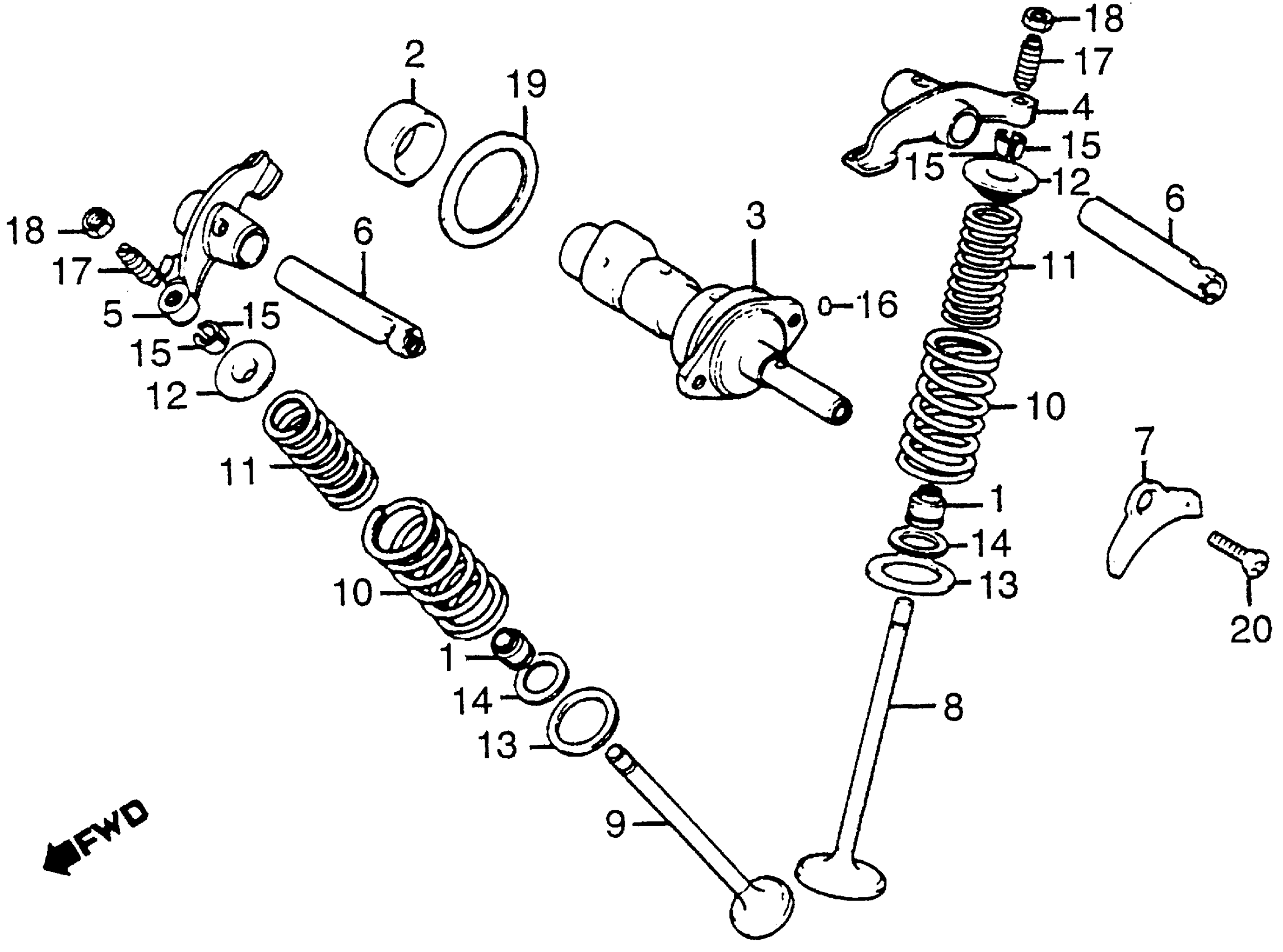

Honda ATC200EA (83) BIG RED, JPN, VIN# JH3TB051-DC203548 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$11.37

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$11.37

2

BUSH, CAMSHAFT

12260-437-000

$39.45

3

CAMSHAFT This part replaces 14101-958-000.

14101-965-000

Unavailable

3

CAMSHAFT

14101-965-000

Unavailable

4

ARM, VALVE ROCKER

14431-383-000

$65.49

5

ARM, EX. VALVE ROCKER This part replaces 14431-958-000.

14431-958-010

Unavailable

5

ARM, EX. VALVE ROCKER

14431-958-010

Unavailable

6

SHAFT, VALVE ROCKER ARM

14451-437-000

$30.13

7

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

8

VALVE, IN.

14711-437-000

$61.51

9

VALVE, EX.

14721-437-000

$67.74

10

SPRING, VALVE (OUTER) (CHUO HATSUJO)

14751-383-003

$15.75

10

SPRING, VALVE (OUTER) (NIPPON)

14751-383-005

$14.82

11

SPRING, VALVE (INNER) (NIPPON) This part replaces 14761-383-003.

14761-383-005

$8.13

11

SPRING, VALVE (INNER) (NIPPON)

14761-383-005

$8.13

12

RETAINER, VALVE SPRING

14771-107-020

$7.99

13

SEAT, VALVE SPRING (OUTER)

14775-107-000

$4.08

14

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.20

15

COTTER, VALVE (SANKO)

14781-107-003

$2.55

15

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.55

16

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

17

SCREW, TAPPET ADJ.

90012-426-000

$5.94

18

NUT, TAPPET ADJ.

90206-250-000

$2.94

19

WASHER, THRUST (34MM)

90451-383-000

$8.91

20

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$1.49

20

SCREW, FLAT (6X20)

93600-06020-0A

$1.49
