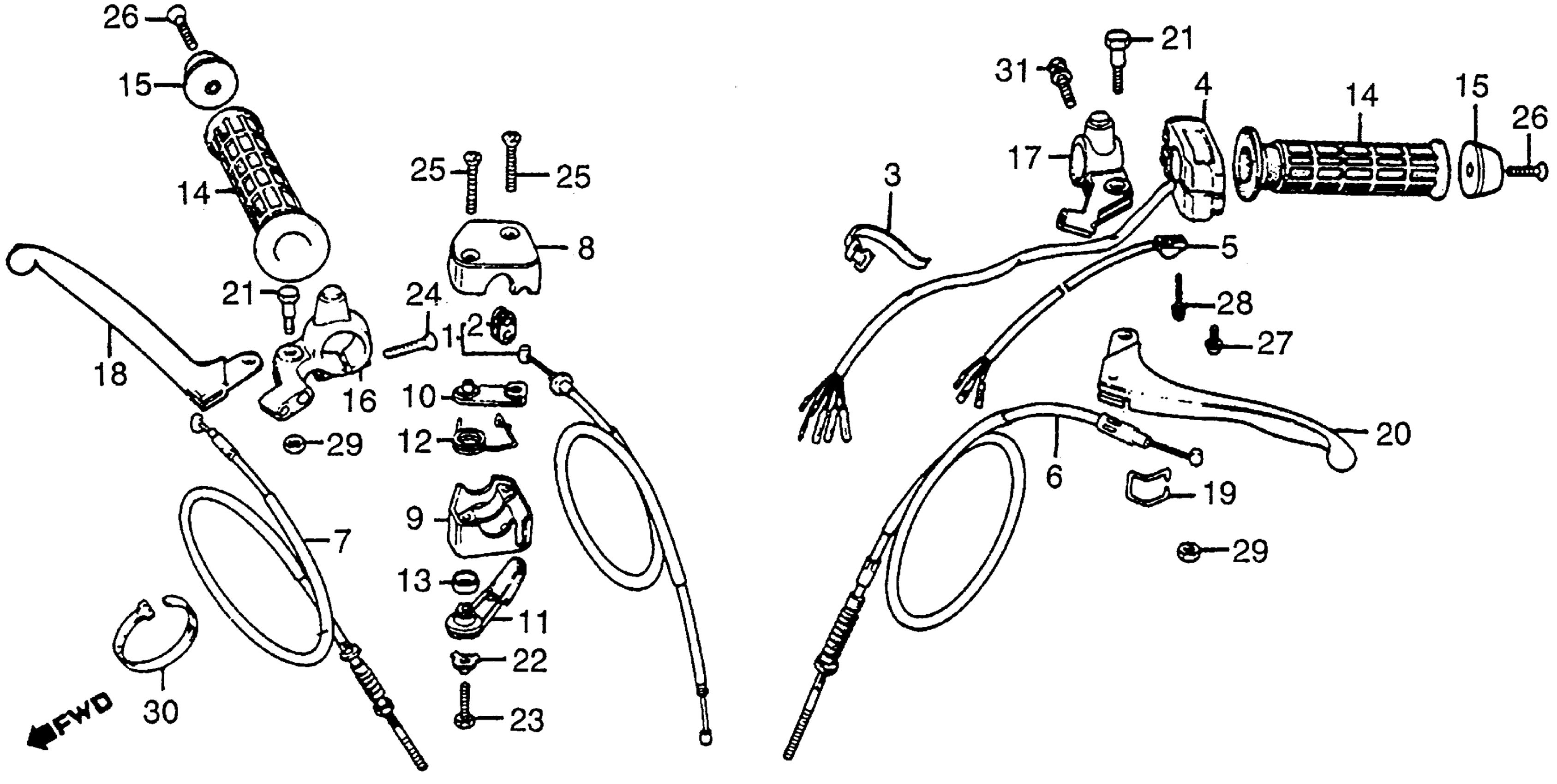

Honda ATC200EA (82) BIG RED, JPN, VIN# JH3TB051-CC133783 TO JH3TB051-CC174752 CONTROL LEVER + CABLE 82 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-VM3-000

Unavailable

1

CABLE, THROTTLE This part replaces 17910-958-680.

17910-VM3-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND B1, CABLE

32161-404-000

$2.23

4

SWITCH ASSY., LIGHTING/ENGINE STOP

35200-958-013

Unavailable

4

SWITCH ASSY., LIGHTING/ENGINE STOP This part replaces 35200-958-681.

35200-958-013

Unavailable

5

SWITCH ASSY., STARTING

35250-958-681

Unavailable

6

CABLE, HAND BRAKE

43460-958-680

Unavailable

7

CABLE, FR. BRAKE

45450-958-306

Unavailable

7

CABLE, FR. BRAKE This part replaces 45450-958-680.

45450-958-306

Unavailable

8

COVER, THROTTLE (NOT AVAILABLE)

53141-958-000

Unavailable

9

CASE, THROTTLE (NOT AVAILABLE)

53142-943-010

Unavailable

10

ARM, THROTTLE (NOT AVAILABLE)

53144-958-000

$5.87

11

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

12

SPRING, THROTTLE CONTROL LEVER

53146-943-000

Unavailable

13

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

14

GRIP, HANDLE This part replaces 53165-958-000.

53165-958-010

$13.38

14

GRIP, HANDLE

53165-958-010

$13.38

15

GUARD, HANDLEBAR END

53167-427-770

Unavailable

15

GUARD, HANDLEBAR END This part replaces 53167-437-670.

53167-427-770

Unavailable

16

BRACKET, R. HANDLEBAR LEVER (NOT AVAILABLE)

53171-958-000

Unavailable

17

BRACKET, HANDLEBAR (NOT AVAILABLE)

53172-918-000

$45.90

18

LEVER, R. HANDLEBAR This part replaces 53175-958-000.

53175-958-010

Unavailable

18

LEVER, R. HANDLEBAR

53175-958-010

Unavailable

19

SPRING, LOCK (NOT AVAILABLE)

53180-918-010

Unavailable

20

LEVER, BRAKE

53190-958-000

Unavailable

21

BOLT, HANDLE LEVER PIVOT This part replaces 90114-268-020.

90114-310-000

$4.90

21

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

22

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

23

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

23

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

24

SCREW, FLAT (6X25)

93600-06025-0A

Unavailable

25

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

26

SCREW, OVAL (6X28)

93700-06028-0G

Unavailable

27

SCREW-WASHER (5X20)

93892-05020-07

$1.49

28

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

29

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

29

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

BAND A2, CABLE

95014-61200

$2.33

31

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

31

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
