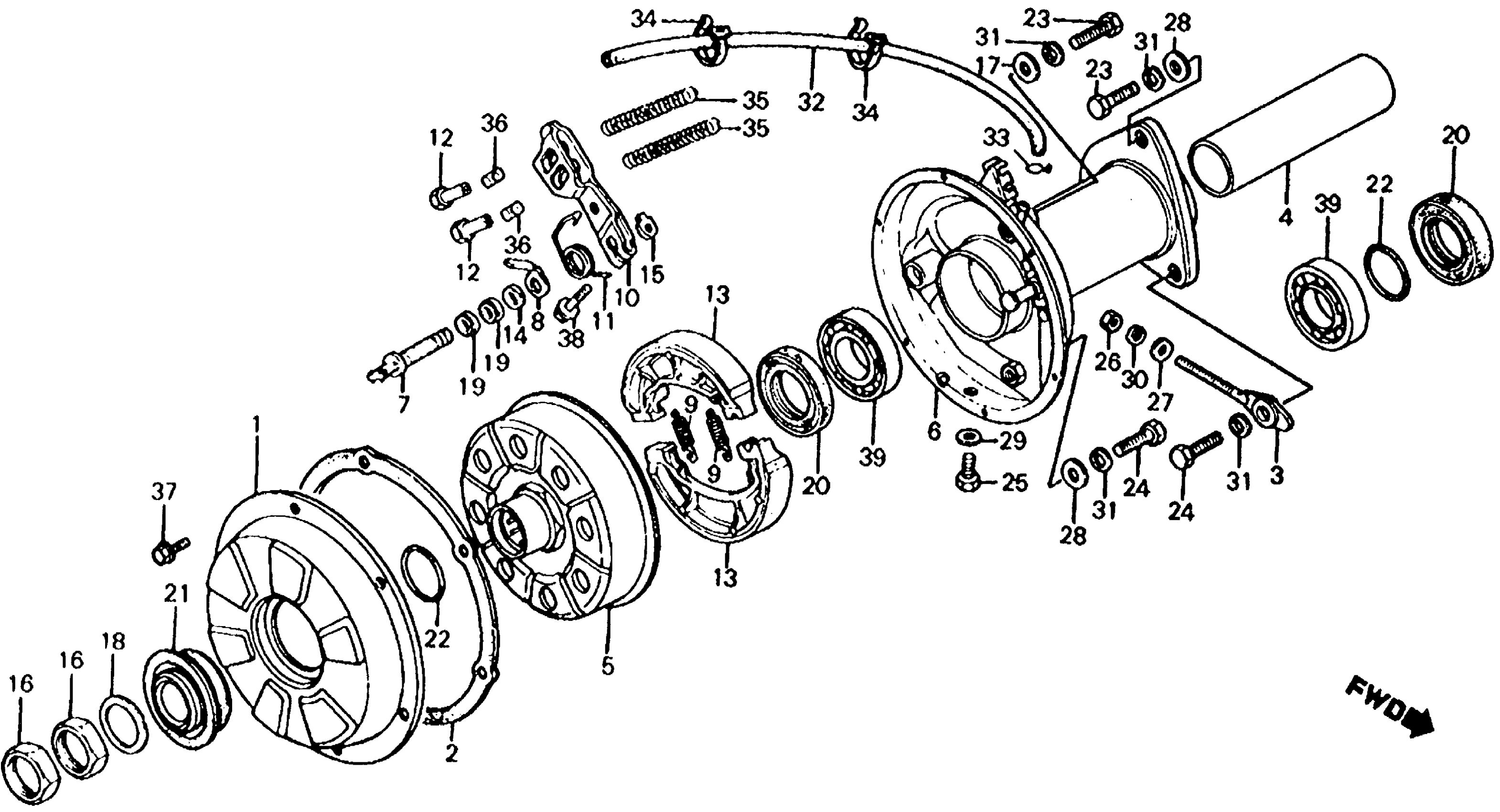

Honda ATC200A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB050-DC200023 ATC200 REAR BRAKE DRUM 82-83 Diagram

#

Description
Price

NI

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 06430-968-405.

06430-HF7-A30

$32.48

NI

SHOE SET, BRAKE This part replaces 431A2-968-681.

06430-HF7-A30

$32.48

1

COVER, RR. BRAKE DRUM (NOT AVAILABLE)

40532-958-010

Unavailable

2

GASKET, BRAKE COVER

40539-958-000

Unavailable

3

ADJUSTER, CHAIN

40543-HB3-000

$10.56

3

ADJUSTER, CHAIN This part replaces 40543-VM6-680.

40543-HB3-000

$10.56

3

ADJUSTER, CHAIN This part replaces 40543-958-010.

40543-HB3-000

$10.56

4

COLLAR, RR. AXLE CENTER (NOT AVAILABLE)

42621-958-000

Unavailable

5

DRUM, RR. BRAKE This part replaces 42622-958-020.

42622-958-030

Unavailable

5

DRUM, RR. BRAKE

42622-958-030

Unavailable

6

HOLDER, BEARING & BRAKE (NOT AVAILABLE)

43100-958-010

Unavailable

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-958-000

Unavailable

8

INDICATOR, BRAKE

43145-958-000

Unavailable

9

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

10

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-958-000.

43410-VM3-680

Unavailable

11

SPRING, RR. BRAKE ARM RETURN

43413-958-000

Unavailable

12

NUT, BRAKE ADJUSTING

43464-958-000

$7.32

13

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

13

SHOE SET, BRAKE This part replaces 45120-303-690.

06430-HF7-A30

$32.48

14

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

15

NUT, FR. BRAKE ARM SETTING

45436-001-000

$1.80

16

NUT, RR. AXLE This part replaces 90307-958-000.

90307-968-000

Unavailable

16

NUT, RR. AXLE

90307-968-000

Unavailable

17

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-358-000

Unavailable

18

WASHER, TAPER

90481-HC4-000

$7.70

18

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

19

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.35

20

DUST SEAL (42X62X7)

91252-958-013

$21.74

20

DUST SEAL (42X62X7) This part replaces 91252-958-014.

91252-958-013

$21.74

21

DUST SEAL (42X62X12.2)

91253-958-013

Unavailable

22

O-RING (31.7X2.4)

91306-MA6-005

$3.44

22

O-RING (31.7X2.4) This part replaces 91307-958-003.

91306-MA6-005

$3.44

23

BOLT, HEX. (12X25) This part replaces 92000-12025-0H.

92101-12025-0H

$2.57

23

BOLT, HEX. (12X25)

92101-12025-0H

$2.57

24

BOLT, HEX. (12X28) This part replaces 92000-12028-0H.

92101-12028-0H

$2.58

24

BOLT, HEX. (12X28)

92101-12028-0H

$2.58

25

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

26

NUT, HEX. (8MM)

94001-08000-0S

$1.49

26

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

26

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

26

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

27

WASHER, PLAIN (8MM)

94101-08800

$1.93

28

WASHER, PLAIN (12MM)

94101-12800

$1.49

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

30

WASHER, SPRING (8MM)

94111-08800

$1.49

31

WASHER, SPRING (12MM)

94111-12800

$1.49

32

BULK HOSE, FUEL (5.5X8000) (5.5X520)

95001-55008-60M

$83.44

33

CLIP, TUBE (B10)

95002-02100

$1.90

34

BAND B1, CABLE

32161-404-000

$2.23

34

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

35

SPRING A, BRAKE ROD

95014-73100

$1.49

36

JOINT, BRAKE ARM

95015-32001

$1.49

37

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

37

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

38

BOLT, FLANGE (6X28) This part replaces 95700-06028-08.

95701-06028-08

$2.08

38

BOLT, FLANGE (6X28)

95701-06028-08

$2.08

39

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
