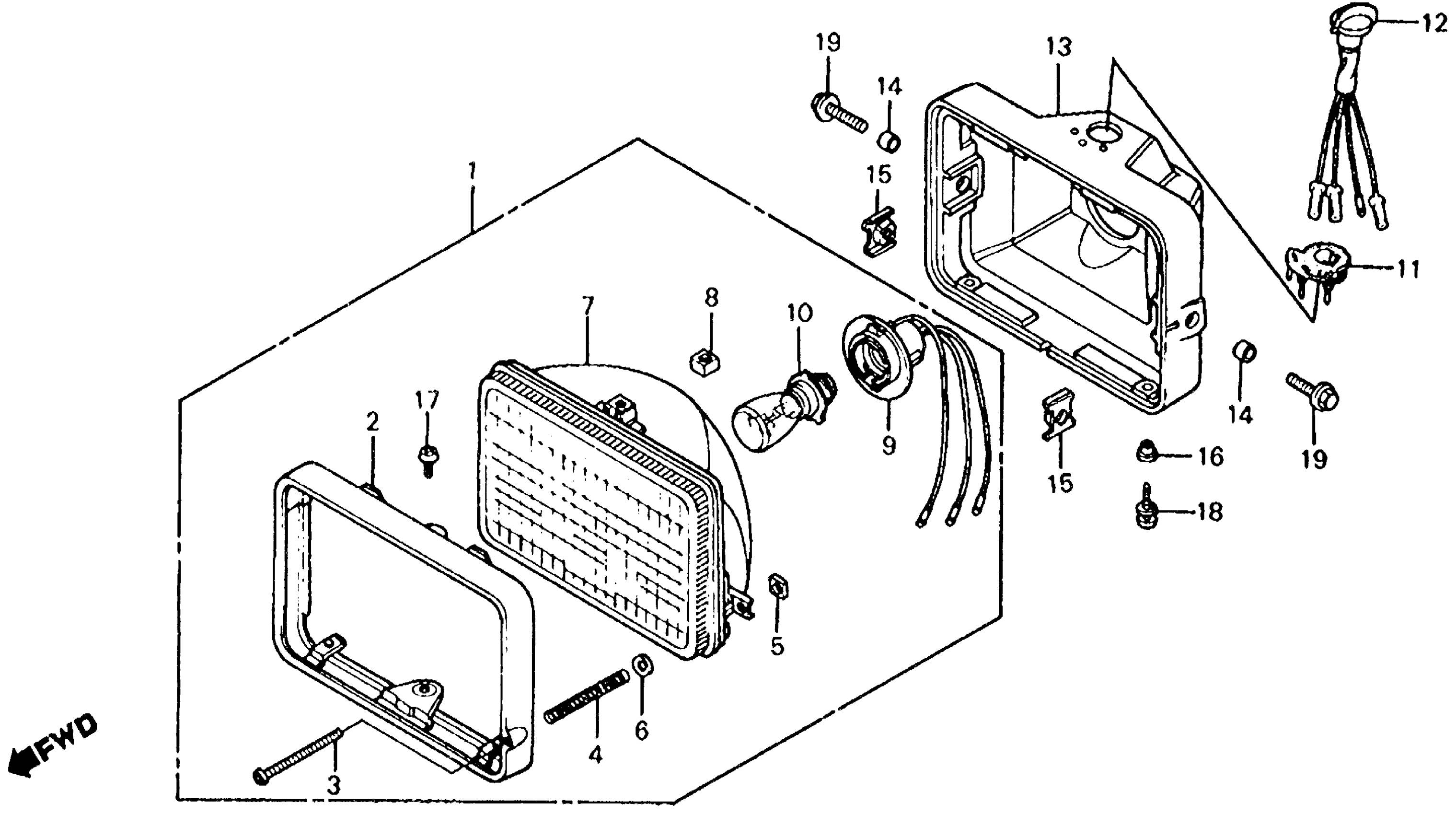

Honda ATC200A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB050-DC200023 ATC200 HEADLIGHT 81-83 Diagram

#

Description
Price

1

HEADLIGHT ASSY.

33100-958-023

Unavailable

2

RIM, HEADLIGHT This part replaces 33101-958-003.

33101-471-003

Unavailable

3

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT (NOT AVAILABLE)

33120-958-003

Unavailable

8

NUT, UNIT HOLDER

33128-471-003

$1.62

9

SOCKET ASSY., HEADLIGHT

33130-958-013

Unavailable

10

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-HB6-003.

34901-HC3-003

$10.57

10

BULB, HEADLIGHT (12V45/45W) (STANLEY)

34901-HC3-003

$10.57

10

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-323-750.

34901-HC3-003

$10.57

13

CASE, HEADLIGHT *R109* (PASSION RED)

61301-958-023ZA

Unavailable

14

COLLAR, HEADLIGHT CASE

61302-471-000

Unavailable

15

NUT, HEADLIGHT CASE

61303-105-000

$3.81

16

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

17

SCREW, PAN (5X8)

93500-05008-0H

$1.49

18

SCREW-WASHER (5X16)

93892-05016-00

$1.49

19

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

19

BOLT, FLANGE (8X16) This part replaces 95800-08016-00.

95701-08016-00

$1.80

19

BOLT, FLANGE (8X16) This part replaces 95801-08016-00.

95701-08016-00

$1.80
