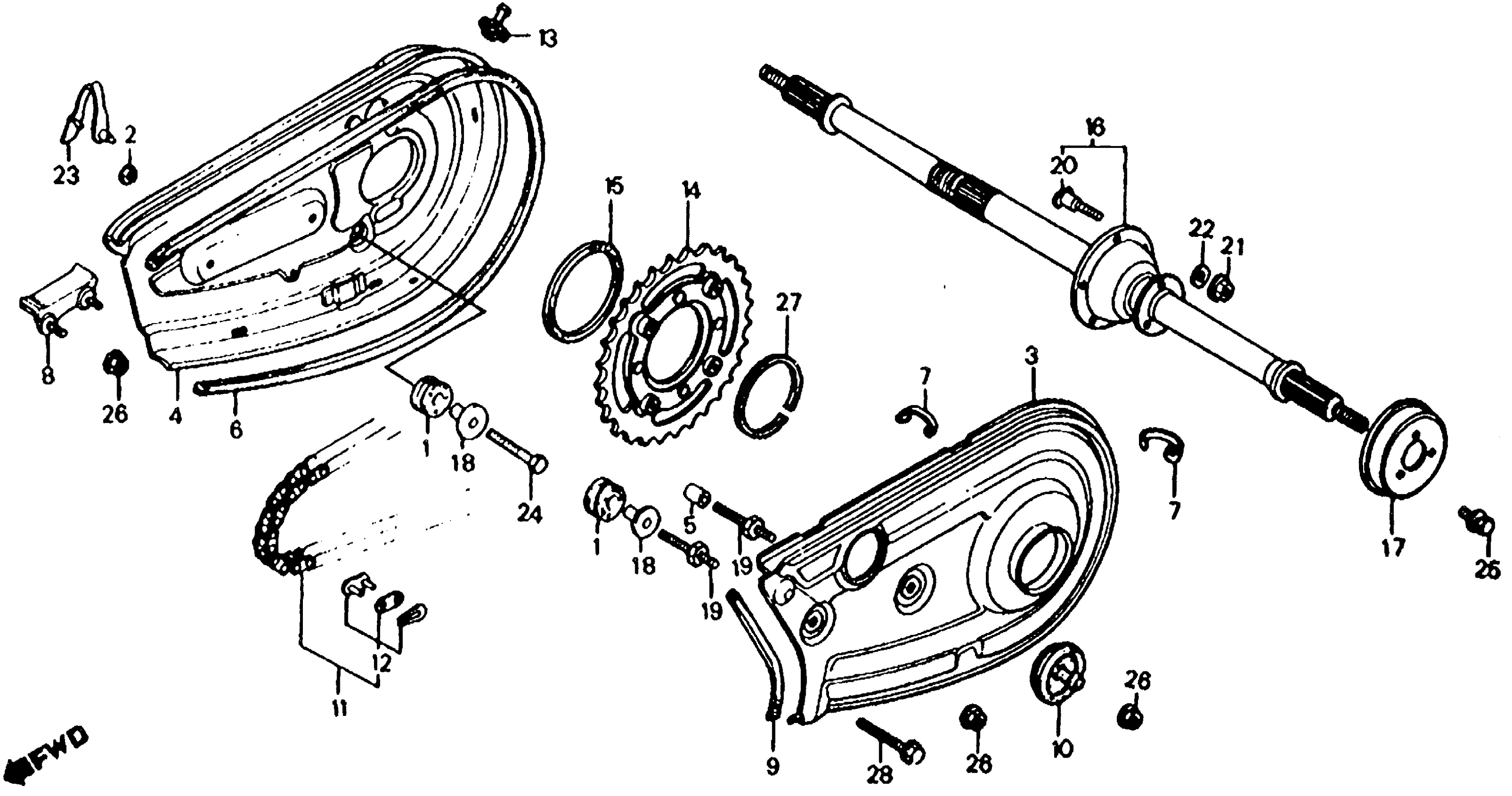

Honda ATC200A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB050-DC200023 ACT200 REAR WHEEL AXLE + CHAIN CASE 83 Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

2

PLUG, CHAIN GUARD

40514-333-000

$2.57

3

CASE, CHAIN (OUTER) (NOT AVAILABLE) This part replaces 40521-958-000.

40521-VM3-680

Unavailable

4

CASE, INSIDE CHAIN (NOT AVAILABLE) This part replaces 40522-958-681.

40522-VM3-680

Unavailable

5

COLLAR, CHAIN GUARD (NOT AVAILABLE)

40523-958-000

Unavailable

6

SEAL, INSIDE CHAIN CASE (NOT AVAILABLE)

40524-958-000

Unavailable

7

SPRING, CHAIN GUARD SETTING This part replaces 40525-958-000.

40525-969-680

Unavailable

7

SPRING, CHAIN GUARD SETTING

40525-969-680

Unavailable

8

GUIDE, CHAIN (NOT AVAILABLE)

40526-958-000

Unavailable

9

SEAL, CHAIN GUARD (OUTER) (NOT AVAILABLE)

40527-958-000

Unavailable

10

CAP, CHAIN

40529-958-010

Unavailable

11

CHAIN, DRIVE (NOT AVAILABLE)

405W3-HB9-505

Unavailable

11

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HA5-003.

405W3-HB9-505

Unavailable

11

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-HA5-006.

405W3-HB9-505

Unavailable

11

CHAIN, DRIVE (NOT AVAILABLE) This part replaces 40530-958-013.

405W3-HB9-505

Unavailable

12

MASTER LINK (DAIDO)

40531-HB5-671

Unavailable

12

MASTER LINK (DAIDO) This part replaces 40531-958-671.

40531-HB5-671

Unavailable

13

CAP, CHAIN

40545-958-000

Unavailable

14

SPROCKET ASSY., FINAL DRIVEN

41200-958-000

Unavailable

15

DUST SEAL B, SPROCKET (NOT AVAILABLE)

41207-958-000

Unavailable

16

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-958-020

Unavailable

17

PLATE, SHIELD (NOT AVAILABLE)

42327-958-000

Unavailable

18

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

18

COLLAR, RR. FENDER

61105-428-000

Unavailable

19

BOLT, SPECIAL (6X22) (NOT AVAILABLE)

90102-958-000

Unavailable

20

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

21

NUT, FLANGE (8MM)

90309-428-731

$3.35

22

WASHER, PLAIN (8X28) (NOT AVAILABLE)

90501-958-000

Unavailable

23

STRAP B, CABLE (125MM) (BLUE)

90669-671-003

Unavailable

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

25

BOLT-WASHER (6X8)

93492-06008-08

Unavailable

26

NUT, FLANGE (6MM)

94050-06080

$1.49

27

RING, SNAP (95MM) (NOT AVAILABLE)

90602-958-000

Unavailable

27

RING, SNAP (95MM) (NOT AVAILABLE) This part replaces 94564-95100.

90602-958-000

Unavailable

28

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

28

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
