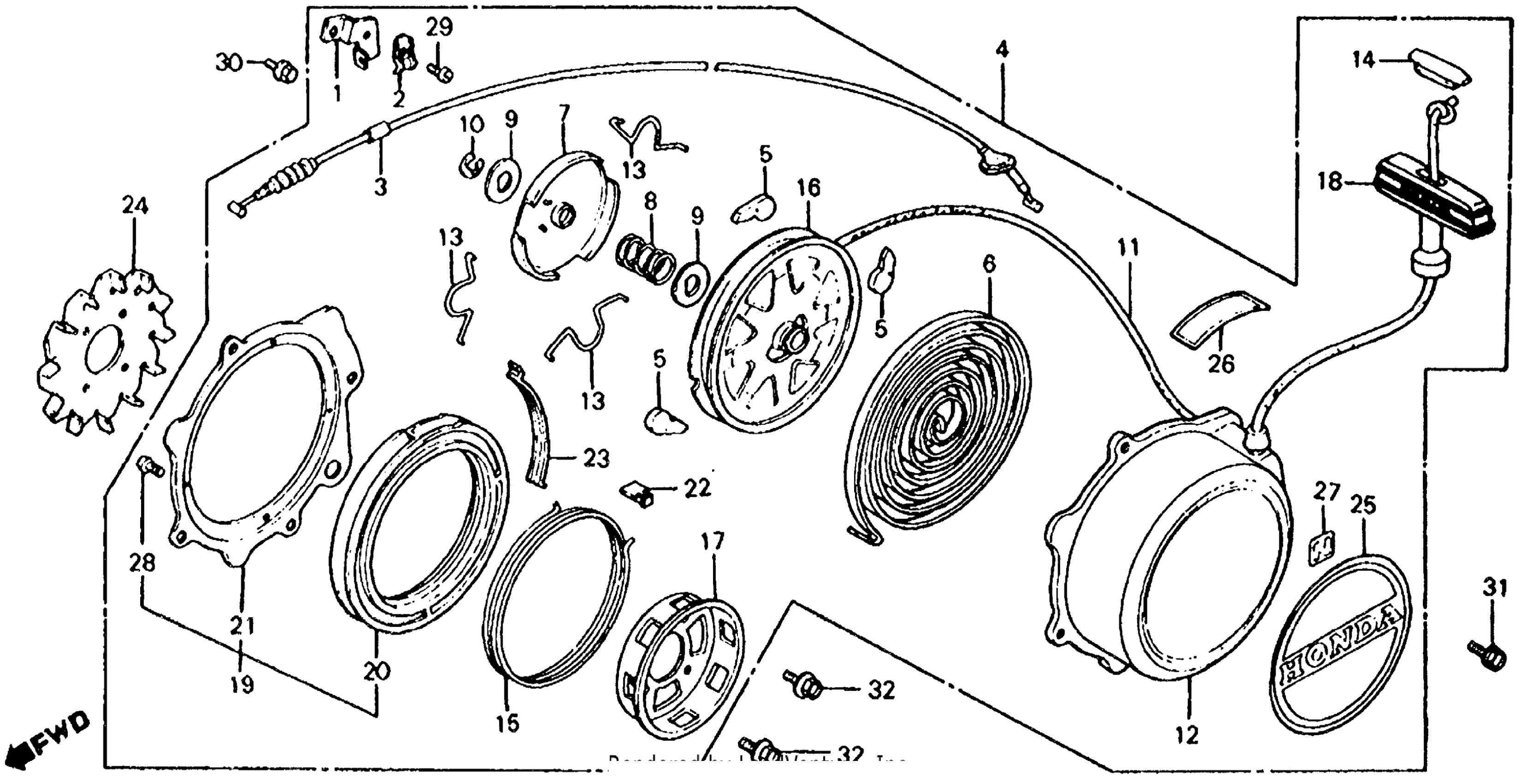

Honda ATC200A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB050-DC200023 185S/200RECOIL STARTER 82-83 Diagram

#

Description
Price

1

STAY, CABLE HOLDER (NOT AVAILABLE)

12327-958-004

Unavailable

2

HOLDER, CONTROL CABLE

16582-883-300

$3.39

3

CABLE, DECOMPRESSION

28291-958-030

Unavailable

4

STARTER ASSY., RECOIL

28400-958-084

Unavailable

5

RATCHET, STARTER

28401-918-000

Unavailable

6

SPRING, RECOIL STARTER

28402-958-004

Unavailable

7

PLATE, FRICTION

28403-918-000

Unavailable

8

SPRING, FRICTION

28404-918-000

Unavailable

9

WASHER, FRICTION

28405-943-004

Unavailable

10

E-RING

28406-918-000

Unavailable

11

ROPE, RECOIL STARTER

28407-958-004

Unavailable

12

CASE, RECOIL STARTER (NOT AVAILABLE)

28410-958-010

Unavailable

13

SPRING, SETTING

28413-918-000

$7.43

14

CAP, KNOB

28414-958-004

Unavailable

15

SPRING, FRICTION

28418-958-020

Unavailable

16

PULLEY, RECOIL STARTER

28420-958-010

Unavailable

17

PULLEY, STARTER

28430-958-000

Unavailable

18

KNOB, STARTER

28461-958-003

Unavailable

19

CASE, HOOK (NOT AVAILABLE)

28480-958-020

Unavailable

20

RING, HOOK CASE This part replaces 28481-958-010.

28481-958-020

Unavailable

20

RING, HOOK CASE

28481-958-020

Unavailable

21

PLATE, RECOIL GASKET

28482-958-013

Unavailable

22

RUBBER, HOOK PLATE

28484-958-010

Unavailable

23

PLATE, HOOK This part replaces 28486-958-010.

28486-958-020

Unavailable

23

PLATE, HOOK

28486-958-020

Unavailable

24

FAN, ALTERNATOR (NOT AVAILABLE)

31130-958-000

Unavailable

25

EMBLEM, RECOIL STARTER (A.M.) (NOT AVAILABLE)

87101-958-010

Unavailable

26

LABEL, NEUTRAL CAUTION (NOT AVAILABLE)

87103-957-000

Unavailable

27

LABEL, NEUTRAL (NOT AVAILABLE)

87105-958-000

Unavailable

28

SCREW, PAN (4X6)

93500-04006-0A

$1.49

29

SCREW, PAN (5X10)

93500-05010-0A

$1.49

30

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

30

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) | Use up to Engine SN 2227261 This part replaces 95700-06012-08.

95701-06012-08

$1.67

31

BOLT, FLANGE (6X12) | Use up to Engine SN 2227261

95701-06012-08

$1.67

31

BOLT, FLANGE (6X12) | Use from Engine SN 2227262 This part replaces 95700-06012-00.

95701-06012-00

$1.62

31

BOLT, FLANGE (6X12) | Use from Engine SN 2227262

95701-06012-00

$1.62

32

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.72

32

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
