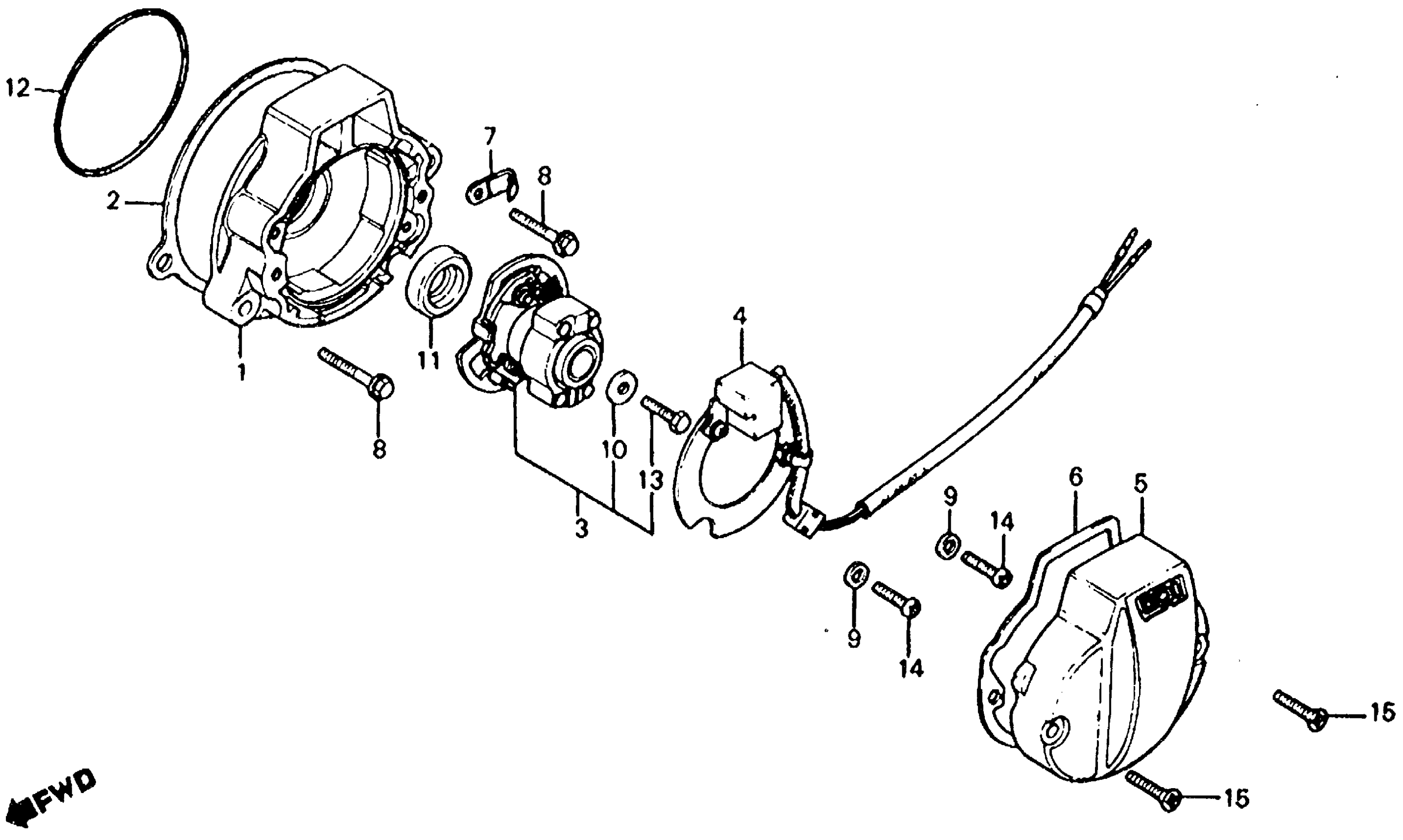

Honda ATC185SA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB010-DC300013 PULSE GENERATOR Diagram

#

Description
Price

1

BASE, PULSE GENERATOR

12332-958-000

Unavailable

2

GASKET This part replaces 12339-KT0-710.

12339-KT0-712

$7.04

2

GASKET This part replaces 12339-437-003.

12339-KT0-712

$7.04

2

GASKET This part replaces 12339-437-306.

12339-KT0-712

$7.04

3

ADVANCER ASSY., SPARK This part replaces 30220-427-154.

30220-427-164

Unavailable

3

ADVANCER ASSY., SPARK

30220-427-164

Unavailable

4

GENERATOR ASSY., PULSE

30300-958-010

Unavailable

5

COVER, PULSE GENERATOR

30370-KA2-000

Unavailable

6

GASKET, PULSE GENERATOR COVER This part replaces 30372-KA2-000.

30372-KT0-710

$5.37

6

GASKET, PULSE GENERATOR COVER

30372-KT0-710

$5.37

7

CLAMP, CABLE

32111-323-000

$3.98

8

BOLT, FLANGE (6X25)

96000-06025-00

$2.00

8

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

9

WASHER (5MM)

90482-028-000

$2.09

10

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

11

OIL SEAL (15X25X7) This part replaces 91202-107-003.

91203-965-003

$6.41

11

OIL SEAL (15X25X7)

91203-965-003

$6.41

12

O-RING (75X2.5)

91301-107-000

$4.87

13

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

13

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

15

SCREW, OVAL (5X20)

93700-05020-0B

$1.49
