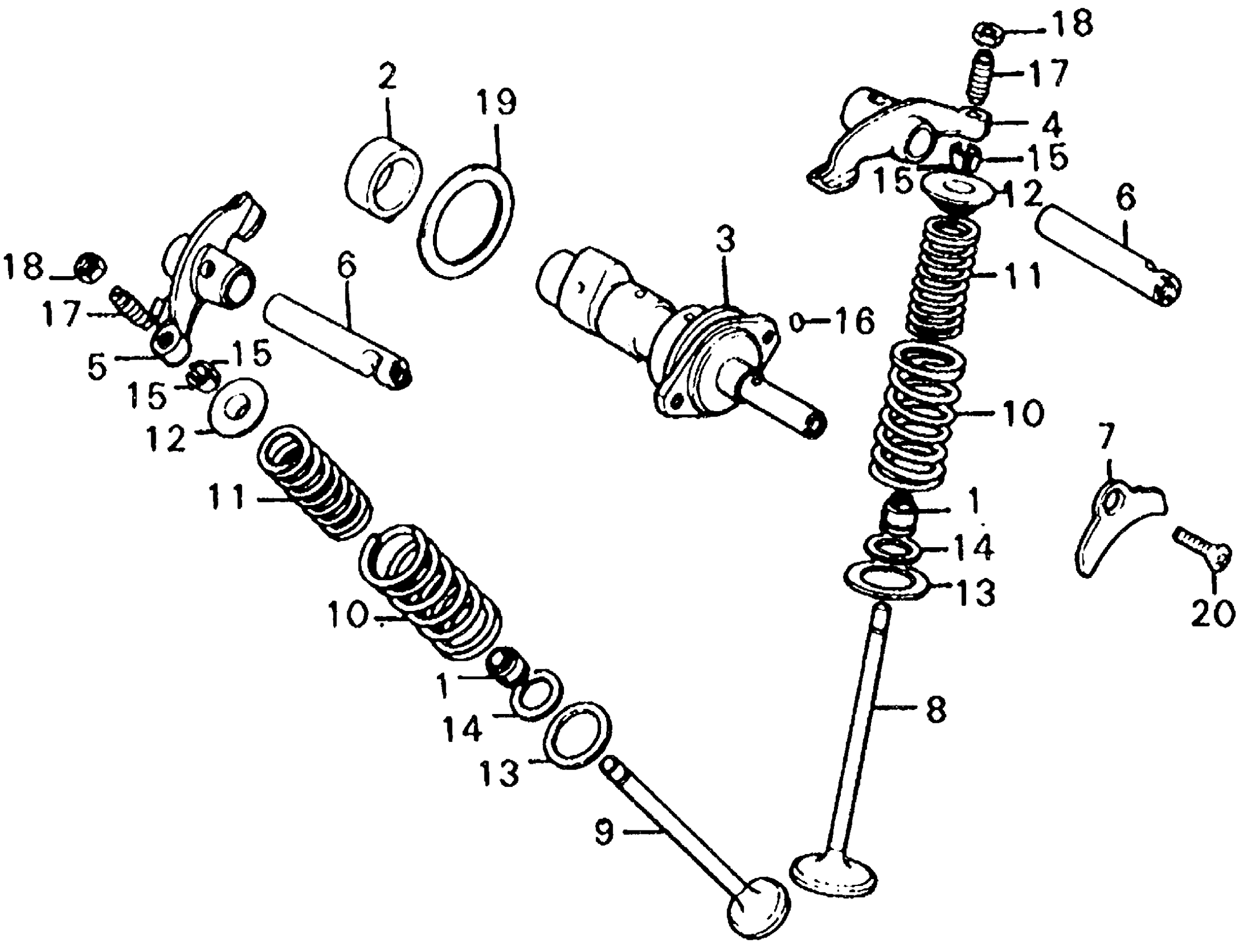

Honda ATC185SA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB010-DC300013 CAMSHAFT + VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (ARAI) This part replaces 12208-MC0-003.

12208-413-003

$10.21

1

SEAL, VALVE STEM (ARAI)

12208-413-003

$10.21

1

SEAL, VALVE STEM (ARAI) This part replaces 12209-107-760.

12208-413-003

$10.21

2

BUSH, CAMSHAFT

12260-437-000

$35.42

3

CAMSHAFT This part replaces 14101-958-000.

14101-965-000

Unavailable

3

CAMSHAFT

14101-965-000

Unavailable

4

ARM, VALVE ROCKER

14431-383-000

$59.62

5

ARM, EX. VALVE ROCKER This part replaces 14431-958-000.

14431-958-010

Unavailable

5

ARM, EX. VALVE ROCKER

14431-958-010

Unavailable

6

SHAFT, VALVE ROCKER ARM

14451-437-000

$29.12

7

PLATE, VALVE ROCKER ARM SHAFT SETTING

14456-383-000

Unavailable

8

VALVE, IN.

14711-437-000

$55.22

9

VALVE, EX.

14721-437-000

$60.83

10

SPRING, VALVE (OUTER) (CHUO HATSUJO)

14751-383-003

$14.35

10

SPRING, VALVE (OUTER) (NIPPON)

14751-383-005

$13.31

11

SPRING, VALVE (INNER) (NIPPON) This part replaces 14761-383-003.

14761-383-005

$7.56

11

SPRING, VALVE (INNER) (NIPPON)

14761-383-005

$7.56

12

RETAINER, VALVE SPRING

14771-107-020

$7.44

13

SEAT, VALVE SPRING (OUTER)

14775-107-000

$3.80

14

SEAT, VALVE SPRING (INNER)

14776-107-010

$2.00

15

COTTER, VALVE (SANKO)

14781-107-003

$2.43

15

COTTER, VALVE (SANKO) This part replaces 14781-107-020.

14781-107-003

$2.43

16

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.43

17

SCREW, TAPPET ADJ.

90012-426-000

$6.48

18

NUT, TAPPET ADJ.

90206-250-000

$2.80

19

WASHER, THRUST (34MM)

90451-383-000

$8.00

20

SCREW, FLAT (6X20) This part replaces 93600-06020.

93600-06020-0A

$0.90

20

SCREW, FLAT (6X20)

93600-06020-0A

$0.90
