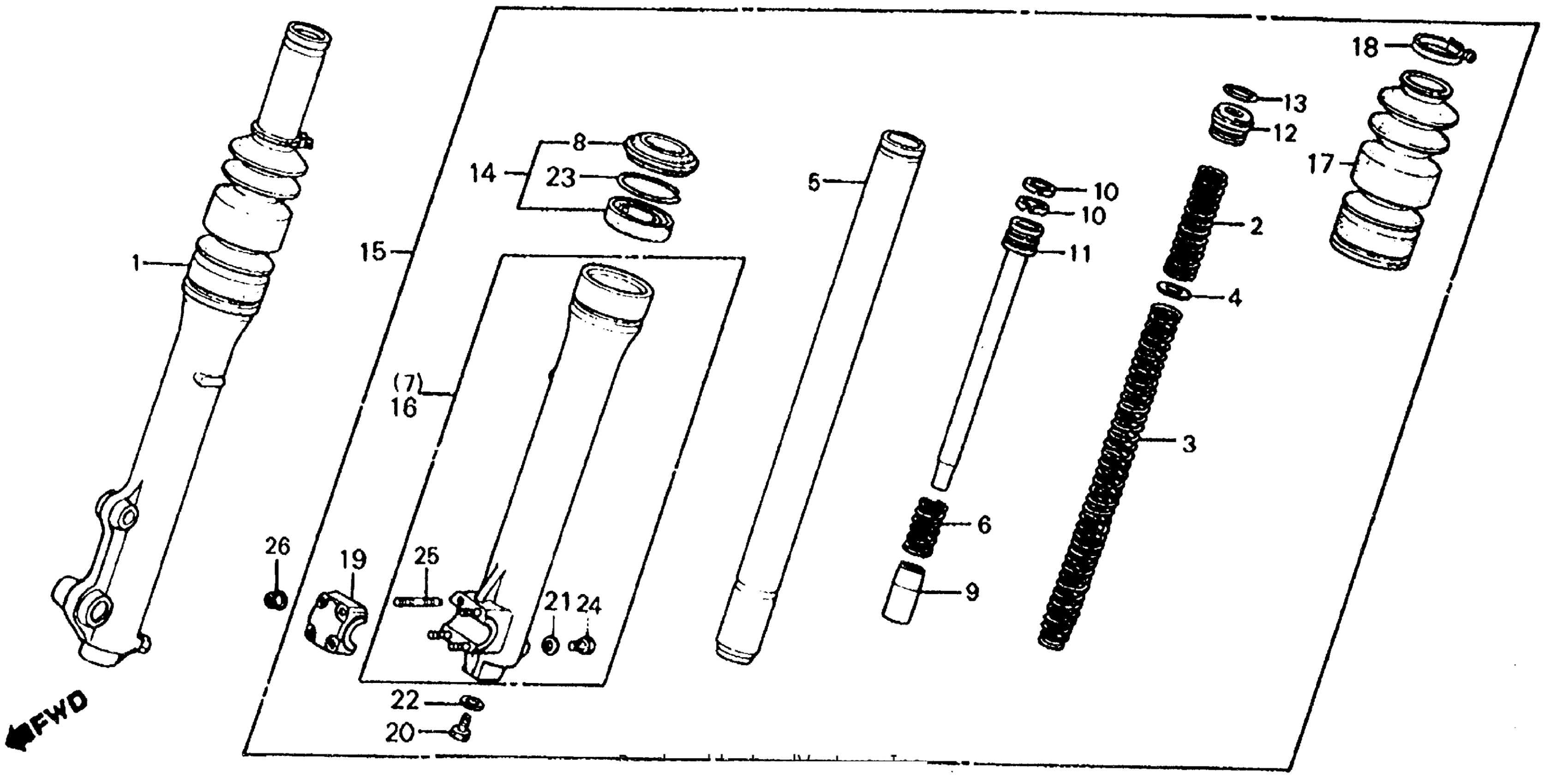

Honda ATC185SA (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB010-DC300013 185S/200FRONT SHOCK ABSORBER ASSY 83 Diagram

#

Description
Price

1

FORK, R. FR. This part replaces 51400-958-672ZA.

51400-958-672

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-958-003

Unavailable

3

SPRING B, FR. FORK

51402-958-003

Unavailable

4

PLATE, SPRING JOINT (NOT AVAILABLE)

51403-961-003

Unavailable

5

PIPE, FR. FORK

51410-958-003

Unavailable

6

SPRING, FR. FORK REBOUND

51412-369-000

$4.94

7

CASE, R. (LOWER)

51420-958-672

Unavailable

8

DUST SEAL

51425-961-013

$15.33

9

PIECE, OIL LOCKING This part replaces 51432-388-003.

51432-447-731

$27.42

9

PIECE, OIL LOCKING

51432-447-731

$27.42

10

RING, PISTON

51437-413-003

$7.96

11

PIPE, SEAT

51440-958-003

Unavailable

12

SEAT B, SPRING (NOT AVAILABLE)

51454-958-003

Unavailable

13

RING, STOPPER

51456-355-003

$7.08

14

SEAL SET, FR. FORK

51490-GS9-305

$36.24

14

SEAL SET, FR. FORK This part replaces 51490-961-305.

51490-GS9-305

$36.24

15

SHOCK ABSORBER ASSY., L. FR. *R109* (PASSION RED) (NOT AVAILABLE)

51500-958-672

Unavailable

15

SHOCK ABSORBER ASSY., L. FR. *R109* (PASSION RED) (NOT AVAILABLE) This part replaces 51500-958-672ZA.

51500-958-672

Unavailable

16

CASE, L. (LOWER)

51520-958-672

Unavailable

17

BOOT, FR. FORK

51611-958-003

Unavailable

18

BAND, FR. FORK BOOT

51612-428-900

$10.91

19

HOLDER, AXLE

51634-MA0-003

$37.46

20

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

21

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

22

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

23

RING, OIL SEAL STOPPER

90601-GF5-731

$5.37

23

RING, OIL SEAL STOPPER This part replaces 90601-958-003.

90601-GF5-731

$5.37

24

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

24

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

25

BOLT, STUD (6X25) This part replaces 92700-06035-0E.

92900-06025-0E

$1.49

25

BOLT, STUD (6X25)

92900-06025-0E

$1.49

26

NUT, FLANGE (6MM)

94050-06000

$1.49
