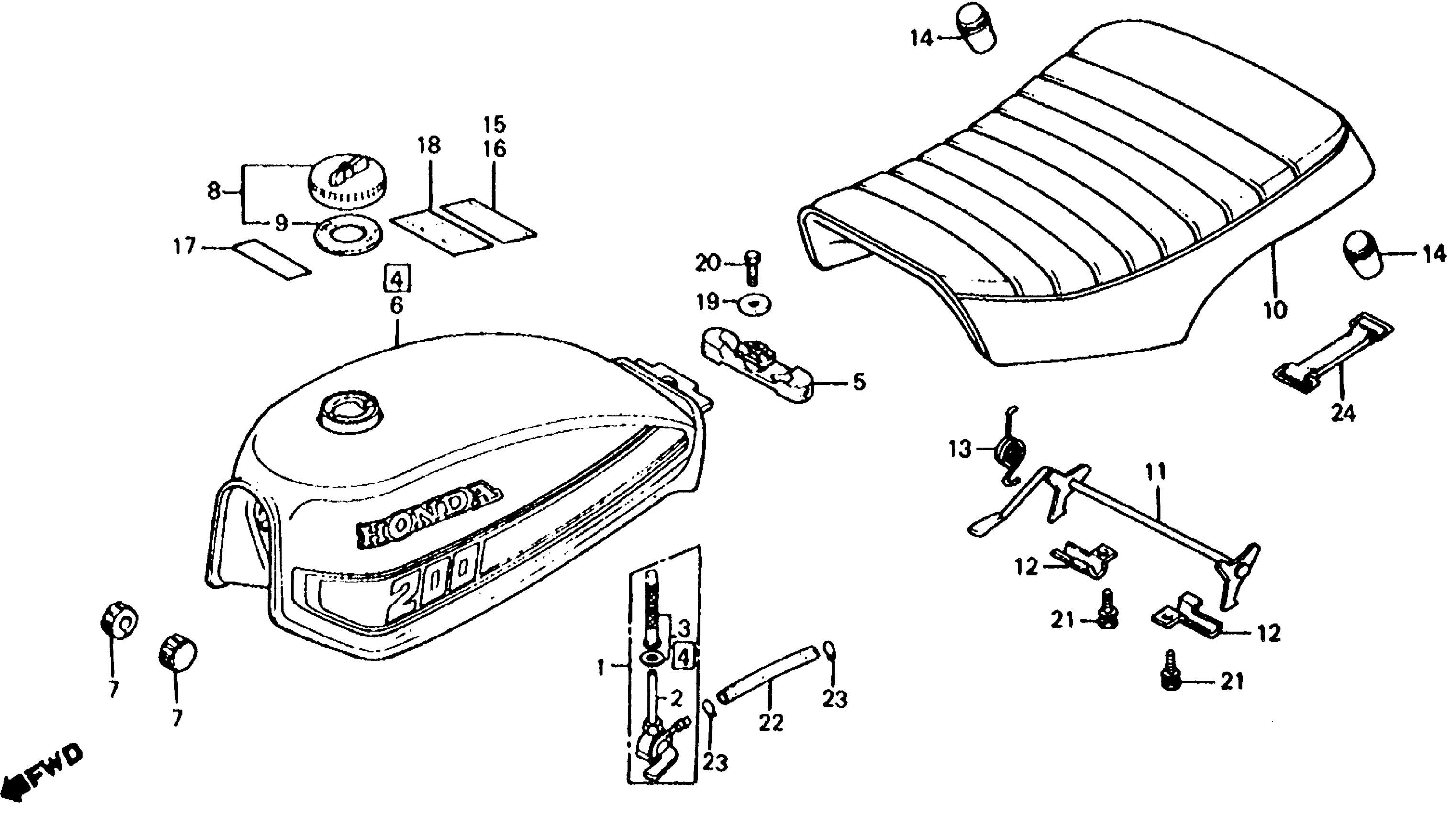

Honda ATC185A (80) ALL TERRAIN CYCLE, JPN, VIN# TB01-2000013 TO TB01-2027332 185/200 FUEL TANK + SEAT 80-82 Diagram

#

Description
Price

1

PETCOCK ASSY. | Use up to Frame SN 2013763 This part replaces 16950-149-015.

16950-149-025

$74.04

1

PETCOCK ASSY.

16950-149-025

$74.04

2

BODY SET, PETCOCK (HONDA KIKAKI) | Use up to Frame SN 2013763 This part replaces 16951-149-015.

16951-149-025

Unavailable

2

BODY SET, PETCOCK (HONDA KIKAKI)

16951-149-025

Unavailable

3

SCREEN SET, FUEL STRAINER

16952-GB2-721

Unavailable

3

SCREEN SET, FUEL STRAINER This part replaces 16952-124-830.

16952-GB2-721

Unavailable

5

RUBBER, RR. TANK

17509-437-000

Unavailable

6

TANK SUB-ASSY., FUEL *R23* (TAHITIAN RED) (NOT AVAILABLE)

17520-958-000ZA

Unavailable

7

RUBBER, FR. TANK

17611-437-000

$6.63

8

CAP, FUEL FILLER This part replaces 17620-943-003.

17620-165-643

$42.47

8

CAP, FUEL FILLER This part replaces 17620-165-642.

17620-165-643

$42.47

8

CAP, FUEL FILLER This part replaces 17620-958-003.

17620-165-643

$42.47

8

CAP, FUEL FILLER This part replaces 17620-958-013.

17620-165-643

$42.47

9

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

9

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

10

SEAT (NOT AVAILABLE) This part replaces 77100-958-003.

77100-958-023

Unavailable

10

SEAT (NOT AVAILABLE) This part replaces 77100-958-013.

77100-958-023

Unavailable

10

SEAT (NOT AVAILABLE) This part replaces 77100-958-405.

77100-958-023

Unavailable

11

LEVER, SEAT LOCK

77105-958-000

Unavailable

12

BRACKET, LOCK LEVER

77106-958-000

Unavailable

13

SPRING, SEAT LOCK

77107-958-000

$4.30

15

LABEL, DECOMPRESSION (NOT AVAILABLE)

87135-958-000

Unavailable

17

PLATE, CAUTION (NOT AVAILABLE)

87505-918-010

Unavailable

18

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680B.

87560-375-680ZE

Unavailable

18

MARK, DRIVE CAUTION (TYPEB) This part replaces 87560-375-680ZB.

87560-375-680ZE

Unavailable

18

MARK, DRIVE CAUTION (TYPEB)

87560-375-680ZE

Unavailable

19

WASHER, EX. DUCT (NOT AVAILABLE)

90504-567-000

Unavailable

20

BOLT, HEX. (6X12) This part replaces 92000-06012-0H.

92101-06012-0H

$1.49

20

BOLT, HEX. (6X12) This part replaces 92000-06012-08.

92101-06012-0H

$1.49

20

BOLT, HEX. (6X20)

92101-06012-0H

$1.49

21

BOLT-WASHER (6X12)

93402-06012-08

$1.62

21

BOLT-WASHER (6X12) This part replaces 93412-06012-08.

93402-06012-08

$1.62

21

BOLT-WASHER (6X12) This part replaces 93492-06012-08.

93402-06012-08

$1.62

22

BULK HOSE, FUEL (4.5X3000) (4.5X120)

95001-45003-60M

$36.67

23

CLIP, TUBE (B8)

95002-02080

$1.80

24

BAND A, BATTERY This part replaces 95012-11000.

95012-11001

$2.92

24

BAND A, BATTERY

95012-11001

$2.92
