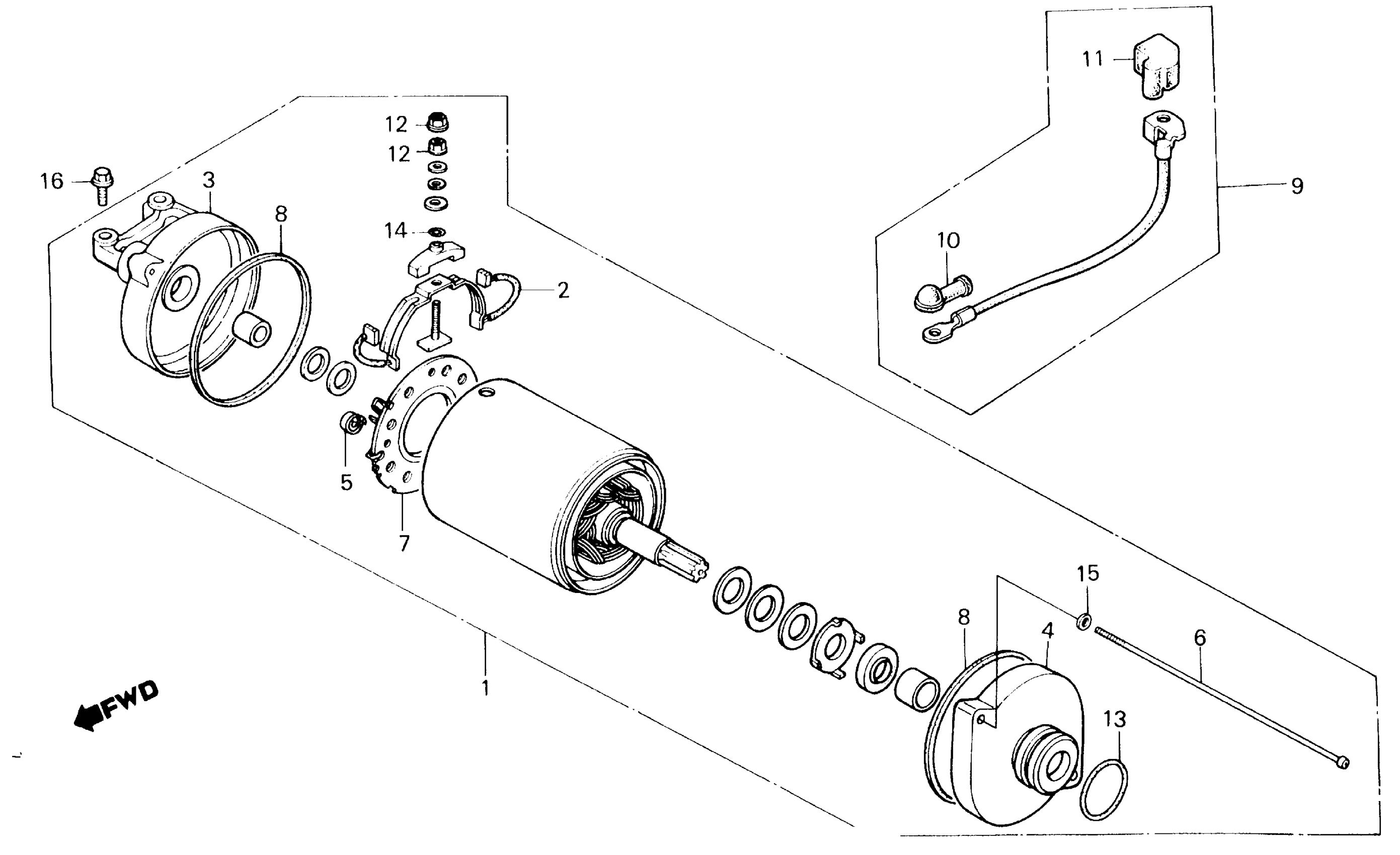

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 STARTING MOTOR Diagram

#

Description
Price

1

STARTER MOTOR ASSY. This part replaces 31200-HB6-013.

31200-HB6-405

Unavailable

2

TERMINAL SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31201-KG7-000

$31.18

4

BRACKET, RR.

31203-HB6-670

Unavailable

5

SPRING, CARBON BRUSH

31204-MA6-000

$5.72

6

BOLT, SETTING This part replaces 31205-KJ9-000.

31205-MN4-008

$5.80

6

BOLT, SETTING

31205-MN4-008

$5.80

7

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8)

31206-MM5-008

$19.33

7

HOLDER SET, BRUSH (USE FOR MITSUBA STARTER MOTOR SM-8) This part replaces 31206-HA0-771.

31206-MM5-008

$19.33

8

RING, SEAL

31207-179-711

$4.22

9

CABLE, STARTER MOTOR

32402-HB6-030

Unavailable

10

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

10

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

11

COVER, MAGNETIC SWITCH TERMINAL

32412-HB6-000

Unavailable

12

NUT-WASHER (6MM)

90071-MB0-000

$1.97

13

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

13

O-RING (24.4X3.1)

91312-MG7-003

$6.34

14

O-RING

91320-MB0-000

$2.43

15

WASHER, SPRING (5MM)

94111-05000

$1.49

16

BOLT, FLANGE (6X28) This part replaces 95800-06028-00.

95801-06028-00

$1.73

16

BOLT, FLANGE (6X28)

95801-06028-00

$1.73
