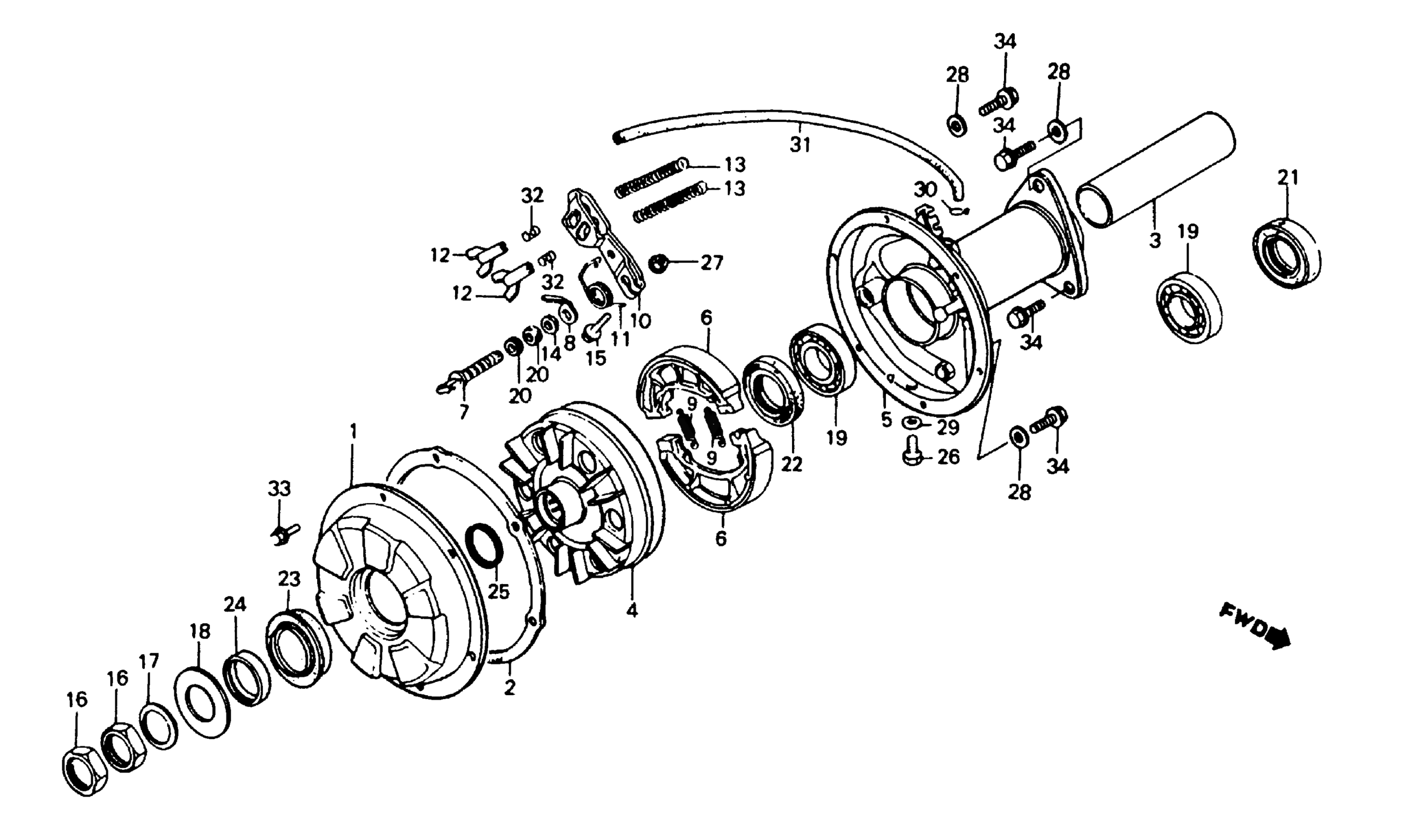

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 REAR BRAKE DRUM Diagram

#

Description
Price

NI

SHOE SET, BRAKE This part replaces 06430-HF1-911.

06430-HF7-A30

$32.09

NI

SHOE SET, BRAKE

06430-HF7-A30

$32.09

NI

SHOE SET, BRAKE This part replaces 06430-HF7-J20.

06430-HF7-A30

$32.09

NI

SHOE SET, BRAKE This part replaces 06430-HF7-000.

06430-HF7-A30

$32.09

NI

SHOE SET, BRAKE This part replaces 06430-968-405.

06430-HF7-A30

$32.09

NI

SHOE SET, BRAKE This part replaces 431A2-968-681.

06430-HF7-A30

$32.09

1

COVER, BRAKE DRUM This part replaces 40532-HB6-000.

40532-HF1-670

Unavailable

1

COVER, BRAKE DRUM

40532-HF1-670

Unavailable

2

GASKET, BRAKE COVER

40539-968-000

Unavailable

3

COLLAR, RR. AXLE CENTER

42621-HB6-000

Unavailable

4

DRUM, RR. BRAKE

42622-HB6-010

Unavailable

5

HOLDER, BEARING & BRAKE

43100-HB6-000

Unavailable

6

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.09

7

CAM, RR. BRAKE

43141-HB6-000

Unavailable

8

INDICATOR, RR. BRAKE

43145-HB3-000

$4.94

9

SPRING, RR. BRAKE SHOE

43151-329-000

$2.62

10

ARM, RR. BRAKE

43410-HB3-770

Unavailable

11

SPRING, RR. BRAKE ARM RETURN

43413-HB3-000

Unavailable

12

NUT, BRAKE ADJUSTING

43459-HM5-A10

$8.53

12

NUT, BRAKE ADJUSTING This part replaces 43459-VM4-000.

43459-HM5-A10

$8.53

13

SPRING, RR. BRAKE ROD

43467-HA0-000

Unavailable

14

DUST SEAL, BRAKE CAM

45134-250-000

Unavailable

15

BOLT, FLANGE (6X30) This part replaces 90007-PA9-000.

95701-06030-08

$1.97

15

BOLT, FLANGE (6X30)

95701-06030-08

$1.97

16

NUT, AXLE

90307-HB6-000

$16.34

17

WASHER, TAPER

90481-HB6-000

$7.18

18

WASHER (31X86X1.5)

90501-HB6-000

$23.86

19

BEARING, RADIAL BALL (32X58X13)

91055-HA0-681

$38.31

20

OIL SEAL (14X20X4) (NIPPON OIL-SEAL)

91208-611-005

$4.06

21

DUST SEAL (46X58X7)

91251-HB6-003

Unavailable

21

DUST SEAL (46X58X7) This part replaces 91251-HB6-004.

91251-HB6-003

Unavailable

22

DUST SEAL (43X58X8)

91252-HB6-000

$11.41

23

DUST SEAL (50.5X76X19)

91253-HB3-003

Unavailable

24

COLLAR, DUST SEAL (A)

91265-HB3-003

Unavailable

25

RING, SEAL

91351-HB6-003

$2.93

26

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.00

26

BOLT, DRAIN PLUG

90131-896-650

$2.00

27

NUT, FLANGE (6MM)

94050-06000

$0.59

28

WASHER, PLAIN (12MM)

94101-12800

$1.12

29

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

30

CLIP, TUBE (B7)

95002-02070

$1.59

31

BULK HOSE, VACUUM (3.5X1000) (3.5X845)

95005-35001-30M

$7.74

32

JOINT, BRAKE ARM

95015-32001

$0.86

33

BOLT, FLANGE (6X12)

96300-06012-08

$1.64

34

BOLT, FLANGE (12X25) This part replaces 95700-12025-08.

95701-12025-08

$2.80

34

BOLT, FLANGE (12X25)

95701-12025-08

$2.80

34

BOLT, FLANGE (12X25) This part replaces 95900-12025-08.

95701-12025-08

$2.80

34

BOLT, FLANGE (12X25) This part replaces 96400-12025-08.

95701-12025-08

$2.80
