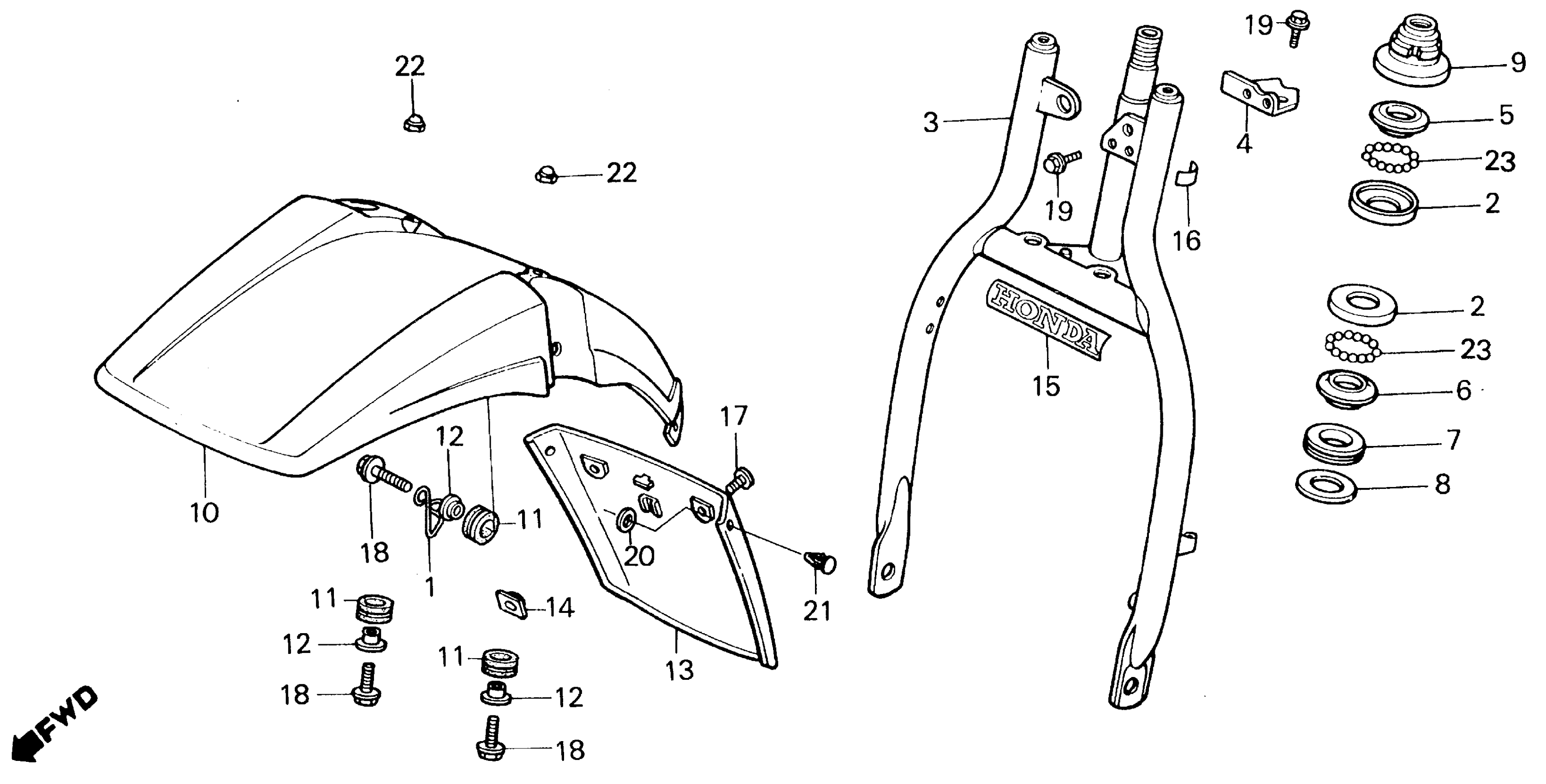

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 FRONT FENDER + FRONT FORK Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE

45467-HB6-010

Unavailable

2

RACE, STEERING TOP BALL

50301-041-010

$12.39

3

FORK, FR.

51400-HB6-670

Unavailable

5

RACE, STEERING CONE (UPPER)

53211-028-010

$11.09

6

RACE, STEERING CONE (LOWER)

53212-030-010

$10.73

7

DUST SEAL, STEERING HEAD This part replaces 53214-001-010.

53214-GJG-C20

$2.59

8

WASHER, DUST SEAL

53215-GF8-000

$4.17

8

WASHER, DUST SEAL This part replaces 53215-918-000.

53215-GF8-000

$4.17

9

THREAD, STEERING HEAD TOP This part replaces 53220-051-690.

53220-098-670

$16.83

9

THREAD, STEERING HEAD TOP

53220-098-670

$16.83

9

THREAD, STEERING HEAD TOP This part replaces 53220-115-000.

53220-098-670

$16.83

9

THREAD, STEERING HEAD TOP This part replaces 53220-958-000.

53220-098-670

$16.83

10

FENDER, FR. *R109* (PASSION RED) (NOT AVAILABLE)

61100-HB6-010ZA

Unavailable

11

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

12

COLLAR, FENDER SETTING

61104-444-000

$7.61

13

SPLASH GUARD, FR. (NOT AVAILABLE)

61111-HB6-010

Unavailable

14

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

15

EMBLEM, FR. FORK (NOT AVAILABLE)

87102-958-010

Unavailable

17

SCREW, SPLASH GUARD This part replaces 90102-HB6-000.

90120-HA7-670

$10.13

17

SCREW, SPLASH GUARD

90120-HA7-670

$10.13

18

BOLT, FLANGE (6X25)

90108-MJ1-000

$5.26

20

WASHER (7X12)

90501-310-000

$1.74

21

CLIP, ANCHOR

90801-HB6-000

Unavailable

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

BALL, STEEL (#6) (3/16)

96211-06000

$1.49
