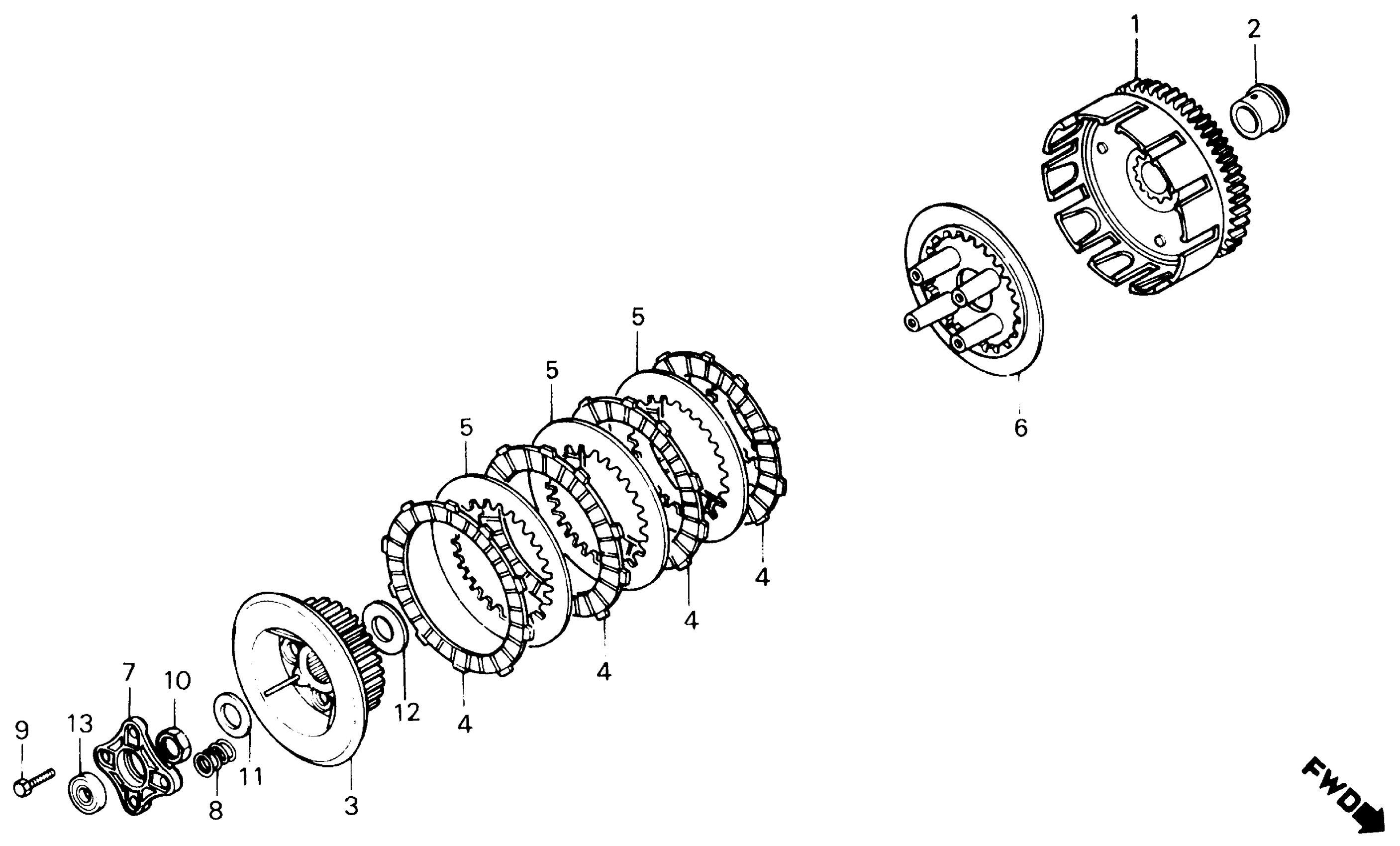

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-HB6-000

Unavailable

2

GUIDE, CLUTCH (OUTER)

22116-HB6-670

Unavailable

3

CENTER, CLUTCH | Use up to Engine SN 2302281 This part replaces 22121-HB6-000.

22121-HC3-000

Unavailable

3

CENTER, CLUTCH

22121-HC3-000

Unavailable

4

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$17.44

4

DISK, CLUTCH FRICTION

22201-166-000

$17.44

5

PLATE, CLUTCH

22311-KN4-680

$6.31

5

PLATE, CLUTCH This part replaces 22311-107-000.

22311-KN4-680

$6.31

6

PLATE, CLUTCH PRESSURE

22350-115-020

$41.76

7

PLATE, CLUTCH LIFTER

22361-HB6-000

Unavailable

8

SPRING, CLUTCH

22401-HB6-000

$4.78

9

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

10

NUT, SPECIAL (16MM)

90201-HB3-000

$7.49

11

WASHER (16MM) This part replaces 90407-HB3-000.

90434-KR3-000

$2.94

11

WASHER (16MM)

90434-KR3-000

$2.94

12

WASHER (20MM) (NOT AVAILABLE)

90432-958-000

Unavailable

13

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

13

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

13

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40
