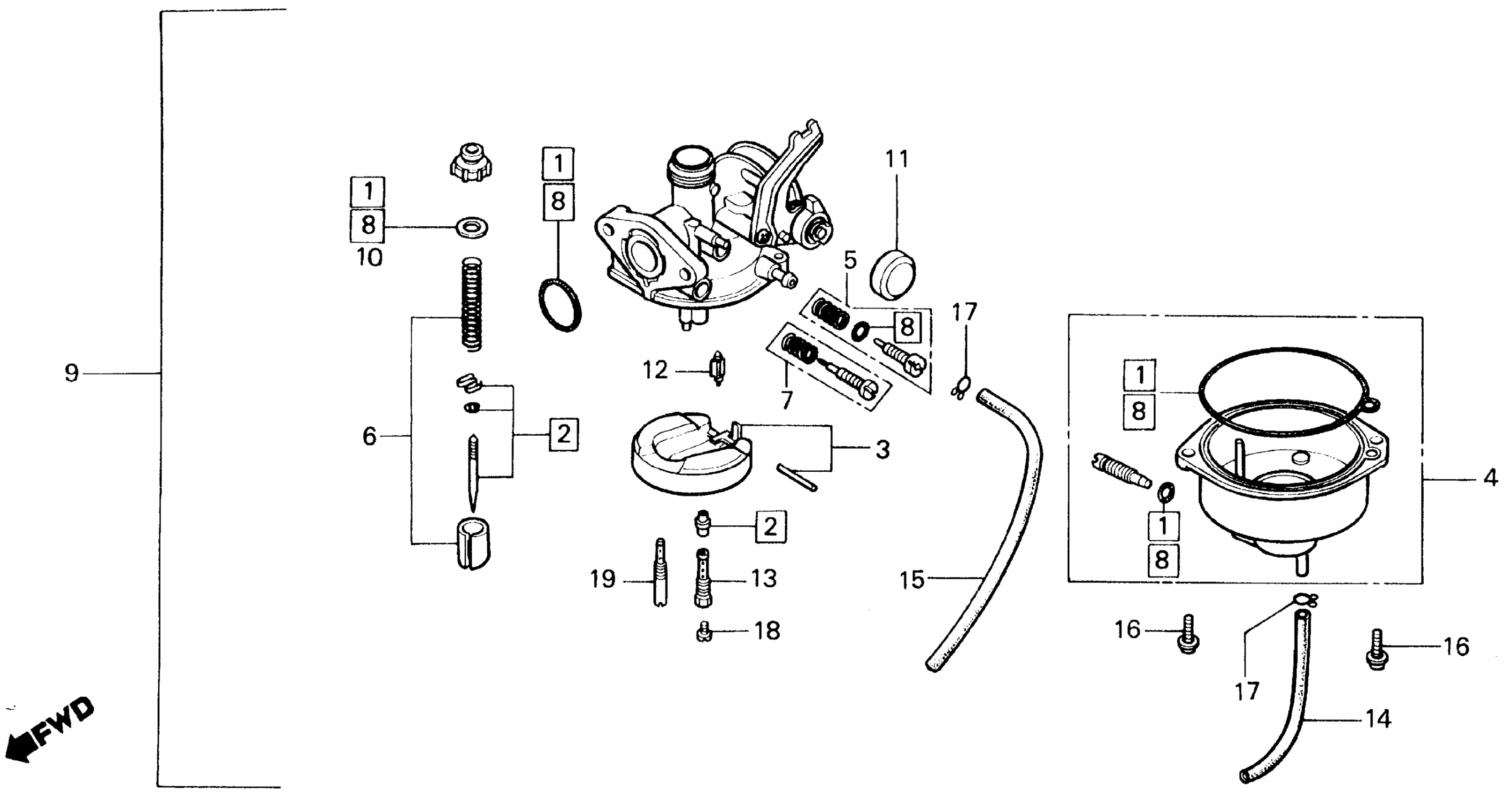

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 CARBURETOR Diagram

#

Description
Price

2

NEEDLE SET, JET

16012-HB6-003

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

CHAMBER SET, FLOAT

16045-HB6-003

Unavailable

5

SCREW SET This part replaces 16016-943-801.

16016-957-003

Unavailable

6

VALVE SET, THROTTLE | Use up to Engine SN PB85A B This part replaces 16022-HB6-003.

16022-HB6-013

Unavailable

6

VALVE SET, THROTTLE | Use up to Engine SN PB85A B

16022-HB6-013

Unavailable

6

VALVE SET, THROTTLE | Use from Engine SN PB85A C

16022-HB6-013

Unavailable

7

SCREW SET B | Use up to Engine SN PB85A B

16028-GC8-004

$16.35

7

SCREW SET B | Use up to Engine SN PB85A B This part replaces 16028-187-003.

16028-GC8-004

$16.35

7

SCREW SET B | Use from Engine SN PB85A C

16028-HC3-004

Unavailable

8

GASKET SET

16010-HC3-004

Unavailable

8

GASKET SET This part replaces 16049-HB6-014.

16010-HC3-004

Unavailable

9

CARBURETOR ASSY. | Use up to Engine SN 2302281 This part replaces 16100-HB6-034.

16100-HB6-064

Unavailable

9

CARBURETOR ASSY. | Use from Engine SN 2302282 to 2302551 This part replaces 16100-HB6-044.

16100-HB6-064

Unavailable

9

CARBURETOR ASSY. | Use from Engine SN 2302552 This part replaces 16100-HB6-054.

16100-HB6-064

Unavailable

10

GASKET, TOP

16110-KN4-651

$7.69

11

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

12

VALVE, FLOAT

16155-168-681

Unavailable

13

HOLDER, NEEDLE JET

16165-HB6-003

Unavailable

14

TUBE, FUEL This part replaces 16199-KG4-003.

16199-KG4-405

$9.49

14

PIPE, OVERFLOW

16199-KG4-405

$9.49

15

TUBE, AIR VENT

16199-943-003

Unavailable

16

SCREW-WASHER (4X14)

93892-04014-08

$1.49

17

CLIP, TUBE (B6.5)

95002-02650

$1.49

18

JET, MAIN (#95) This part replaces 99101-116-0950.

99102-GHB-0950

$9.46

18

JET, MAIN (#95)

99102-GHB-0950

$9.46

19

JET COMP,SLOW #35 This part replaces 99103-943-0350.

99103-165-0350

$20.41
