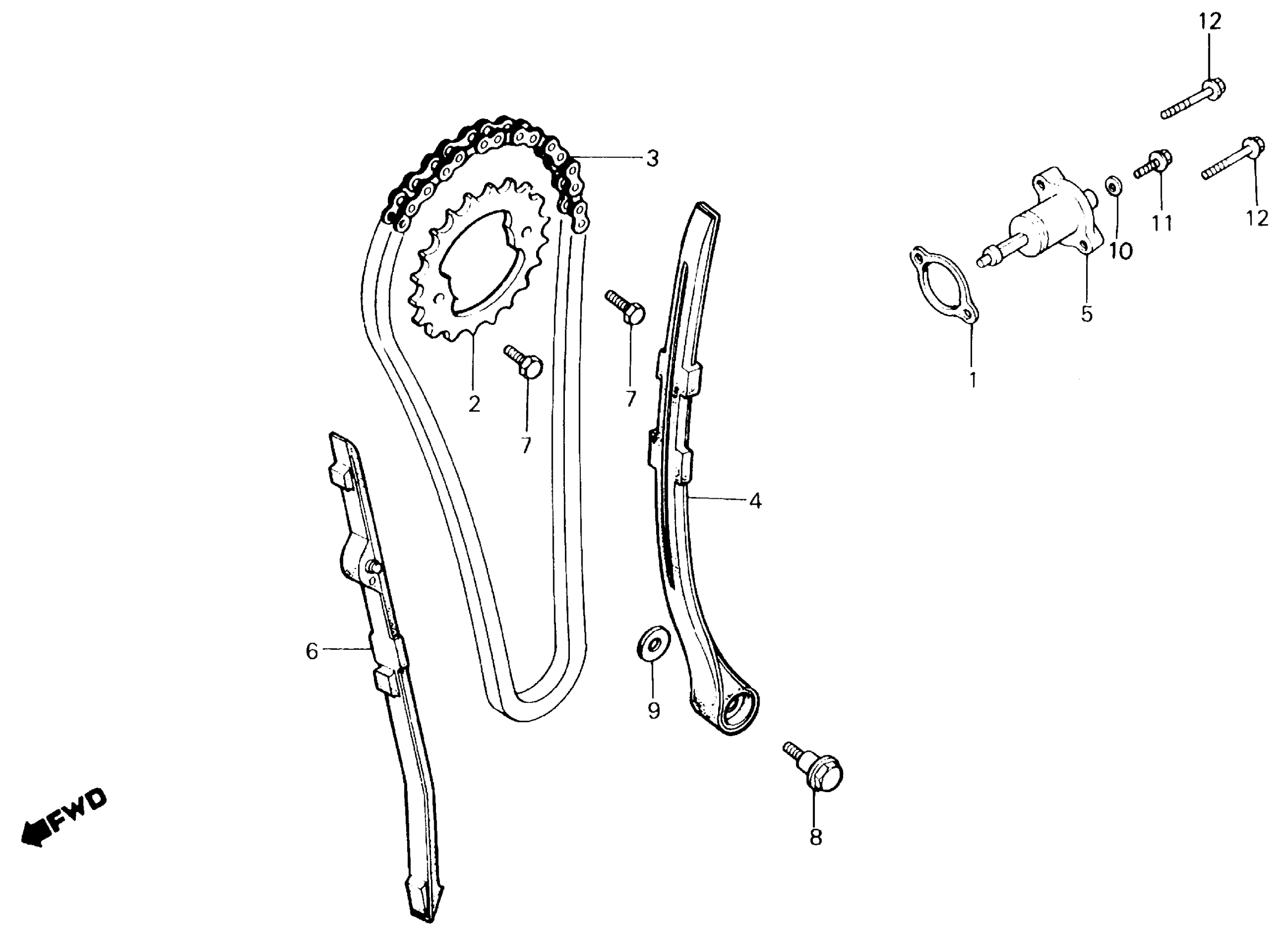

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 CAM CHAIN + TENSIONER Diagram

GASKET, TENSIONER HOLE This part replaces 12194-HB3-000.

12194-KW3-880

$2.33

GASKET, TENSIONER HOLE This part replaces 12194-HB3-306.

12194-KW3-880

$2.33

GASKET, TENSIONER HOLE

12194-KW3-880

$2.33

SPROCKET, CAM

14321-HB6-000

Unavailable

CHAIN, CAM (DAIDO)

14401-439-003

Unavailable

TENSIONER, CAM CHAIN This part replaces 14510-HB6-000.

14510-HB6-003

Unavailable

TENSIONER, CAM CHAIN

14510-HB6-003

Unavailable

LIFTER, TENSIONER

14520-HB3-003

Unavailable

GUIDE, CAM CHAIN

14550-HB6-000

Unavailable

BOLT, HEX. KNOCK (7X10.5) | Use up to Engine SN 2302451

90082-HB6-000

Unavailable

BOLT, FLANGE KNOCK (7X10.5) | Use from Engine SN 2302452

90082-HA0-000

$1.97

BOLT, TENSIONER PIVOT

90083-HB6-000

Unavailable

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, SEALING (6MM)

90442-397-000

$2.28

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80
