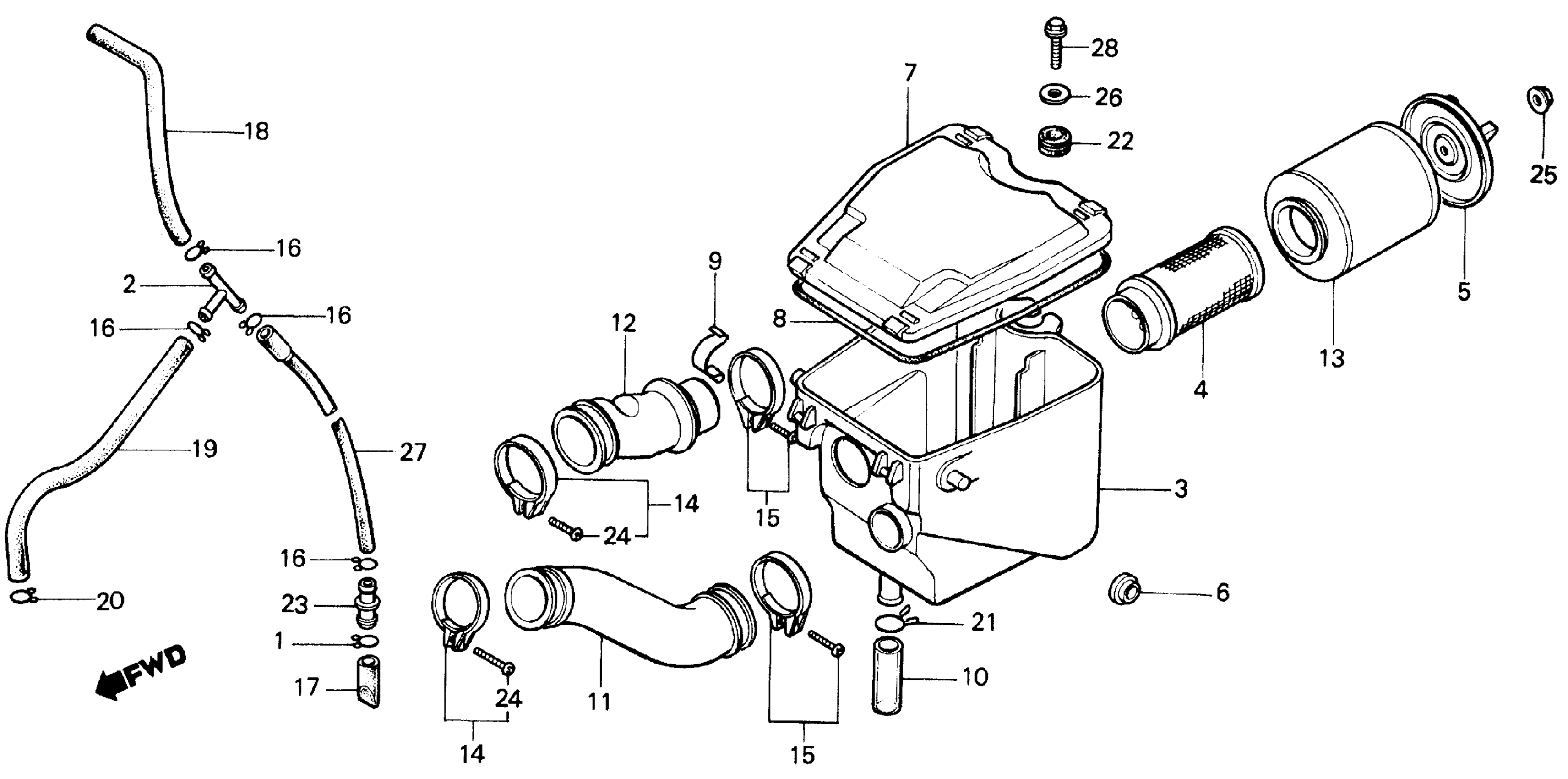

Honda ATC125MA (87) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-HK300004 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.92

2

JOINT, BREATHER THREE-WAY

15772-376-000

$19.49

3

HOUSING, AIR CLEANER

17210-HB6-670

Unavailable

4

BODY, AIR CLEANER

17211-HB3-770

Unavailable

5

PLATE, RR.

17212-HB3-000

Unavailable

6

RUBBER, AIR CLEANER HOUSING SETTING (NOT AVAILABLE)

17216-HA5-000

Unavailable

7

LID, AIR CLEANER HOUSING

17217-HB3-000

Unavailable

8

SEAL, AIR CLEANER COVER This part replaces 17212-GJ5-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17212-KJ9-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17219-HB3-000.

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER

17222-MN4-405

$7.31

8

SEAL, AIR CLEANER COVER This part replaces 17231-MB2-000.

17222-MN4-405

$7.31

9

SPRING, AIR CLEANER LID SETTING

17223-HB3-003

$7.88

10

TUBE, AIR CLEANER DRAIN This part replaces 17224-HB3-000.

17224-HM5-930

$10.85

10

TUBE, AIR CLEANER DRAIN

17224-HM5-930

$10.85

11

TUBE, AIR CLEANER IN.

17251-HB6-000

Unavailable

12

TUBE, AIR CLEANER CONNECTING

17253-HB6-010

Unavailable

13

ELEMENT, AIR CLEANER

17254-HB3-770

$20.45

14

BAND, AIR CLEANER CONNECTING TUBE

17255-HB3-010

Unavailable

15

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-KV7-670.

95018-56200

$9.55

15

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17258-HB3-000.

95018-56200

$9.55

15

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$9.55

15

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$9.55

16

CLIP, BREATHER TUBE

17316-611-000

$9.23

17

TUBE, DRAIN This part replaces 17358-HA0-680.

17358-HM8-000

$4.94

17

TUBE, DRAIN

17358-HM8-000

$4.94

18

TUBE A, BREATHER (NOT AVAILABLE)

17561-HB6-000

Unavailable

19

TUBE, BREATHER

17562-HB6-000

Unavailable

20

CLIP, SUB-TANK HOSE

17724-102-700

$4.51

21

CLIP, AIR HOSE (21.5)

18532-634-670

$7.94

22

RUBBER, FR. FENDER SETTING

61103-430-000

$3.67

23

JOINT, TUBE

91463-393-780

$1.80

24

SCREW, PAN (5X28)

93500-05028-0G

$1.49

25

NUT, FLANGE (6MM)

94050-06080

$1.49

26

WASHER (6.5X25X1.5)

90404-680-000

$4.07

27

BULK HOSE, VACUUM (12X1000) (12X180)

95005-12001-20M

$34.11

28

BOLT, FLANGE (6X10)

95700-06010-08

$1.61

28

BOLT, FLANGE (6X10)

95701-06010-08

$1.61
