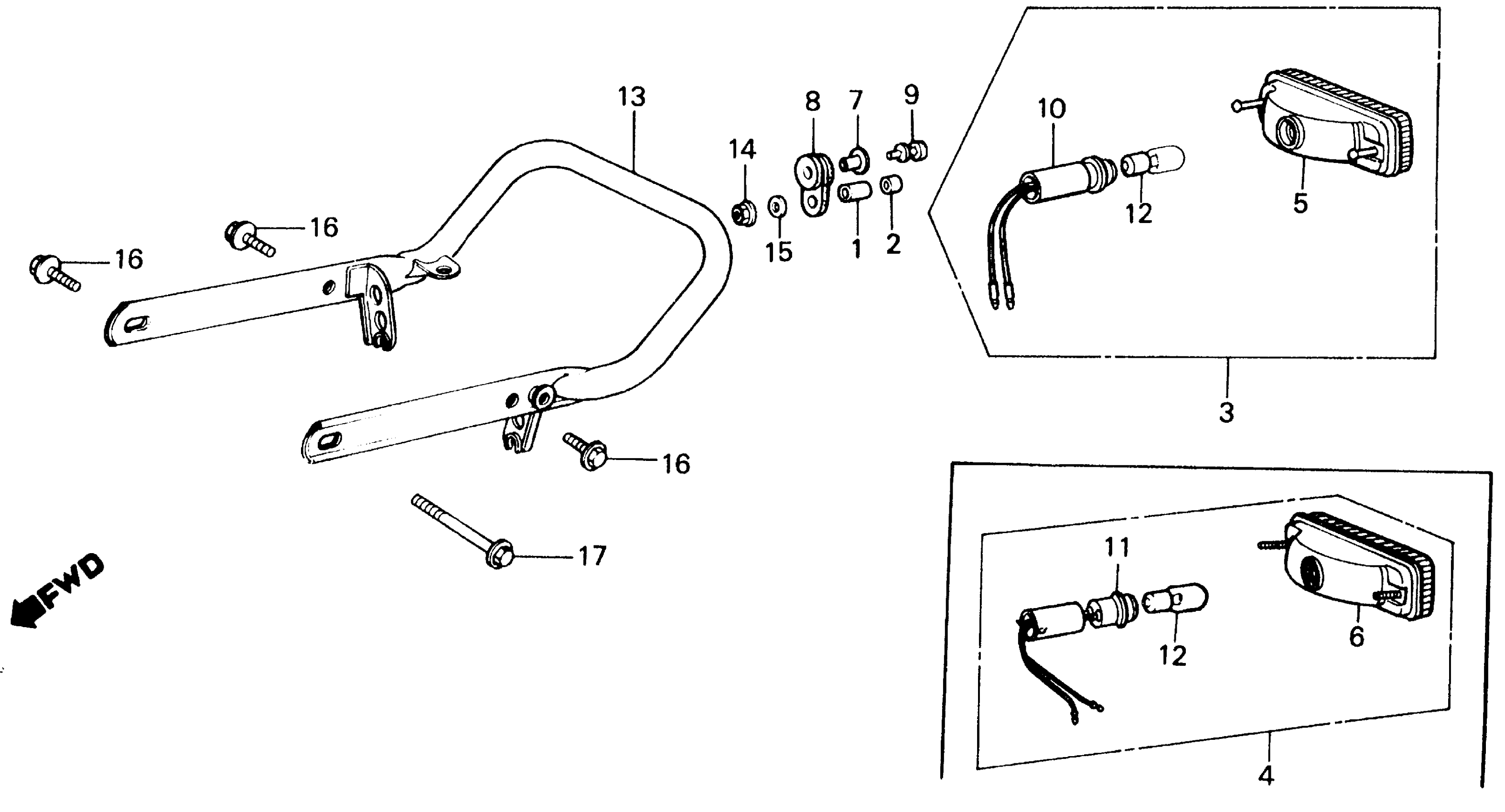

Honda ATC125MA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-GK200032 TO JH3TE010-GK208552 TAILLIGHT + CARRY PIPE Diagram

COLLAR

17207-MC7-000

Unavailable

COLLAR, TAILLIGHT (NOT AVAILABLE)

17207-VM6-000

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-HB6-003

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE)

33710-HB6-003

Unavailable

COLLAR, TAILLIGHT

33713-KJ2-000

$5.26

RUBBER, TAILLIGHT SETTING

33715-HA6-680

Unavailable

PIN, TAILLIGHT SETTING (NOT AVAILABLE)

33716-HA6-680

Unavailable

SOCKET, TAILLIGHT (NOT AVAILABLE) This part replaces 33720-HB6-003.

33705-HA6-003

Unavailable

BULB (12V5W) (STANLEY)

34351-657-921

$3.41

PIPE, CARRIER This part replaces 81200-HB6-000.

81200-HB6-010

Unavailable

NUT, FLANGE (4MM)

94050-04080

$1.49

WASHER, PLAIN (4MM)

94103-04800

$1.49

BOLT, FLANGE (8X16) This part replaces 95700-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16)

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-0B.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 95900-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X16) This part replaces 96500-08016-08.

95701-08016-08

$1.80

BOLT, FLANGE (8X45) This part replaces 95700-08045-08.

95701-08045-08

$2.28

BOLT, FLANGE (8X45)

95701-08045-08

$2.28
