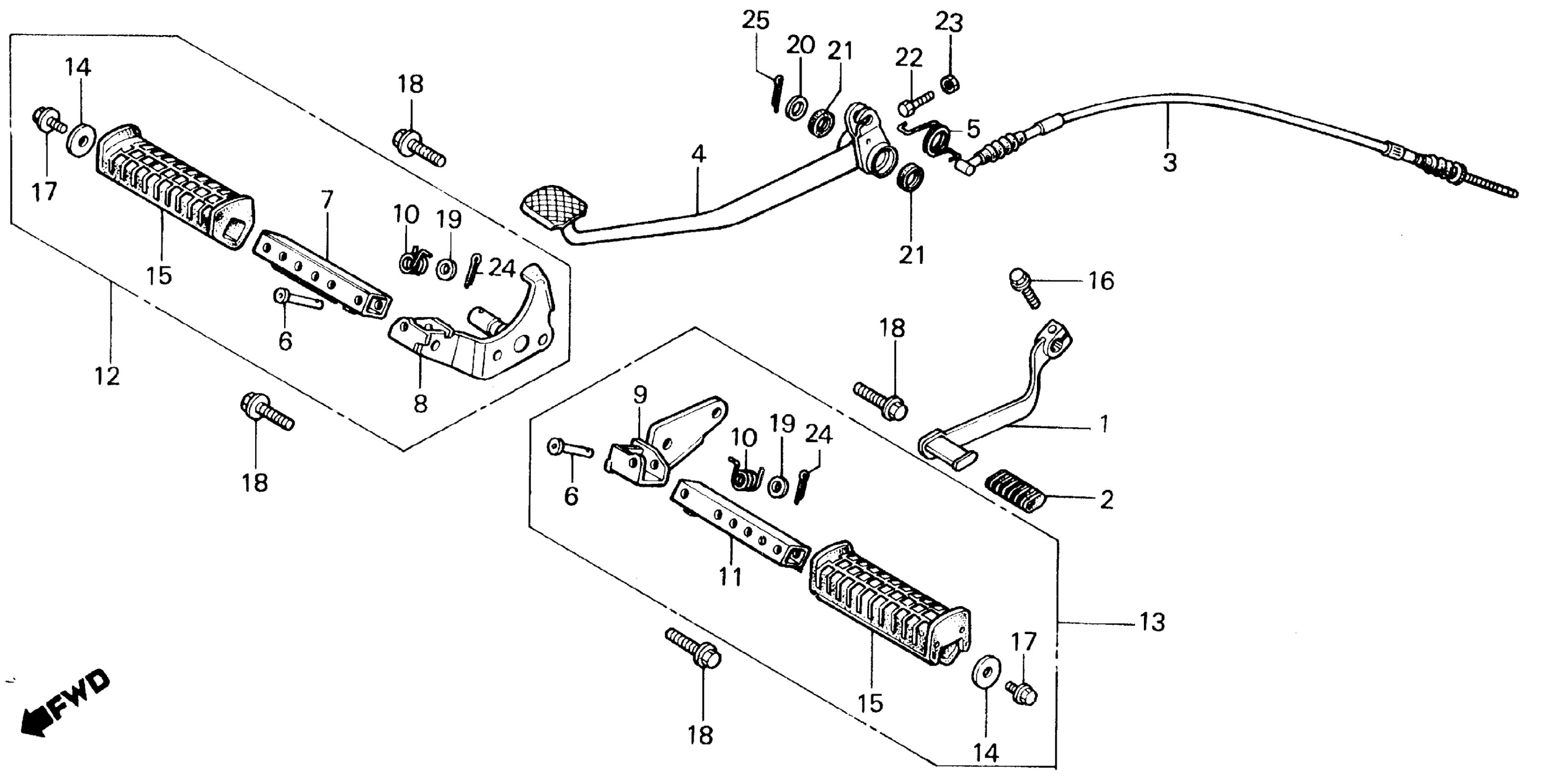

Honda ATC125MA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-GK200032 TO JH3TE010-GK208552 STEP + PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-HB6-000

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-371-000

$5.13

3

CABLE, FOOT BRAKE (NOT AVAILABLE) This part replaces 43470-HB6-010.

43470-HB6-670

Unavailable

4

PEDAL, BRAKE

46500-HB6-000

Unavailable

5

SPRING, BRAKE PEDAL

46514-HB6-010

Unavailable

6

PIN, STEP BAR JOIN

50603-KL4-000

$6.75

7

BAR ASSY., R. STEP This part replaces 50610-HB6-000.

50610-HB6-010

Unavailable

7

BAR ASSY., R. STEP

50610-HB6-010

Unavailable

8

PLATE, R. STEP

50615-HB6-000

Unavailable

9

PLATE, L. STEP

50616-HB6-000

Unavailable

10

SPRING, STEP RETURN

50617-HB6-000

Unavailable

11

BAR ASSY., L. STEP This part replaces 50620-HB6-000.

50620-HB6-010

Unavailable

11

BAR ASSY., L. STEP

50620-HB6-010

Unavailable

12

ARM ASSY., R. STEP This part replaces 50630-HB6-000.

50630-HB6-010

Unavailable

12

ARM ASSY., R. STEP

50630-HB6-010

Unavailable

13

ARM ASSY., L. STEP This part replaces 50640-HB6-000.

50640-HB6-010

Unavailable

13

ARM ASSY., L. STEP

50640-HB6-010

Unavailable

14

STOPPER, STEP RUBBER

50651-HB6-000

Unavailable

15

RUBBER, STEP (NOT AVAILABLE)

50661-HB6-000

Unavailable

16

BOLT, FLANGE (6X20)

90118-968-000

$4.24

17

BOLT-WASHER (8X12)

90156-964-670

Unavailable

18

BOLT, FLANGE (12X40)

90162-HB6-000

Unavailable

19

WASHER (10.2MM)

90401-430-000

$1.64

20

WASHER (17.5MM)

90512-303-000

$1.77

21

DUST SEAL (17X23X3)

91206-968-003

$3.69

22

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

22

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

23

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

23

NUT, HEX. (6MM)

94001-06200-0S

$1.49

23

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

24

PIN, COTTER (2.0X15)

94201-20150

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

25

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

25

PIN, COTTER (3.0X45)

94201-30450

$1.49
