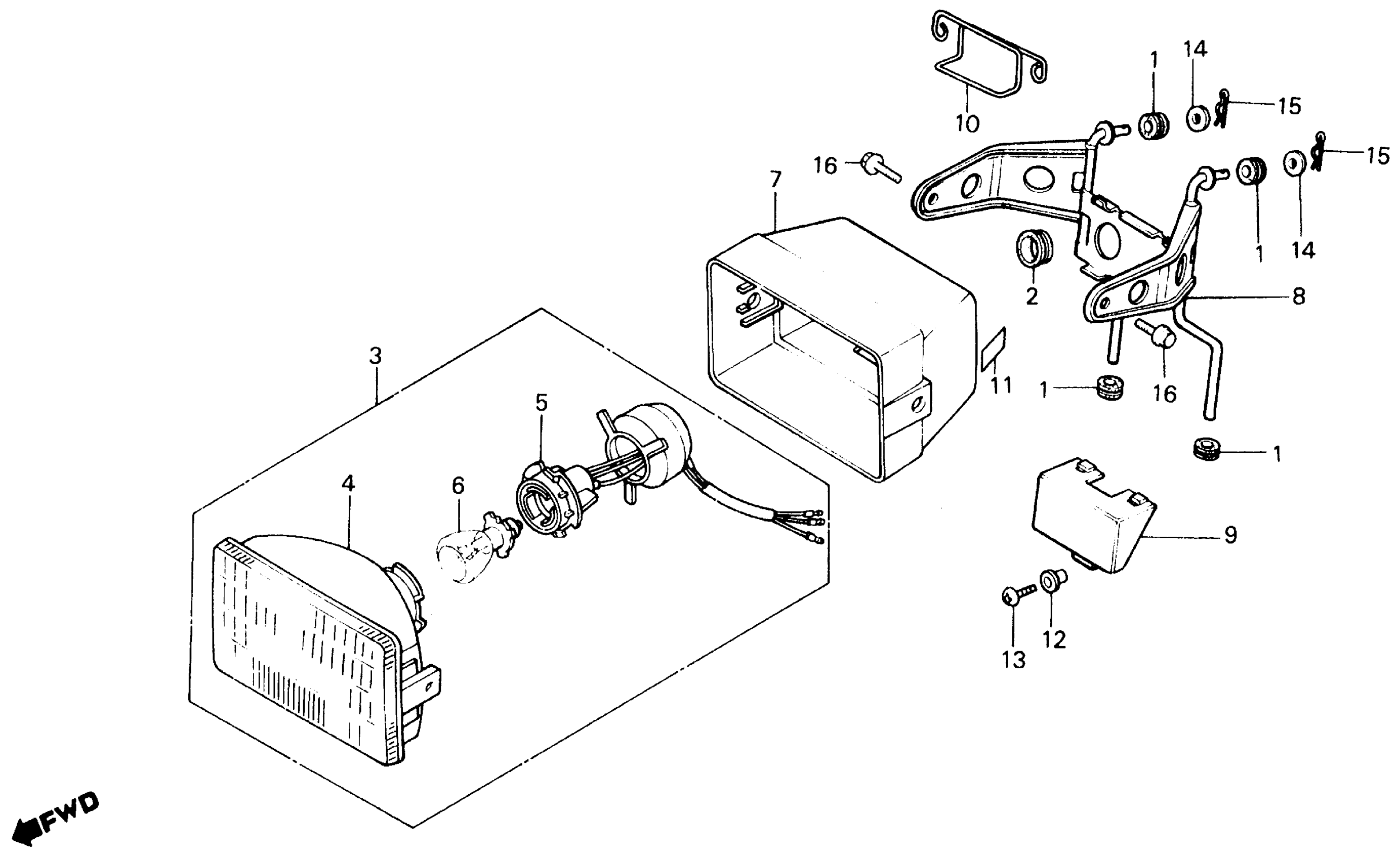

Honda ATC125MA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-GK200032 TO JH3TE010-GK208552 HEADLIGHT Diagram

RUBBER, FILLER NECK STOPPER

19038-ME9-000

$4.08

GROMMET (30MM)

32176-SA0-000

Unavailable

HEADLIGHT ASSY. | Use up to Frame SN GK205386 This part replaces 33100-HB6-000.

33100-HB6-010

Unavailable

HEADLIGHT ASSY.

33100-HB6-010

Unavailable

UNIT, HEADLIGHT (NOT AVAILABLE)

33120-HB3-003

Unavailable

SOCKET ASSY., HEADLIGHT

33130-HB6-000

Unavailable

BULB, HEADLIGHT (12V45/45W) (STANLEY) This part replaces 34901-HB6-003.

34901-HC3-003

$10.57

BULB, HEADLIGHT (12V45/45W) (STANLEY)

34901-HC3-003

$10.57

BULB, HEADLIGHT (12V45/45W) (STANLEY) | Use up to Frame SN GK205386 This part replaces 34901-323-750.

34901-HC3-003

$10.57

CASE, HEADLIGHT *R109* (PASSION RED) (NOT AVAILABLE)

61301-HB3-003ZA

Unavailable

BRACKET, HEADLIGHT CASE This part replaces 61311-HB6-000.

61311-HB6-670

Unavailable

BRACKET, HEADLIGHT CASE

61311-HB6-670

Unavailable

CASE, CONNECTOR

61314-HB6-000

Unavailable

HOLDER, WIRE

61321-HB6-000

Unavailable

WASHER, NUMBER BRACKET SETTING

90402-GB0-900

$3.52

SCREW, PAN (6X12)

93500-06012-0A

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, LOCK (6MM)

94251-06000

$1.49

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
