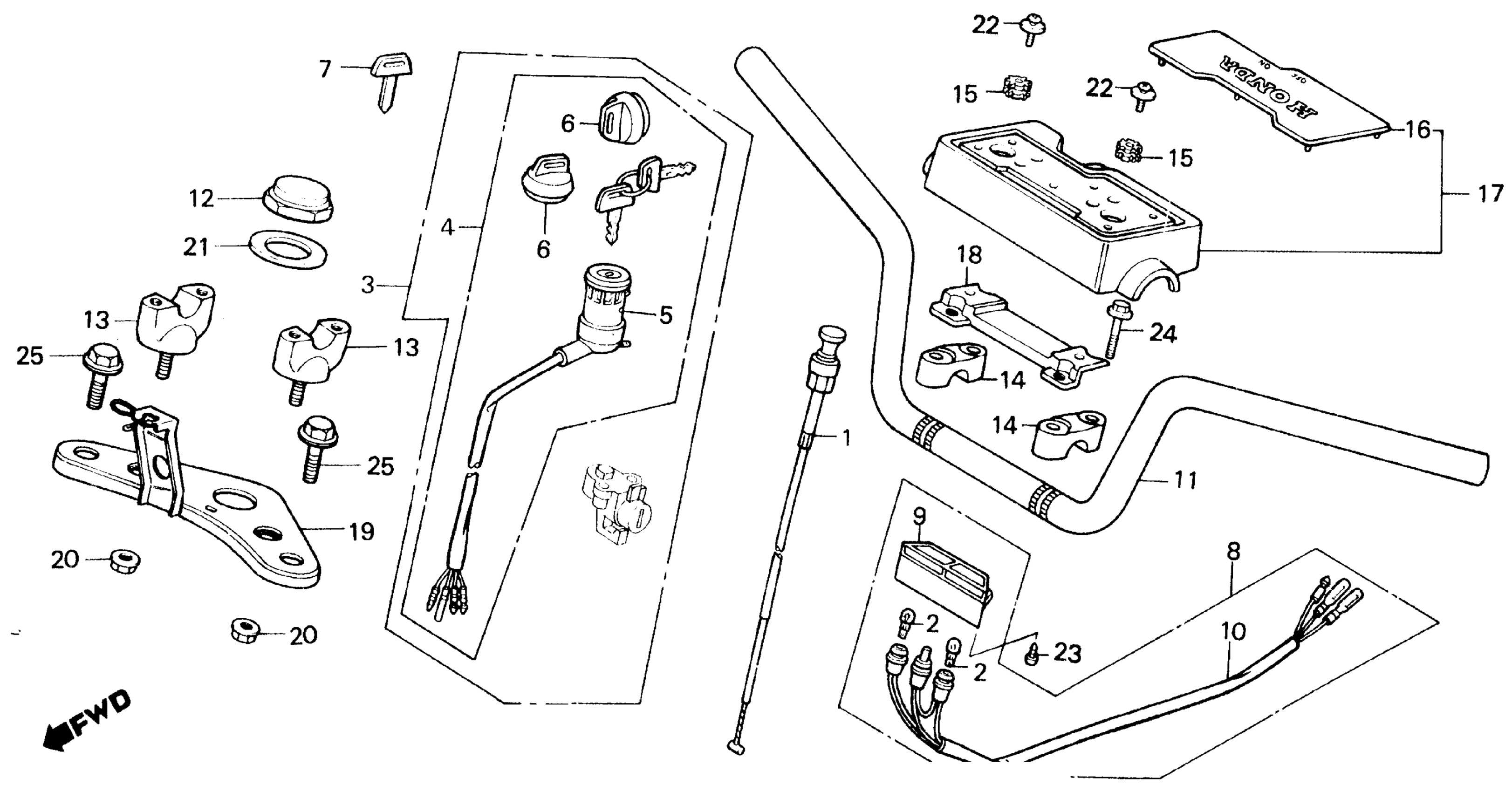

Honda ATC125MA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-GK200032 TO JH3TE010-GK208552 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CABLE, CHOKE (NOT AVAILABLE)

17950-HB6-010

Unavailable

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

LOCK SET This part replaces 35010-HB6-010.

35010-HB6-020

Unavailable

5

LOCK SET

35010-HB6-671

Unavailable

5

LOCK SET This part replaces 35100-HB6-000.

35010-HB6-671

Unavailable

5

LOCK SET This part replaces 35100-HB6-010.

35010-HB6-671

Unavailable

6

CAP, COMBINATION SWITCH KEY

35113-VM6-007

Unavailable

7

KEY,BLANK (NO.1) | (Optional). This part replaces 35121-086-811.

35121-GW0-731

$9.44

7

KEY,BLANK (NO.2) | (Optional). This part replaces 35122-086-811.

35122-GW0-731

Unavailable

8

INDICATOR ASSY., NEUTRAL

38400-HB6-000

Unavailable

11

HANDLEBAR

53100-HB6-000

Unavailable

12

NUT, STEERING STEM (NOT AVAILABLE)

53120-HB6-000

Unavailable

13

HOLDER, HANDLE (LOWER)

53130-HA0-680

$21.17

14

HOLDER, HANDLE (UPPER)

53131-HB6-000

$21.17

15

RUBBER, HANDLE COVER

53202-HB3-000

Unavailable

16

COVER (OUTER) (NOT AVAILABLE)

53203-HB3-000

Unavailable

17

COVER, HANDLE

53205-HB3-000

Unavailable

18

STAY, HANDLE COVER

53206-HB6-000

Unavailable

19

BRIDGE, FORK TOP

53231-HB6-010

Unavailable

20

NUT, U (10MM)

90304-GE8-003

$3.67

21

WASHER, STEERING STEM

90482-968-000

Unavailable

22

SCREW-WASHER (5X20)

93894-05020-08

$1.49

23

SCREW, TAPPING (4X12)

93903-24320

$1.49

24

BOLT, FLANGE (8X35) This part replaces 95700-08035-08.

95701-08035-08

$1.49

24

BOLT, FLANGE (8X35)

95701-08035-08

$1.49

25

BOLT, FLANGE (12X20) This part replaces 95700-12020-00.

95701-12020-00

Unavailable

25

BOLT, FLANGE (12X20)

95701-12020-00

Unavailable
