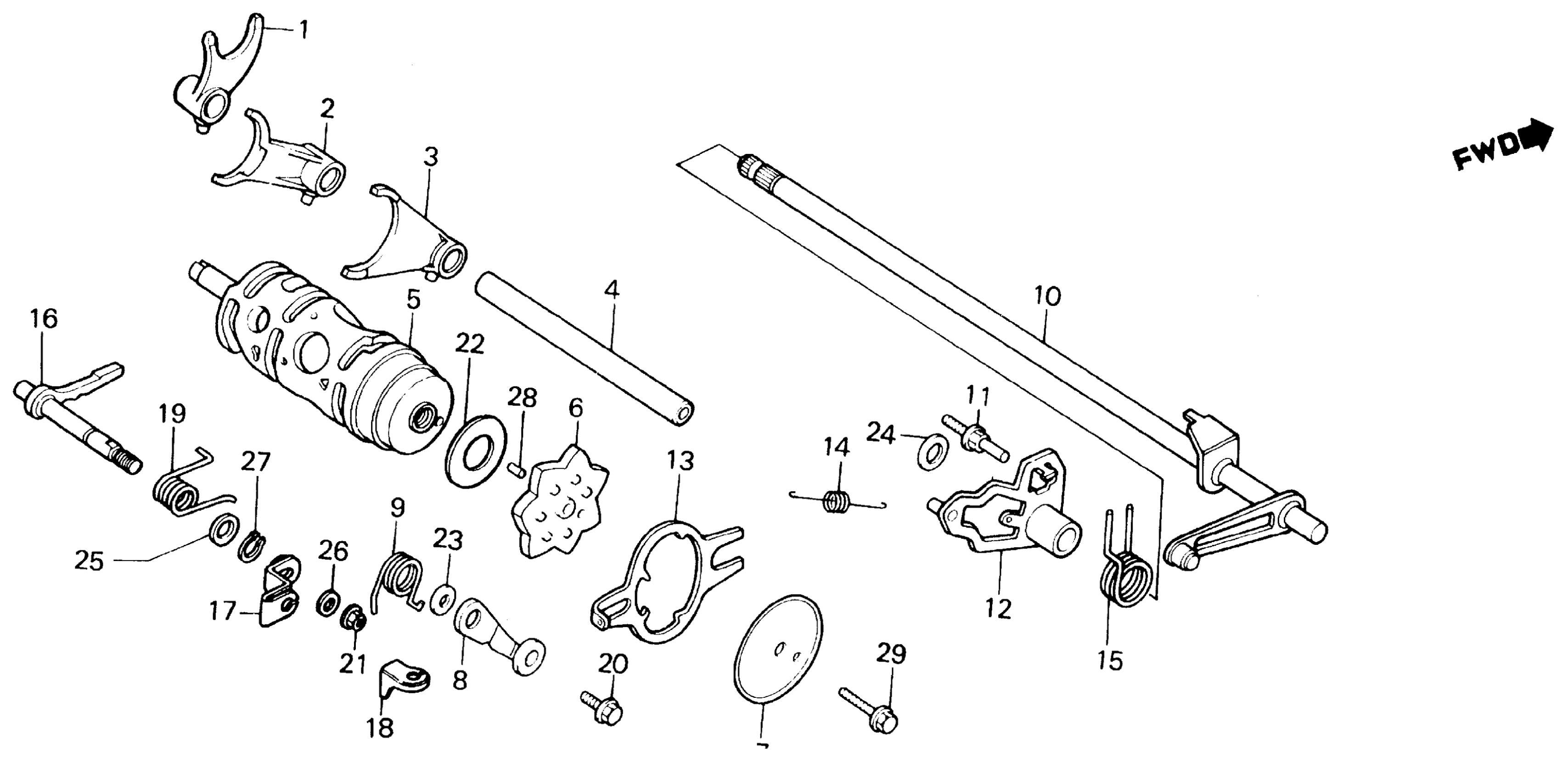

Honda ATC125MA (86) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-GK200032 TO JH3TE010-GK208552 GEARSHIFT DRUM + GEARSHIFT FORK Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-HB6-000

Unavailable

2

FORK, CENTER GEARSHIFT

24212-HB6-000

Unavailable

3

FORK, L. GEARSHIFT

24213-HB6-000

Unavailable

4

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-KK0-000.

24241-MC0-000

$28.07

4

SHAFT, GEARSHIFT FORK GUIDE

24241-KCZ-000

$28.07

4

SHAFT, GEARSHIFT FORK GUIDE

24241-MC0-000

$28.07

5

DRUM, GEARSHIFT

24301-HB6-010

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-000.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-010.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM This part replaces 24321-HB3-020.

24321-HB3-030

Unavailable

6

SHIFTER, DRUM

24321-HB3-030

Unavailable

7

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

8

STOPPER, GEARSHIFT DRUM

24430-HB6-000

Unavailable

9

SPRING, DRUM STOPPER

24436-HB6-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-HB6-000

Unavailable

11

PIN, RETURN SPRING (NOT AVAILABLE)

24615-KA4-000

Unavailable

12

ARM, GEARSHIFT MASTER

24620-HB6-000

Unavailable

13

PLATE, GEARSHIFT This part replaces 24631-HB6-000.

24631-HM8-A40

$14.20

14

SPRING, SHIFT ARM

24641-HB3-004

$2.90

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-000.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-010.

24651-HF1-670

Unavailable

15

SPRING, GEARSHIFT RETURN

24651-HF1-670

Unavailable

16

SHAFT, REVERSE STOPPER

24860-HB6-010

Unavailable

17

LEVER, REVERSE STOPPER

24865-HB6-000

Unavailable

18

HOLDER, REVERSE WIRE | Use up to Engine SN 2200106 This part replaces 24866-HB6-000.

24866-HB6-010

Unavailable

18

HOLDER, REVERSE WIRE

24866-HB6-010

Unavailable

19

SPRING, REVERSE STOPPER

24867-HB6-010

$4.07

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

20

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

21

NUT, U (6MM)

90301-473-003

$4.07

22

WASHER (34X42X1)

90405-HB6-000

Unavailable

23

WASHER, DRUM STOPPER

90417-360-000

$1.74

24

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

25

WASHER, THRUST (9X1)

90453-HB3-000

Unavailable

26

WASHER (6MM)

90502-HB3-000

$3.41

27

CIRCLIP (OUTER) (9MM) (NOT AVAILABLE)

90601-147-000

Unavailable

28

ROLLER (4X13.8)

96220-40138

$1.49

29

BOLT, FLANGE (6X20)

96300-06020-00

$1.49
