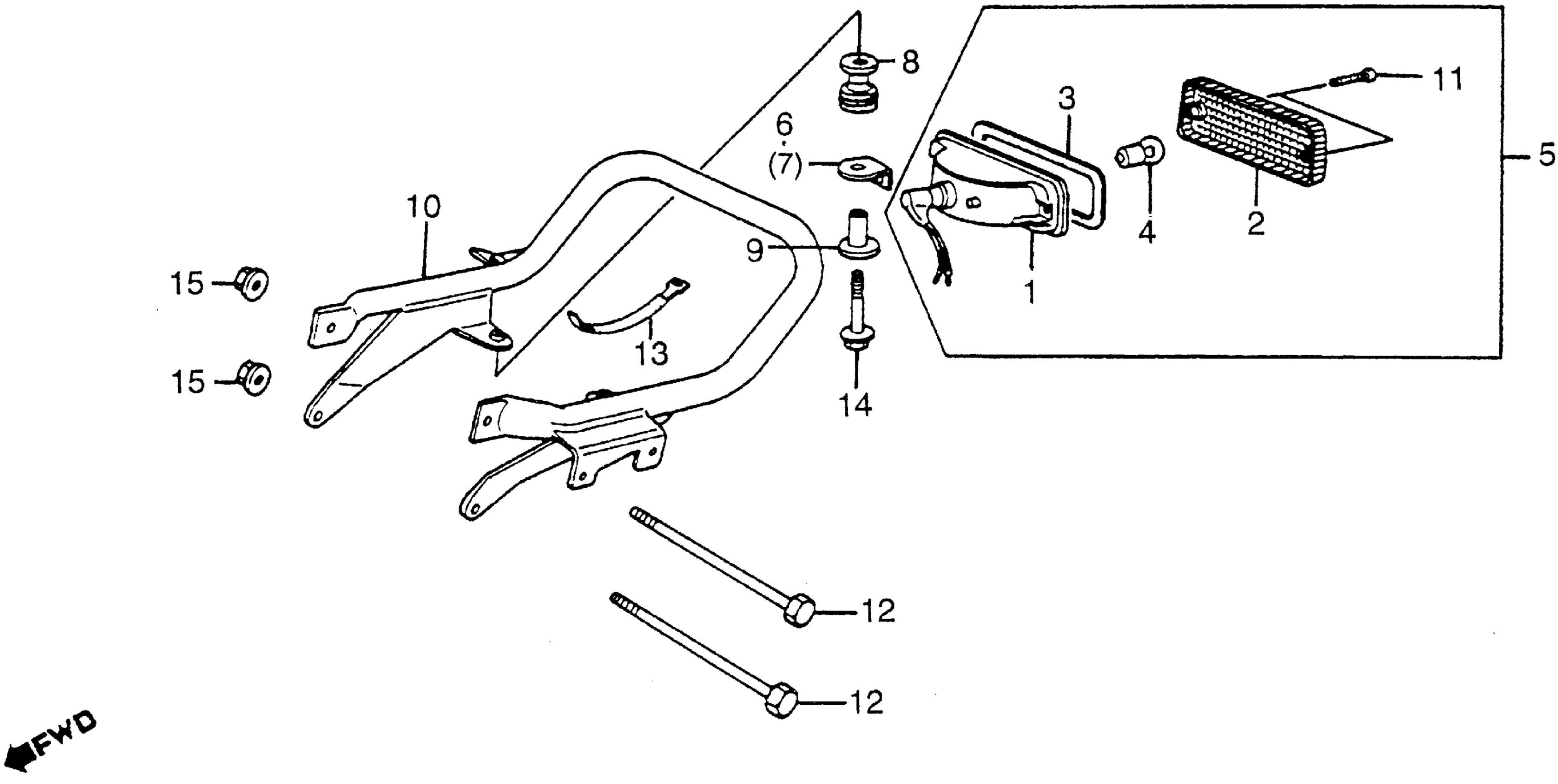

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 TAILLIGHT + CARRIER RACK Diagram

HOUSING

33300-968-003

Unavailable

LENS, TAILLIGHT

33302-958-013

$19.40

GASKET, TAILLIGHT LENS

33303-958-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 33310-594-601.

34910-504-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE) This part replaces 34905-965-003.

34910-504-003

Unavailable

BULB (12V5W) (STANLEY) (NOT AVAILABLE)

34910-504-003

Unavailable

TAILLIGHT ASSY.

33700-968-003

Unavailable

BRACKET, R. TAILLIGHT (NOT AVAILABLE)

33705-943-000

Unavailable

BRACKET, L. TAILLIGHT (NOT AVAILABLE)

33706-943-000

Unavailable

RUBBER, TAILLIGHT MOUNT (NOT AVAILABLE)

33731-958-670

Unavailable

COLLAR, TAILLIGHT SETTING (NOT AVAILABLE)

33732-958-671

Unavailable

RACK, CARRIER (NOT AVAILABLE)

81200-968-000

Unavailable

SCREW, PAN (4X28)

90140-943-010

Unavailable

BOLT, HEX. (10X180) (NOT AVAILABLE)

90196-918-000

Unavailable

CLIP, HEAD

91406-729-000

$3.27

BOLT-WASHER (6X35)

93482-06035-08

$2.00

BOLT-WASHER (6X35) This part replaces 93492-06035-08.

93482-06035-08

$2.00

NUT, FLANGE (10MM)

94050-10080

$3.24
