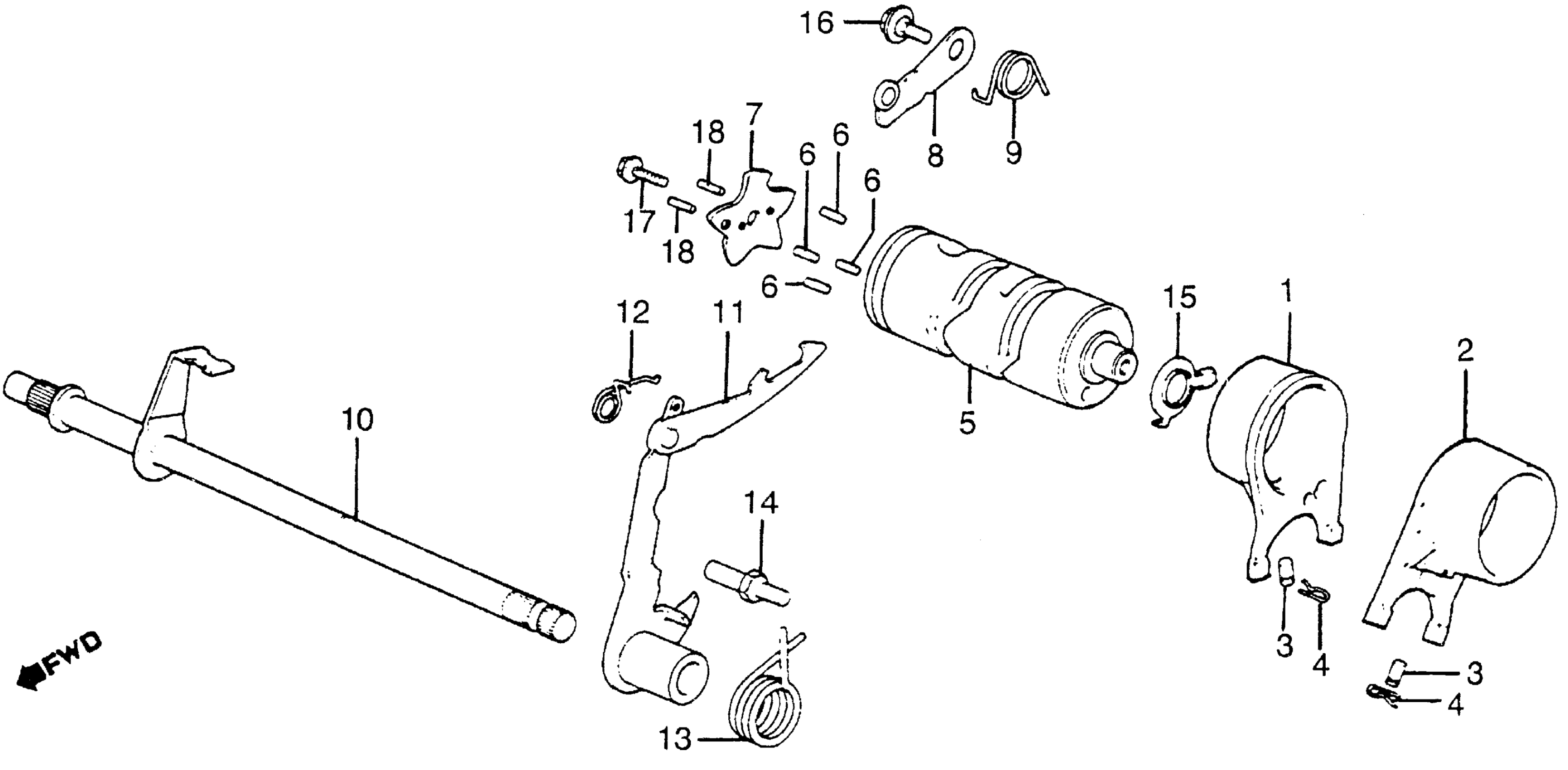

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 SHIFT DRUM Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-028-040

Unavailable

2

FORK, L. GEARSHIFT

24221-028-030

Unavailable

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

3

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

4

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

5

DRUM, GEARSHIFT

24301-102-722

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

PLATE, GEARSHIFT DRUM STOPPER

24425-350-020

Unavailable

8

ARM This part replaces 24430-028-603.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-000.

24430-459-950

$15.78

8

ARM This part replaces 24430-943-010.

24430-459-950

$15.78

9

SPRING, DRUM STOPPER

24435-051-000

Unavailable

10

SPINDLE, GEARSHIFT

24610-968-000

Unavailable

11

ARM, GEARSHIFT

24630-046-010

Unavailable

12

SPRING, GEARSHIFT ARM

24641-046-000

Unavailable

13

SPRING, GEARSHIFT RETURN This part replaces 24651-033-000.

24651-121-710

Unavailable

13

SPRING, GEARSHIFT RETURN This part replaces 24651-033-010.

24651-121-710

Unavailable

13

SPRING, GEARSHIFT RETURN

24651-121-710

Unavailable

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

ROTOR, NEUTRAL SWITCH

35753-KG2-951

$4.76

15

ROTOR, NEUTRAL SWITCH This part replaces 35753-028-601.

35753-KG2-951

$4.76

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

16

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

17

BOLT, DOWEL (6MM)

90071-171-010

$2.39

18

ROLLER (3X8.5)

96220-30085

$1.49
