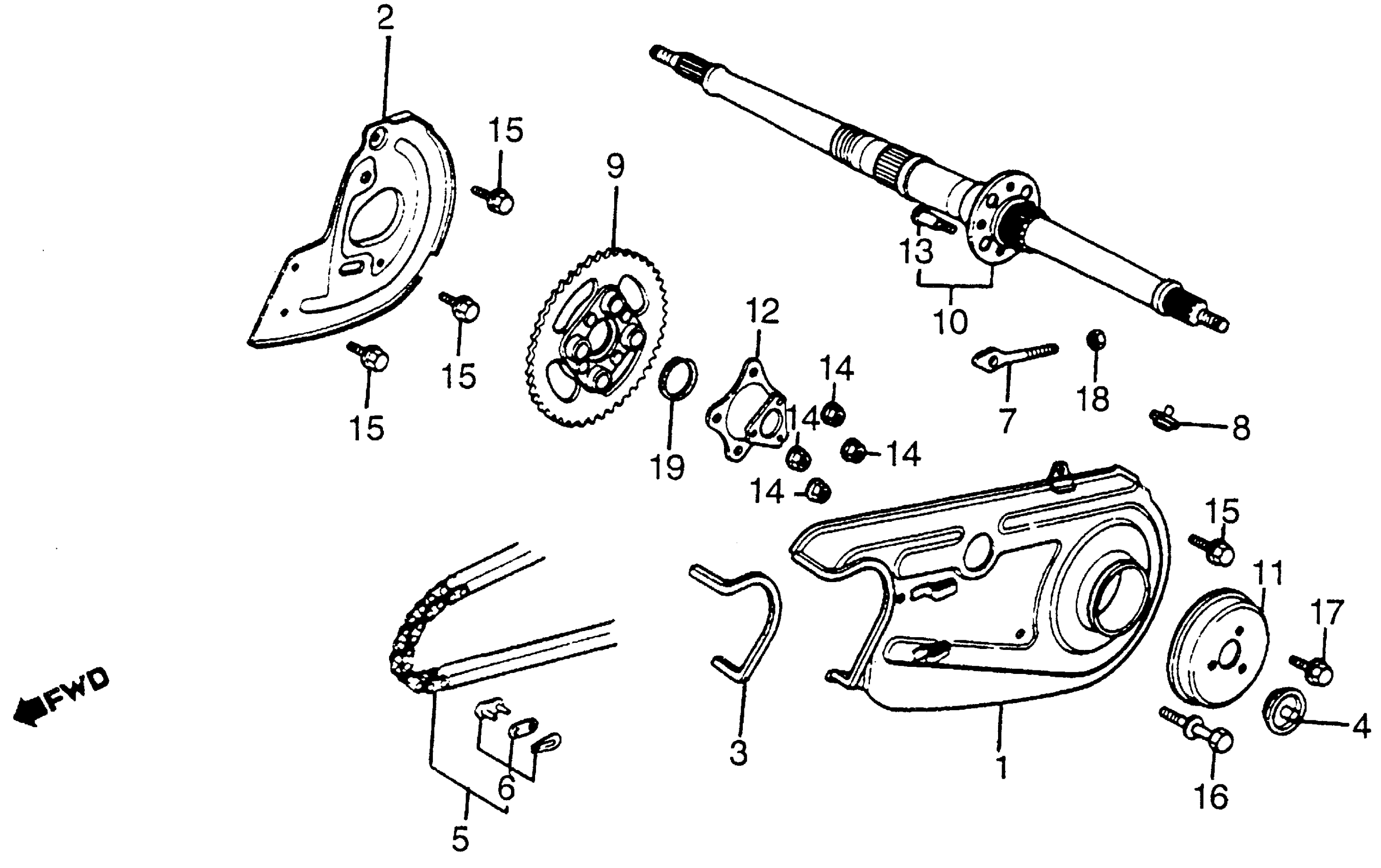

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 REAR WHEEL AXLE + CHAIN CASE Diagram

CASE, DRIVE CHAIN (NOT AVAILABLE)

40521-968-680

Unavailable

COVER, SUB-CHAIN (NOT AVAILABLE)

40523-968-680

Unavailable

SEAL B, CHAIN CASE (NOT AVAILABLE)

40525-918-300

Unavailable

CAP, CHAIN

40529-958-010

Unavailable

CHAIN, DRIVE (428V-92) (NOT AVAILABLE)

40530-VM6-003

Unavailable

CHAIN, DRIVE (428V-92) (NOT AVAILABLE) This part replaces 40530-968-000.

40530-VM6-003

Unavailable

MASTER LINK

40531-VM6-003

Unavailable

MASTER LINK This part replaces 40533-943-811.

40531-VM6-003

Unavailable

ADJUSTER, CHAIN

40543-HB3-000

$10.56

ADJUSTER, CHAIN This part replaces 40543-VM6-680.

40543-HB3-000

$10.56

ADJUSTER, CHAIN This part replaces 40543-958-010.

40543-HB3-000

$10.56

CAP, CHAIN

40545-958-000

Unavailable

SPROCKET ASSY., FINAL (NOT AVAILABLE)

41200-968-000

Unavailable

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-968-680

Unavailable

PLATE, SHIELD (NOT AVAILABLE)

42327-958-000

Unavailable

FLANGE, SHIELD (NOT AVAILABLE)

42330-958-671

Unavailable

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

NUT, FLANGE (8MM)

90309-428-731

$3.35

BOLT-WASHER (6X12)

93401-06012-08

$1.55

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

$1.55

BOLT-WASHER (6X55)

93491-06055-08

Unavailable

BOLT-WASHER (6X10)

93402-06010-08

$1.77

BOLT-WASHER (6X10) This part replaces 93492-06010-08.

93402-06010-08

$1.77

NUT, HEX. (8MM)

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-0S.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08080-05.

94001-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08200-0S.

94001-08000-0S

$1.49

RING, SNAP (42MM) (NOT AVAILABLE)

94564-42100

Unavailable
