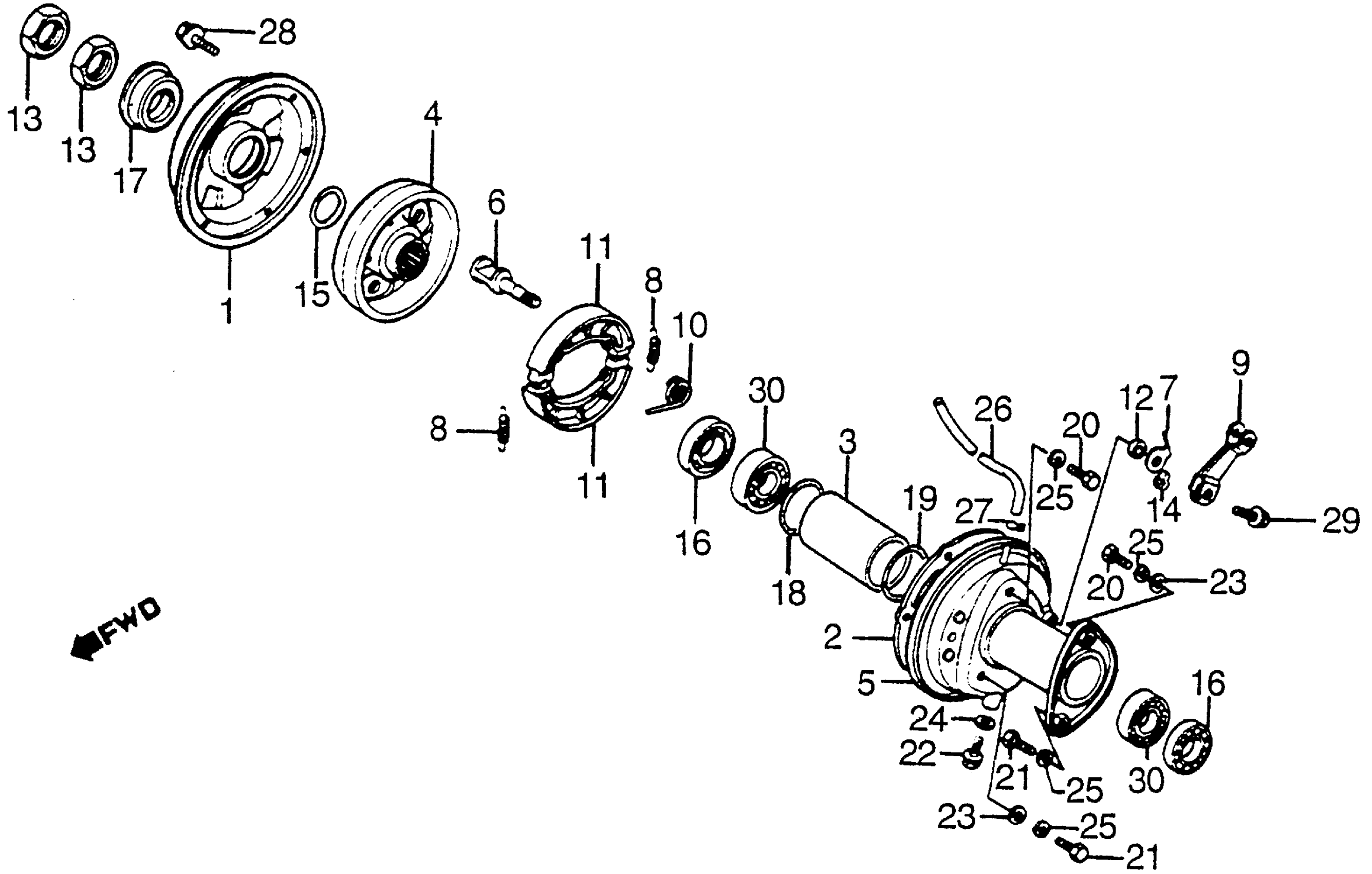

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 REAR BRAKE DRUM Diagram

#

Description
Price

1

COVER, BRAKE DRUM

40532-968-680

Unavailable

2

GASKET, BRAKE COVER

40539-968-000

Unavailable

3

COLLAR, RR. AXLE CENTER (NOT AVAILABLE)

42621-968-000

Unavailable

4

DRUM, RR. BRAKE (NOT AVAILABLE)

42622-VM4-680

Unavailable

5

HOLDER, BEARING & BRAKE (NOT AVAILABLE) This part replaces 43100-968-680.

43100-VM6-000

Unavailable

6

CAM, RR. BRAKE

43141-968-680

Unavailable

7

INDICATOR, BRAKE

43145-958-000

Unavailable

7

INDICATOR, BRAKE This part replaces 43145-968-680.

43145-958-000

Unavailable

8

SPRING, RR. BRAKE SHOE

43151-329-000

$2.75

9

ARM, RR. BRAKE (NOT AVAILABLE) This part replaces 43410-968-680.

43410-VM6-000

Unavailable

10

SPRING, RR. BRAKE ARM RETURN

43413-968-000

Unavailable

11

SHOE SET, BRAKE This part replaces 43120-968-681.

06430-HF7-A30

$32.48

11

SHOE SET, BRAKE This part replaces 45120-303-690.

06430-HF7-A30

$32.48

11

SHOE SET, BRAKE This part replaces 43120-968-682.

06430-HF7-A30

$32.48

12

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

13

NUT, RR. AXLE

90307-968-000

Unavailable

14

WASHER, ROTOR SETTING (NOT AVAILABLE)

90427-358-000

Unavailable

15

WASHER, TAPER

90481-HC4-000

$7.70

15

WASHER, TAPER This part replaces 90481-958-000.

90481-HC4-000

$7.70

16

DUST SEAL (42X62X7)

91252-958-013

$21.74

16

DUST SEAL (42X62X7) This part replaces 91252-958-014.

91252-958-013

$21.74

17

DUST SEAL (45X65X15)

91253-968-005

$29.38

18

O-RING (31.7X2.4)

91306-MA6-005

$3.44

18

O-RING (31.7X2.4) This part replaces 91307-958-003.

91306-MA6-005

$3.44

19

O-RING (32.5X1.8)

91316-PY4-003

$3.39

19

O-RING (32.5X1.8) This part replaces 91355-943-000.

91316-PY4-003

$3.39

20

BOLT, HEX. (12X25) This part replaces 92000-12025-0H.

92101-12025-0H

$2.57

20

BOLT, HEX. (12X25)

92101-12025-0H

$2.57

21

BOLT, HEX. (12X28) This part replaces 92000-12028-0H.

92101-12028-0H

$2.58

21

BOLT, HEX. (12X28)

92101-12028-0H

$2.58

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

WASHER, PLAIN (12MM)

94101-12800

$1.49

24

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

25

WASHER, SPRING (12MM)

94111-12800

$1.49

26

BULK HOSE, FUEL (3.5X3000) (3.5X630)

95001-35003-60M

$20.85

27

CLIP, TUBE (B7)

95002-02070

$1.80

28

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

28

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

29

BOLT, FLANGE (6X30) This part replaces 90007-PA9-000.

95701-06030-08

$2.06

29

BOLT, FLANGE (6X30)

95701-06030-08

$2.06

30

BEARING, RADIAL BALL (6007)

96150-60070-10

$25.42
