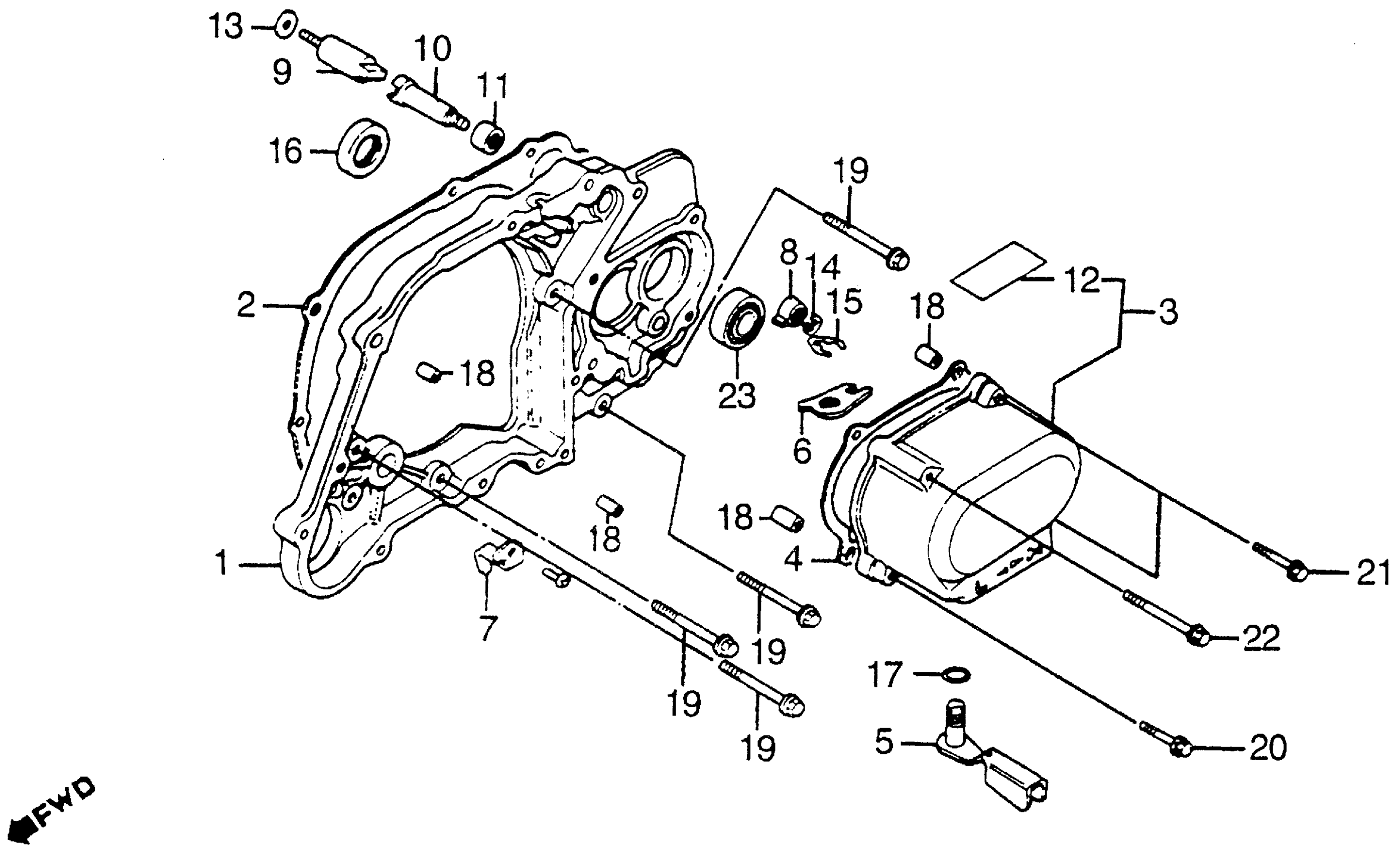

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 LEFT COVER SPACER + SUB-TRANSMISSION COVER Diagram

SPACER, L. COVER (NOT AVAILABLE)

11210-968-000

Unavailable

GASKET, L. SPACER This part replaces 11215-968-000.

11215-968-306

Unavailable

GASKET, L. SPACER

11215-968-306

Unavailable

COVER, SUB-TRANSMISSION (NOT AVAILABLE)

11370-968-000

Unavailable

GASKET, SUB-TRANSMISSION COVER This part replaces 11693-968-000.

11693-968-306

Unavailable

GASKET, SUB-TRANSMISSION COVER

11693-968-306

Unavailable

SHAFT, SUB-CHANGE (NOT AVAILABLE)

24821-968-000

Unavailable

ARM, SUB-CHANGE

24831-968-000

Unavailable

PLATE, STARTING GEAR SETTING

28123-968-000

Unavailable

INDICATOR, NEUTRAL

35762-HF7-000

$4.17

INDICATOR, NEUTRAL This part replaces 35762-918-020.

35762-HF7-000

$4.17

SHAFT A, NEUTRAL INDICATOR

35763-968-680

Unavailable

SHAFT B, NEUTRAL INDICATOR

35764-968-000

Unavailable

COLLAR, NEUTRAL INDICATOR SHAFT (NOT AVAILABLE)

35765-918-000

Unavailable

LABEL, TORQUE (E) (NOT AVAILABLE)

87131-968-300

Unavailable

WASHER, GEARSHIFT DRUM SIDE

90417-968-680

Unavailable

CIRCLIP (8.6MM)

90601-053-010

Unavailable

CIRCLIP (5MM)

90605-230-000

$2.92

OIL SEAL (31X43X7)

91202-968-013

Unavailable

O-RING (7.5X15)

91301-053-000

$2.92

O-RING (7.5X1.5)

91302-HB3-004

$2.18

PIN A, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

BOLT, FLANGE (6X35)

96001-06035-00

$1.49

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

BEARING, RADIAL BALL (6201)

96100-62010-00

$8.08
