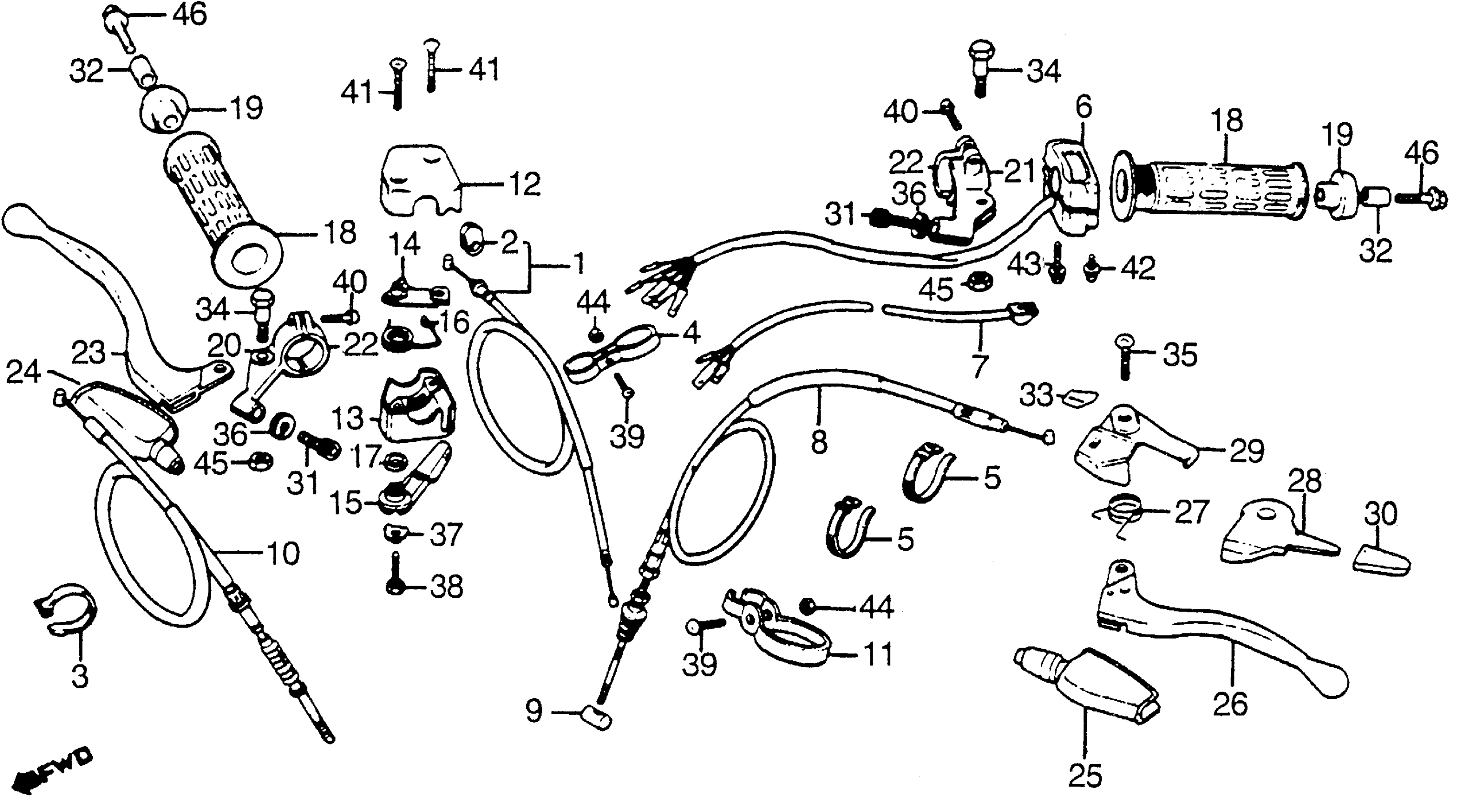

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 CONTROL LEVERS + CABLES + SWTICHES Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-968-000

Unavailable

2

GROMMET, THROTTLE CASE (NOT AVAILABLE)

17913-958-300

Unavailable

3

BAND, THROTTLE CABLE

17914-958-010

Unavailable

4

GUIDE, THROTTLE CABLE

17916-958-000

Unavailable

5

BAND B1, CABLE

32161-404-000

$2.23

6

SWITCH ASSY., LIGHTING & ENGINE STOP (NOT AVAILABLE)

35200-VM6-000

Unavailable

7

SWITCH ASSY., STARTING

35250-958-681

Unavailable

8

CABLE, BRAKE

43460-968-000

Unavailable

9

JOINT, BRAKE CABLE

43473-918-000

Unavailable

10

CABLE, FR. BRAKE

45450-968-000

Unavailable

11

GUIDE, BRAKE CABLE

45467-968-000

Unavailable

12

COVER, THROTTLE

53141-958-000

Unavailable

13

CASE, THROTTLE

53142-958-000

Unavailable

14

ARM, THROTTLE (NOT AVAILABLE)

53144-943-010

Unavailable

15

CONTROL LEVER, THROTTLE

53145-957-000

Unavailable

16

SPRING, THROTTLE CONTROL LEVER (NOT AVAILABLE)

53146-943-000

Unavailable

17

BUSH, THROTTLE LEVER (NOT AVAILABLE)

53148-957-003

Unavailable

18

GRIP, HANDLEBAR (NOT AVAILABLE)

53166-943-000

Unavailable

19

GUARD, HANDLEBAR END

53167-958-680

$6.40

20

BRACKET, R. HANDLE LEVER

53171-VM4-680

Unavailable

21

BRACKET, HANDLEBAR LEVER

53172-969-680

Unavailable

22

HOLDER, LEVER BRACKET

53173-958-000

$10.59

23

LEVER, R. HANDLEBAR

53175-VM6-000

Unavailable

24

COVER, R. HANDLE LEVER (NOT AVAILABLE)

53176-VM6-000

Unavailable

25

COVER, L. HANDLEBAR (NOT AVAILABLE)

53177-969-680

Unavailable

26

LEVER, L. HANDLEBAR (COO) This part replaces 53178-969-680.

53178-HP2-305

$22.95

27

SPRING, PARKING BRAKE LEVER

53191-961-010

$3.47

28

LEVER, PARKING LOCK

53192-HA0-770

Unavailable

28

LEVER, PARKING LOCK This part replaces 53192-VM6-000.

53192-HA0-770

Unavailable

30

CAP, PARKING LEVER

53193-HA0-770

$6.16

30

CAP, PARKING LEVER This part replaces 53193-VM6-000.

53193-HA0-770

$6.16

31

BOLT, WIRE ADJUSTING

53193-968-000

$14.08

32

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

34

BOLT, CONTROL LEVER PIVOT

90113-VM6-000

Unavailable

35

SCREW, PARKING BRAKE LEVER PIVOT

90115-961-000

$2.92

36

NUT, FIXING

90321-315-670

$7.31

36

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

37

WASHER, LOCK (5MM) (NOT AVAILABLE)

90501-957-000

Unavailable

38

BOLT, HEX. (5X22) This part replaces 92000-05022-0A.

92101-05022-0A

$1.49

38

BOLT, HEX. (5X22)

92101-05022-0A

$1.49

39

SCREW, PAN (4X20)

93500-04020-0A

$1.49

39

SCREW, PAN (4X20) This part replaces 93500-04020-1A.

93500-04020-0A

$1.49

40

SCREW, PAN (5X18)

93500-05018-0A

$1.49

41

SCREW, OVAL (5X22)

93700-05022-0B

$1.49

42

SCREW-WASHER (5X20)

93892-05020-07

$1.49

43

SCREW-WASHER (5X40)

93892-05040-07

Unavailable

44

NUT, HEX. (4MM)

94001-04000-0S

$1.49

45

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

45

NUT, HEX. (6MM)

94001-06200-0S

$1.49

46

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

46

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
