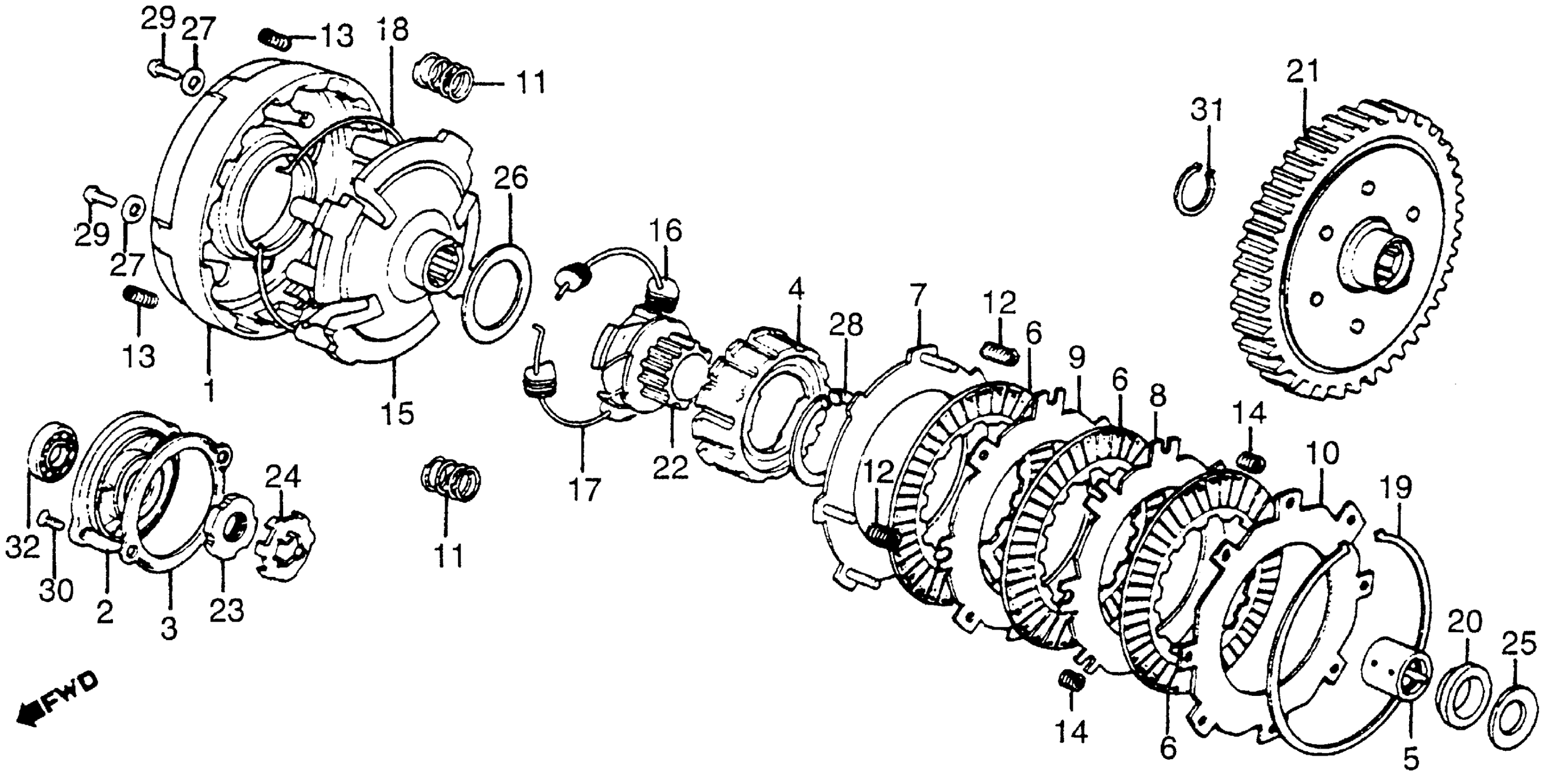

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-943-010

Unavailable

2

COVER, CLUTCH (OUTER)

22111-028-010

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22112-028-000.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-028-306.

22112-121-632

$3.60

3

GASKET, CLUTCH COVER This part replaces 22112-121-630.

22112-121-632

$3.60

4

CENTER, CLUTCH This part replaces 22121-096-701.

22121-096-702

Unavailable

4

CENTER, CLUTCH

22121-096-702

Unavailable

5

GUIDE, CLUTCH CENTER

22131-943-000

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-121-306.

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION

22201-121-631

$17.82

6

DISK, CLUTCH FRICTION This part replaces 22201-121-690.

22201-121-631

$17.82

7

PLATE A, CLUTCH

22311-968-000

Unavailable

8

PLATE B, CLUTCH

22321-046-020

$9.83

9

PLATE C, CLUTCH

22331-046-000

$9.37

10

PLATE D, CLUTCH

22341-943-000

$11.82

11

SPRING, CLUTCH

22401-968-010

$3.41

12

SPRING, CLUTCH FREE

22411-968-000

Unavailable

13

SPRING, CLUTCH DAMPER This part replaces 22421-001-000.

22421-035-000

$4.15

13

SPRING, CLUTCH DAMPER This part replaces 22421-028-000.

22421-035-000

$4.15

13

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

14

SPRING, CLUTCH SUB-FREE

22431-046-010

Unavailable

15

PLATE, DRIVE (NOT AVAILABLE)

22511-968-000

Unavailable

16

WEIGHT, CLUTCH

22531-033-020

Unavailable

17

RING, CLUTCH WEIGHT CENTER

22535-033-000

$5.56

18

RING, CLUTCH WEIGHT STOPPER

22536-033-000

$5.56

19

SET-RING (102.5MM)

22901-102-700

Unavailable

20

COLLAR (20MM) (NOT AVAILABLE)

22911-943-000

Unavailable

21

GEAR, PRIMARY DRIVEN (NOT AVAILABLE)

23110-968-000

Unavailable

22

GEAR, DRIVE (18T) This part replaces 23111-096-010.

23111-096-020

Unavailable

22

GEAR, DRIVE (18T)

23111-096-020

Unavailable

23

NUT, LOCK (16MM) This part replaces 90231-028-000.

90231-KCS-651

$4.21

24

WASHER, LOCK (16MM)

90431-028-010

$2.75

25

WASHER, LOCK

90432-121-000

$4.21

26

WASHER, THRUST (36MM)

90452-459-000

Unavailable

27

WASHER, STOPPER (5MM)

90483-178-000

$2.03

28

CIRCLIP (38MM)

90603-046-010

Unavailable

29

SCREW, PAN (5X8)

93500-05008-0H

$1.49

30

SCREW, FLAT (5X12)

93600-05012-0A

$1.49

31

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

31

CIRCLIP, OUTER (20MM) This part replaces 94510-20120.

94510-20000

$1.49

32

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
