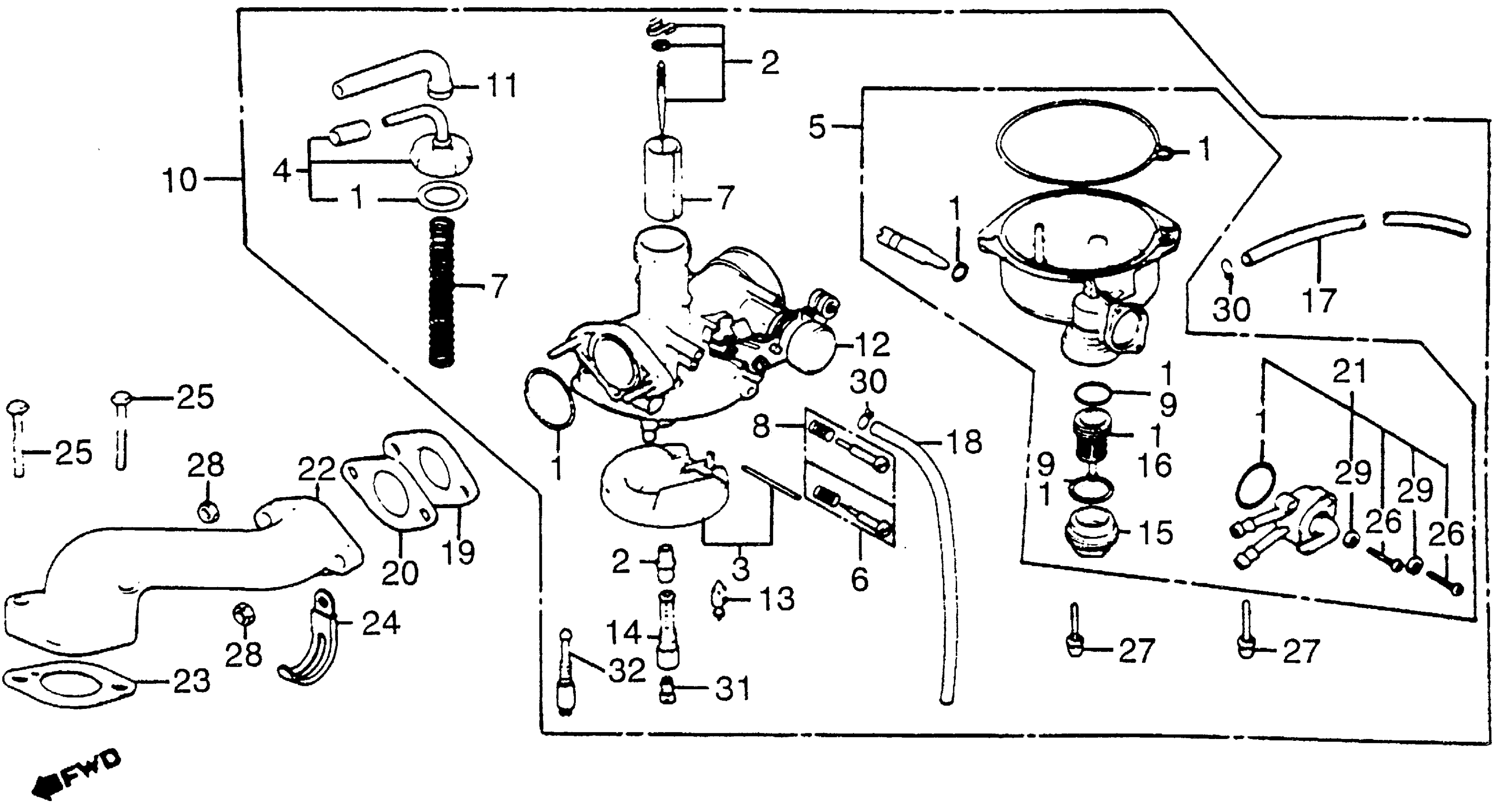

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-HB6-004.

16010-943-305

$40.94

1

GASKET SET

16010-943-305

$40.94

1

GASKET SET This part replaces 16010-968-003.

16010-943-305

$40.94

2

NEEDLE SET, JET

16012-968-003

Unavailable

3

FLOAT SET

16013-883-005

$29.08

4

TOP SET This part replaces 16014-943-003.

16014-943-801

Unavailable

4

TOP SET

16014-943-801

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE) | Use up to Frame SN PB01A A

16015-968-003

Unavailable

5

CHAMBER SET, FLOAT | Use from Frame SN PB01A B This part replaces 16015-968-013.

16015-968-023

Unavailable

5

CHAMBER SET, FLOAT | Use from Frame SN PB01A B

16015-968-023

Unavailable

6

SCREW SET, A

16016-GB5-305

Unavailable

6

SCREW SET, A

16016-GB5-681

$9.66

7

VALVE SET, THROTTLE

16022-VM6-004

Unavailable

7

VALVE SET, THROTTLE This part replaces 16022-968-003.

16022-VM6-004

Unavailable

8

SCREW SET B

16028-GC8-004

$16.35

8

SCREW SET B This part replaces 16028-187-003.

16028-GC8-004

$16.35

9

GASKET B SET

16040-GB0-911

Unavailable

10

CARBURETOR ASSY. | Use up to Frame SN FC124000 This part replaces 16100-968-013.

16100-VM6-024

Unavailable

10

CARBURETOR ASSY.

16100-VM6-024

Unavailable

10

CARBURETOR ASSY. | Use up to Frame SN FC124000

16100-VM6-024

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-968-023.

16100-VM6-024

Unavailable

10

CARBURETOR ASSY. | Use up to Frame SN FC124000 This part replaces 16100-968-023.

16100-VM6-024

Unavailable

10

CARBURETOR ASSY. This part replaces 16100-968-033.

16100-VM6-024

Unavailable

10

CARBURETOR ASSY. | Use up to Frame SN FC124000 This part replaces 16100-968-033.

16100-VM6-024

Unavailable

11

CAP, CABLE SEALING

16118-121-014

Unavailable

12

CAP, CHOKE LEVER DUST

16148-141-881

$4.75

12

CAP, CHOKE LEVER DUST This part replaces 16148-943-003.

16148-141-881

$4.75

13

VALVE, FLOAT

16155-883-005

$20.11

14

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-943-013

Unavailable

15

CUP, FUEL STRAINER

16175-GB0-911

$22.85

16

CUP, FILTER

16176-GB0-911

$18.37

17

TUBE, RUBBER

16199-435-771

$11.39

18

TUBE, AIR VENT

16199-943-003

Unavailable

19

INSULATOR, CARBURETOR This part replaces 16211-943-000.

16211-943-306

$6.39

19

INSULATOR, CARBURETOR

16211-943-306

$6.39

20

GASKET, CARBURETOR This part replaces 16212-943-000.

16212-943-306

$3.48

20

GASKET, CARBURETOR

16212-943-306

$3.48

21

BODY SET, PETCOCK | Use from Frame SN PB01A B

16951-943-801

$68.48

22

PIPE, INLET (NOT AVAILABLE)

17111-968-000

Unavailable

23

GASKET, IN. PIPE This part replaces 17119-035-000.

17119-088-832

$4.39

23

GASKET, IN. PIPE This part replaces 17119-035-306.

17119-088-832

$4.39

23

GASKET, IN. PIPE This part replaces 17119-088-830.

17119-088-832

$4.39

24

BAND, WIRE HARNESS

90651-MA6-720

$3.73

25

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25) This part replaces 92000-06025-0A.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25) This part replaces 92100-06025.

92101-06025-0A

$1.62

25

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

26

SCREW, PAN (3X12)

93500-03012-0H

$1.49

27

SCREW-WASHER (4X14)

93892-04014-08

$1.49

28

NUT, HEX. (6MM)

94001-06080-0S

$1.49

29

WASHER, SPRING (3MM)

94111-03000

$1.49

30

CLIP, TUBE (B6.5)

95002-02650

$1.49

31

JET, MAIN (#92) This part replaces 99101-116-0920.

99102-GHB-0920

$10.41

31

JET, MAIN (#92)

99102-GHB-0920

$10.41

32

JET, SLOW (#38)

99103-943-0380

Unavailable
