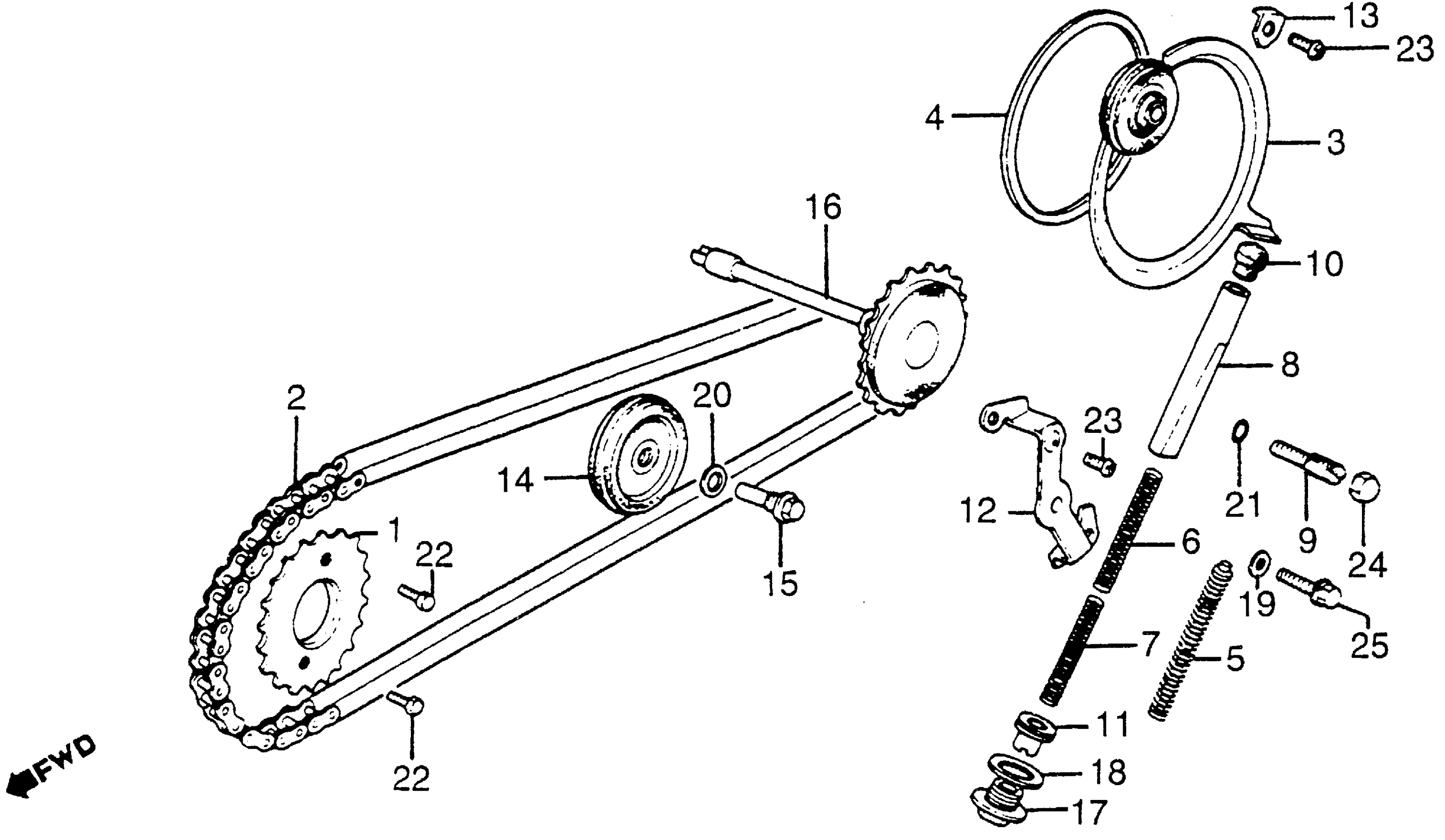

Honda ATC125MA (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC100001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (30T)

14321-028-000

Unavailable

2

CHAIN, CAM (25H-94)

14401-968-003

Unavailable

3

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-096-020

Unavailable

4

WASHER, THRUST (80MM)

14502-VM6-000

Unavailable

5

SPRING, CAM CHAIN TENSIONER This part replaces 14541-GB0-910.

14541-GB4-681

$4.75

5

SPRING, CAM CHAIN TENSIONER

14541-GB4-681

$4.75

8

ROD, CAM CHAIN TENSIONER PUSH This part replaces 14550-GB0-910.

14550-GB0-911

$21.35

8

ROD, CAM CHAIN TENSIONER PUSH

14550-GB0-911

$21.35

10

HEAD, CAM CHAIN TENSIONER PUSH ROD

14566-086-030

$2.33

12

PLATE, TENSIONER SETTING

14592-968-000

Unavailable

13

PLATE B, CAM CHAIN TENSIONER SETTING

14593-028-010

Unavailable

14

ROLLER, CAM CHAIN GUIDE This part replaces 14610-105-690.

14610-105-691

Unavailable

14

ROLLER, CAM CHAIN GUIDE

14610-105-691

Unavailable

15

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

15

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

16

SPROCKET, CAM CHAIN GUIDE (NOT AVAILABLE)

14670-968-000

Unavailable

17

BOLT, SEALING (14MM)

90081-035-000

$4.24

18

WASHER, SEALING (14MM)

90441-035-000

$2.39

19

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

20

WASHER (8MM)

90481-035-000

$1.87

22

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

22

BOLT, HEX. (6X10) This part replaces 92000-06010-0A.

92101-06010-0A

$1.49

22

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

23

SCREW, PAN (6X12)

93500-06012-0A

$1.49

25

BOLT, FLANGE (6X18) BOLT, HEX. (6X18) This part replaces 95700-06018-00.

95701-06018-00

$1.62

25

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
