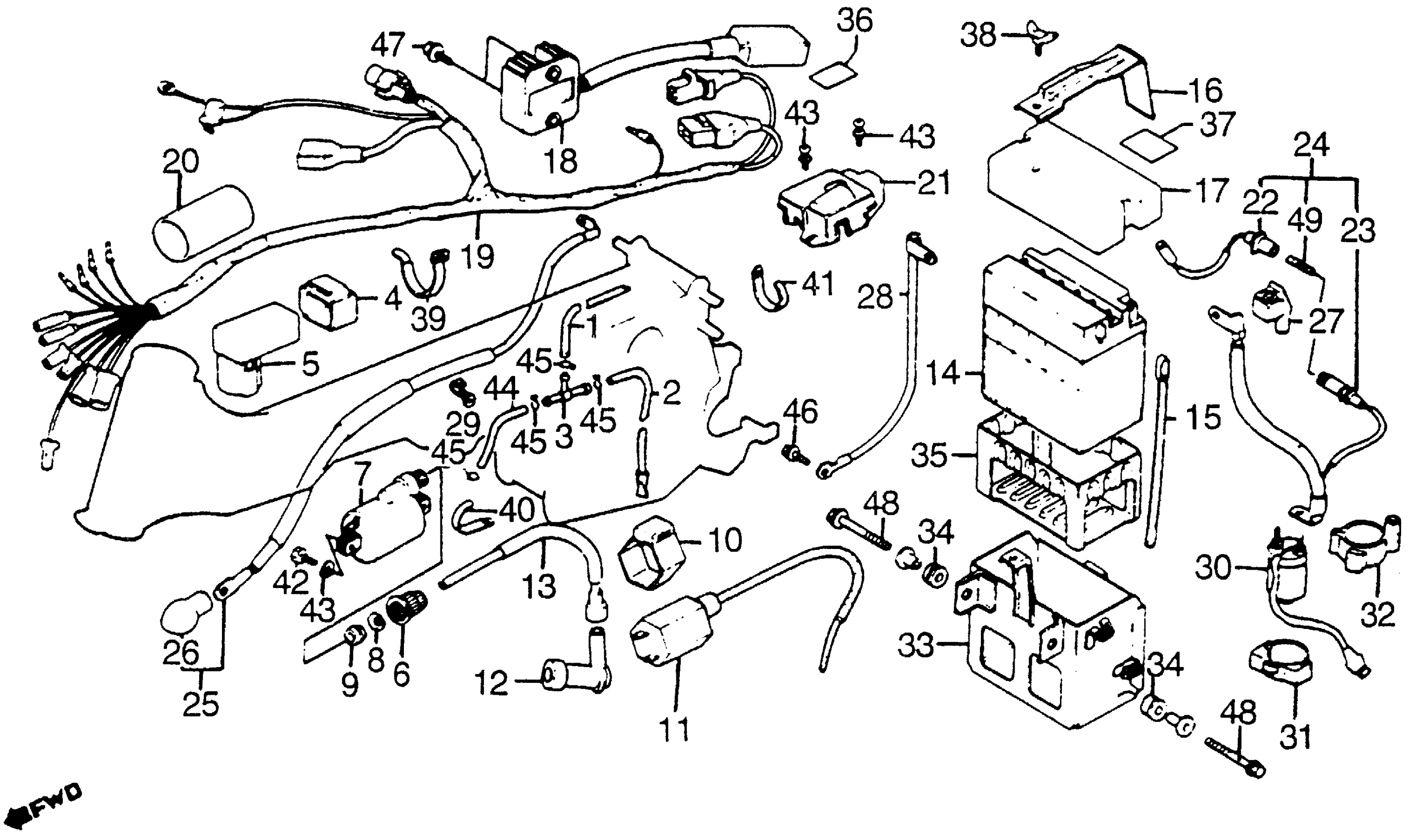

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 WIRE HARNESS + COIL + BATTERY Diagram

#

Description
Price

1

TUBE, DRAIN (NOT AVAILABLE)

15720-968-000

Unavailable

2

TUBE, BREATHER

15721-968-000

Unavailable

3

JOINT, FUEL

16235-657-000

$12.13

4

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.72

5

MODULE, IGNITION CONTROL (CDI)

30410-968-003

Unavailable

6

CAP, SCREW

30501-428-003

Unavailable

7

COIL, IGNITION This part replaces 30501-958-000.

30510-167-003

Unavailable

7

COIL, IGNITION

30510-167-003

Unavailable

8

SEAL, RUBBER

30502-428-003

$1.49

9

WASHER, CAP

30503-428-003

$1.52

12

CAP ASSY., NOISE SUPPRESSOR

30700-GJ5-010

Unavailable

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-968-003.

30700-GJ5-010

Unavailable

13

WIRE, IGNITION

30750-MA0-P00

Unavailable

13

WIRE, IGNITION This part replaces 30750-MA0-000.

30750-MA0-P00

Unavailable

13

WIRE, IGNITION This part replaces 30750-MA0-405.

30750-MA0-P00

Unavailable

13

WIRE, IGNITION This part replaces 30750-167-013.

30750-MA0-P00

Unavailable

13

WIRE, IGNITION This part replaces 30750-968-000.

30750-MA0-P00

Unavailable

14

BATTERY (YB9A-A) This part replaces 31500-968-003.

31500-968-013AH

Unavailable

14

BATTERY (YB9A-A) This part replaces 31500-968-013.

31500-968-013AH

Unavailable

15

PIPE, BREATHER (NOT AVAILABLE)

31502-968-010

Unavailable

16

HOLDER, BATTERY BOX (NOT AVAILABLE)

31512-968-000

Unavailable

17

COVER, BATTERY (NOT AVAILABLE)

31513-968-000

Unavailable

18

RECTIFIER ASSY., REGULATOR

31600-968-003

Unavailable

19

WIRE HARNESS (NOT AVAILABLE)

32100-968-000

Unavailable

20

COVER, CONNECTOR (NOT AVAILABLE)

32103-968-000

Unavailable

21

COVER, WIRE HARNESS (NOT AVAILABLE)

32105-968-000

Unavailable

22

CASE, FUSE CONNECTOR

32111-230-000

$4.28

23

CONNECTOR, FUSE

32112-230-000

$3.64

24

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-968-010

Unavailable

25

CABLE, STARTER MOTOR

32402-968-010

Unavailable

26

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

26

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

27

COVER, BATTERY TERMINAL

32412-471-000

Unavailable

28

CABLE, BATTERY GROUND

32601-968-000

Unavailable

29

CLAMP, CABLE

32906-968-000

Unavailable

30

SWITCH ASSY., STARTER MAGNETIC (NOT AVAILABLE)

35850-968-000

Unavailable

31

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

32

COVER, MAGNETIC SWITCH (NOT AVAILABLE) This part replaces 35857-968-000.

35857-969-000

Unavailable

32

COVER, MAGNETIC SWITCH (NOT AVAILABLE)

35857-969-000

Unavailable

33

BOX, BATTERY This part replaces 50325-968-000.

50325-968-010

Unavailable

34

RUBBER, BATTERY BOX MOUNTING (NOT AVAILABLE)

50329-968-000

Unavailable

35

RUBBER, BATTERY

50334-968-000

Unavailable

36

LABEL, MAIN FUSE (NOT AVAILABLE)

87136-VM3-000

Unavailable

37

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-968-010

Unavailable

38

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

39

BAND, WIRE HARNESS

90651-MA6-720

$3.73

40

CLIP, CORD

90686-968-003

Unavailable

41

CLIP, CABLE

91405-671-000

$9.00

42

BOLT, HEX. (5X18) (NOT AVAILABLE)

92000-05018-0H

Unavailable

43

WASHER, SPRING (5MM)

94111-05800

$1.49

43

SCREW-WASHER (6X12)

93891-06012-08

$1.49

44

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

45

CLIP, TUBE (B10)

95002-02100

$1.90

47

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

47

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

48

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

48

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

49

FUSE B (7A)

98200-20700

$1.49
