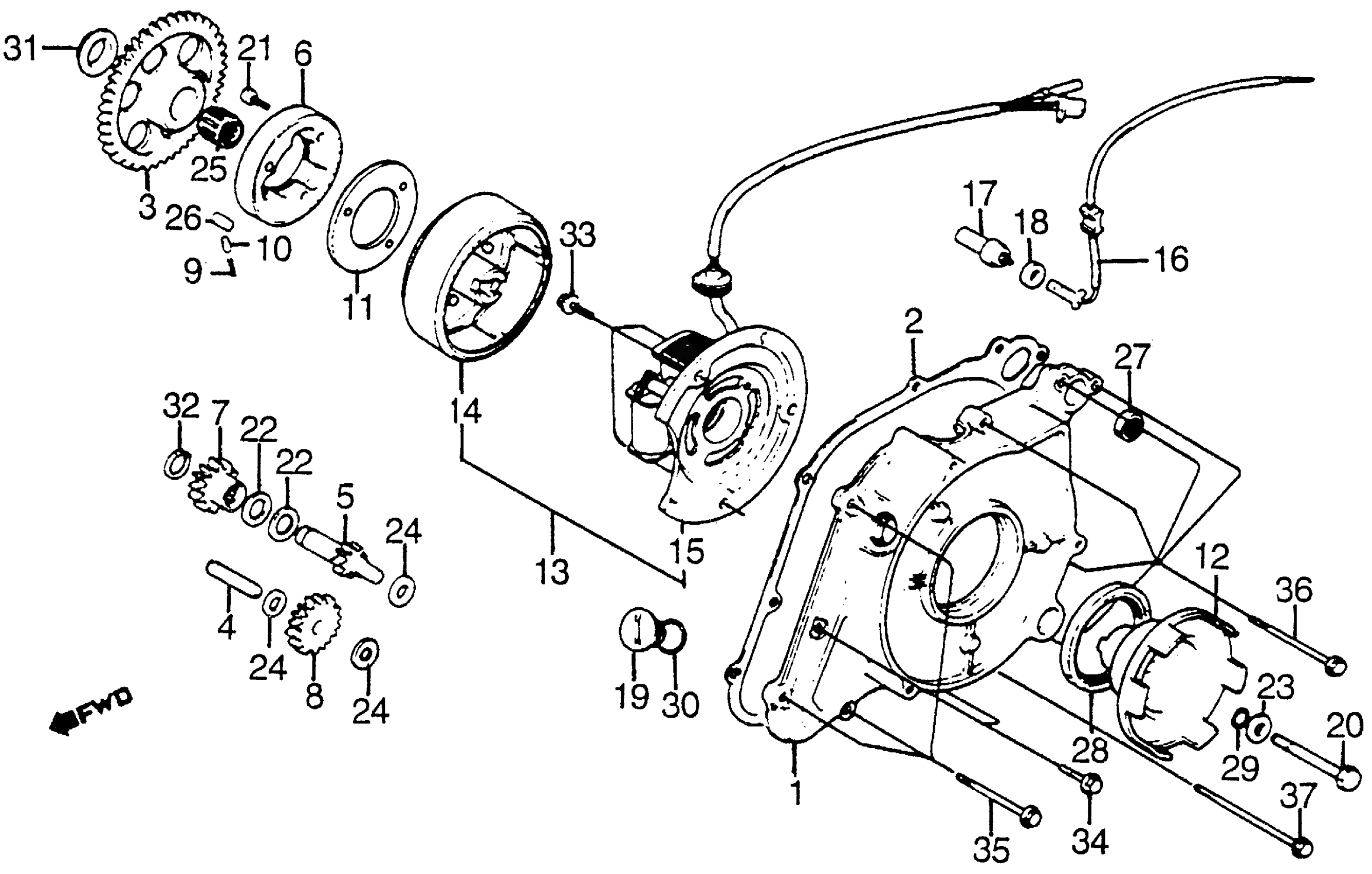

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 LEFT CRANKCASE COVER + ALTERNATOR Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-968-000

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-968-000.

11395-968-306

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-968-306

Unavailable

3

GEAR, STARTER DRIVEN

28110-958-680

Unavailable

4

SHAFT A, IDLE (NOT AVAILABLE)

28115-968-000

Unavailable

5

SHAFT B, STARTER IDLE

28116-968-010

Unavailable

6

CLUTCH, STARTER (OUTER)

28120-426-000

Unavailable

7

GEAR A, STARTER IDLE

28121-968-010

Unavailable

8

GEAR B, STARTER IDLE (NOT AVAILABLE)

28122-968-000

Unavailable

9

SPRING, STARTER CLUTCH ROLLER

28125-426-000

$2.61

10

CAP, STARTER CLUTCH ROLLER SPRING

28126-323-000

$5.05

11

PLATE, STARTER CLUTCH SIDE

28128-958-680

Unavailable

12

PULLEY, RECOIL STARTER

28431-968-010

Unavailable

13

ALTERNATOR ASSY. This part replaces 31100-968-004.

31100-968-415

Unavailable

13

ALTERNATOR ASSY. This part replaces 31100-968-405.

31100-968-415

Unavailable

13

ALTERNATOR ASSY.

31100-968-415

Unavailable

14

ROTOR

31110-VM5-004

Unavailable

14

ROTOR This part replaces 31110-968-004.

31110-VM5-004

Unavailable

15

STATOR This part replaces 31120-968-004.

31120-968-415

Unavailable

15

STATOR This part replaces 31120-968-405.

31120-968-415

Unavailable

15

STATOR

31120-968-415

Unavailable

16

WIRE, NEUTRAL (NOT AVAILABLE) This part replaces 32170-968-000.

32170-968-010

Unavailable

16

WIRE, NEUTRAL (NOT AVAILABLE)

32170-968-010

Unavailable

17

CONTACT ASSY., NEUTRAL SWITCH

35750-071-030

Unavailable

18

SPACER, NEUTRAL SWITCH

35752-071-330

Unavailable

19

CAP, IGNITION TIMING

90081-958-680

Unavailable

20

BOLT (8MM)

90083-958-680

Unavailable

21

BOLT, SOCKET (6MM)

90085-413-781

$4.06

22

WASHER, THRUST (15MM)

90412-187-000

$2.05

23

WASHER, ROTOR SETTING

90426-437-000

$6.57

24

WASHER (10X21)

90452-187-000

$2.36

25

BEARING, NEEDLE (20x26x17) (TOYO)

91021-689-902

Unavailable

26

ROLLER (10.2X11.5)

91101-377-000

$3.01

27

OIL SEAL (12X21X4) (ARAI) This part replaces 91201-035-013.

91201-035-015

$4.78

27

OIL SEAL (12X21X4) (ARAI)

91201-035-015

$4.78

28

OIL SEAL (45X60X9)

91204-968-013

$20.47

29

O-RING (7.7X1.9) (NOK)

91311-PA9-004

$3.11

30

O-RING (18X2.4)

91310-PH3-003

$2.44

30

O-RING (18X2.4) This part replaces 91333-422-003.

91310-PH3-003

$2.44

31

COLLAR, SPECIAL

91501-968-000

Unavailable

32

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

33

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

33

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

34

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

34

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

35

BOLT, FLANGE (6X50) This part replaces 96000-06050-00.

96001-06050-00

$2.16

35

BOLT, FLANGE (6X50)

96001-06050-00

$2.16

36

BOLT, FLANGE (6X55) This part replaces 96000-06055-00.

96001-06055-00

$1.62

36

BOLT, FLANGE (6X55)

96001-06055-00

$1.62

37

BOLT, FLANGE (6X65) This part replaces 96000-06065-00.

96001-06065-00

$2.34

37

BOLT, FLANGE (6X65)

96001-06065-00

$2.34
