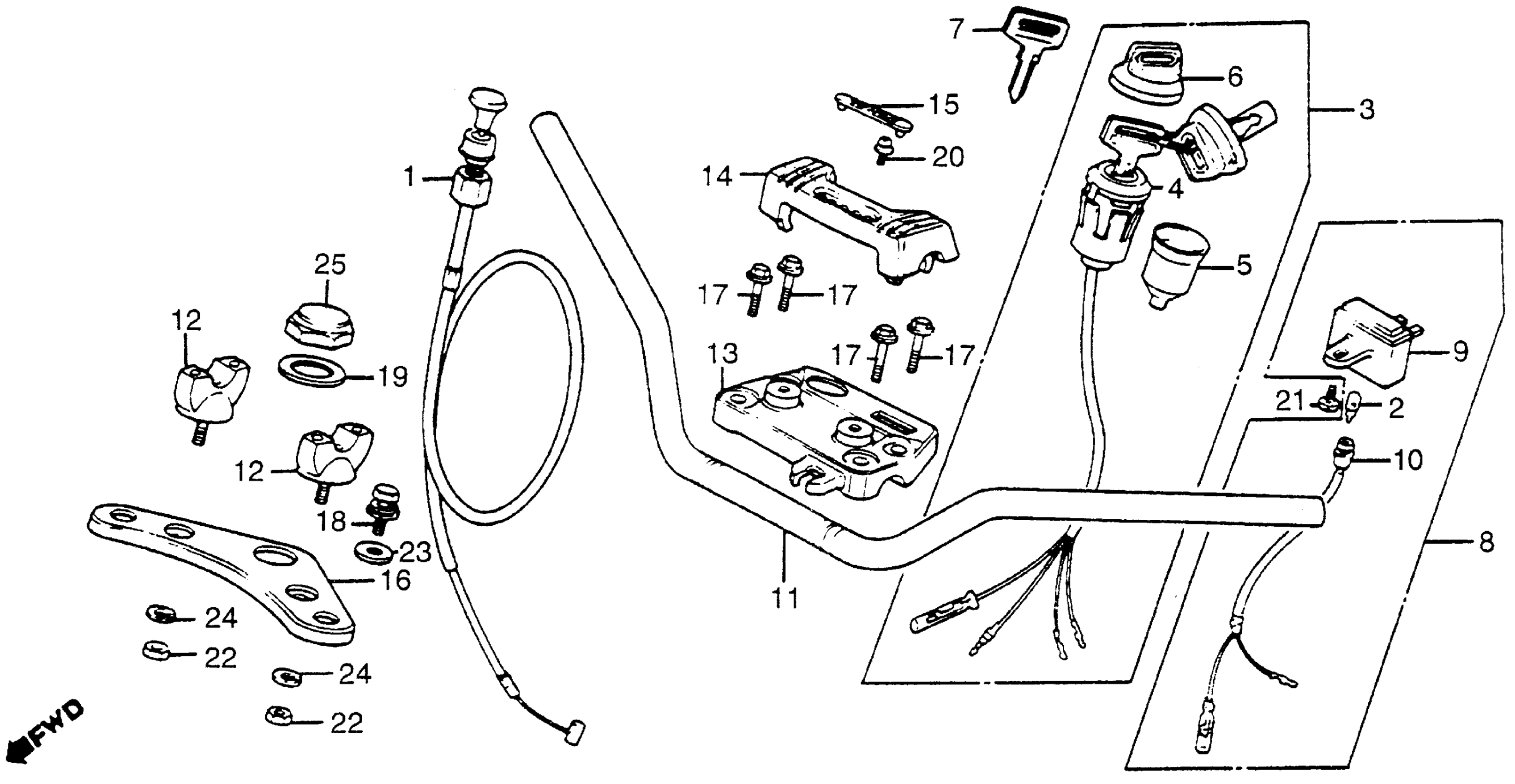

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

CABLE, CHOKE

17950-968-000

Unavailable

2

BULB 12V 2.3W WED This part replaces 34908-MB0-003.

34275-S2X-003

$3.28

3

LOCK SET

35010-958-680

Unavailable

4

LOCK SET

35010-958-680

Unavailable

4

LOCK SET This part replaces 35100-958-681.

35010-958-680

Unavailable

5

COVER, COMBINATION SWITCH (NOT AVAILABLE)

35105-958-680

Unavailable

6

CAP, COMBINATION SWITCH KEY

35113-958-681

Unavailable

8

INDICATOR ASSY., NEUTRAL

38400-968-003

Unavailable

9

CASE, NEUTRAL INDICATOR

38401-968-003

Unavailable

10

SOCKET

38402-968-003

Unavailable

11

HANDLEBAR

53100-968-000

Unavailable

12

HOLDER, HANDLE (LOWER) This part replaces 53130-HA7-670.

53130-HB9-000

Unavailable

12

HOLDER, HANDLE (LOWER) This part replaces 53130-958-000.

53130-HB9-000

Unavailable

13

HOLDER, HANDLEBAR (UPPER)

53131-968-000

Unavailable

14

COVER, HANDLEBAR (NOT AVAILABLE)

53205-958-682

Unavailable

15

LABEL, HANDLEBAR COVER (NOT AVAILABLE)

53206-958-003

Unavailable

16

BRIDGE, FORK TOP

53231-968-000

Unavailable

17

BOLT, FLANGE (8X36) This part replaces 90111-402-700.

90111-362-000

$4.80

18

BOLT-WASHER (12X25)

90115-958-681

Unavailable

19

WASHER, STEERING STEM

90482-968-000

Unavailable

20

SCREW-WASHER (6X20)

93891-06020-08

$1.80

21

SCREW, TAPPING (4X12)

93903-34320

$1.49

22

NUT, HEX. (10MM)

94001-10080-0S

$1.49

23

WASHER, PLAIN (12MM)

94101-12000

$1.49

24

WASHER, SPRING (10MM)

94111-10800

$1.49

25

NUT, STEERING STEM

90304-159-000

$7.02

25

NUT, STEERING STEM This part replaces 95020-11100.

90304-159-000

$7.02
