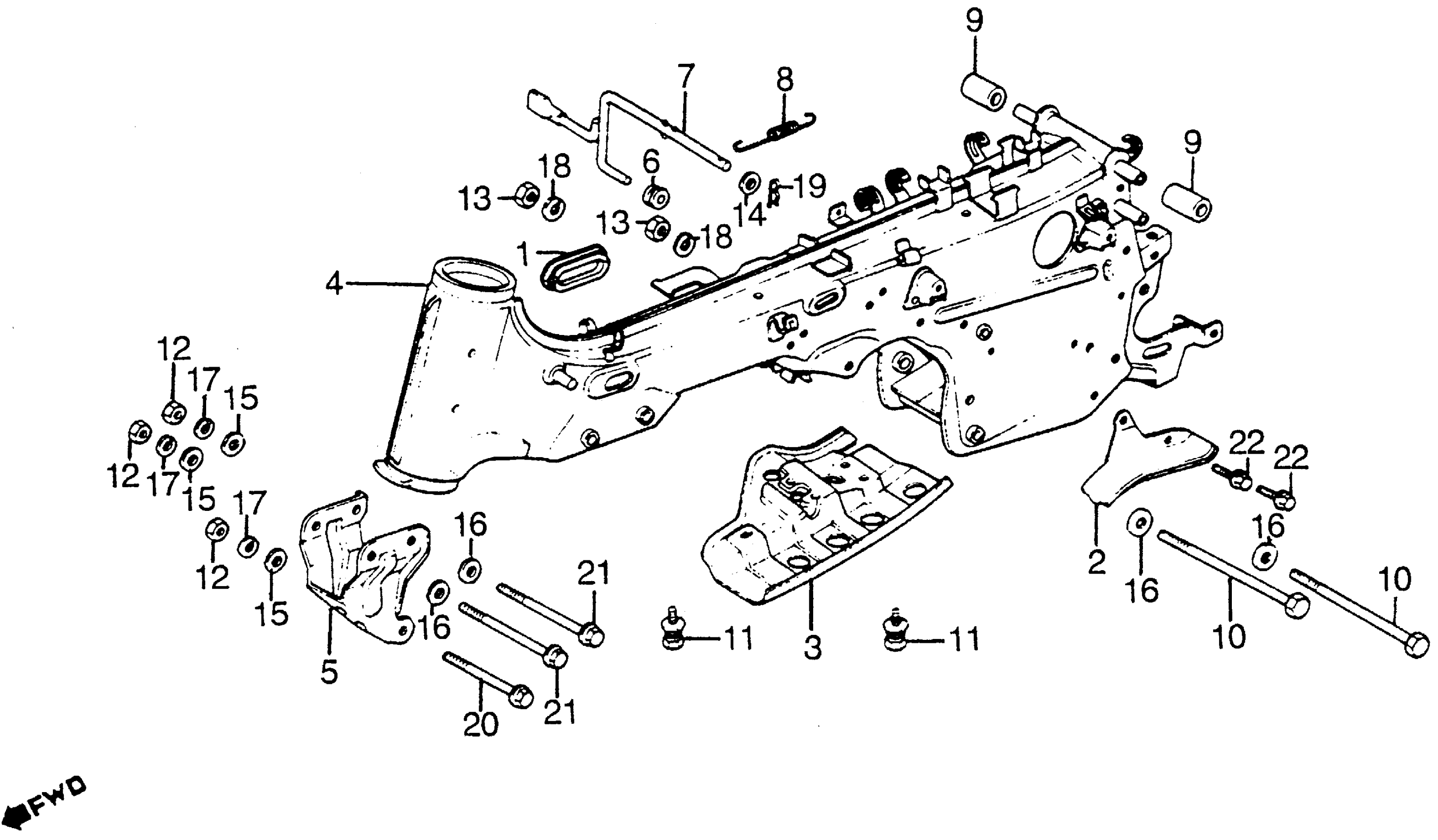

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 FRAME Diagram

#

Description
Price

1

GROMMET, WIRE HARNESS (NOT AVAILABLE)

32984-918-000

Unavailable

2

GUIDE, CHAIN (NOT AVAILABLE)

40526-968-000

Unavailable

3

PLATE, PROTECTOR

40528-968-000

Unavailable

4

FRAME

50100-968-000

Unavailable

5

HANGER, ENGINE (NOT AVAILABLE) This part replaces 50121-968-000.

50121-968-680

Unavailable

5

HANGER, ENGINE (NOT AVAILABLE)

50121-968-680

Unavailable

6

GROMMET, SEAT LOCK LEVER

50220-943-000

Unavailable

7

LEVER, SEAT LOCK (NOT AVAILABLE)

50221-943-010

Unavailable

8

SPRING, COVER SETTING (NOT AVAILABLE)

50222-918-000

Unavailable

9

RUBBER, SEAT MOUNTING

50801-918-000

Unavailable

10

BOLT, HEX. (10X120) This part replaces 92000-10120-0A.

92101-10120-0A

$3.17

10

BOLT, HEX. (10X120)

92101-10120-0A

$3.17

11

BOLT-WASHER (8X16)

93403-08016-08

$1.89

11

BOLT-WASHER (8X16) This part replaces 93493-08016-08.

93403-08016-08

$1.89

12

NUT, HEX. (8MM)

94001-08000-0S

$1.49

13

NUT, HEX. (10MM)

94001-10000-0S

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, PLAIN (8MM)

94101-08000

$1.49

16

WASHER, PLAIN (10MM)

94101-10000

$1.49

17

WASHER, SPRING (8MM)

94111-08000

$1.49

18

WASHER, SPRING (8MM)

94111-10000

$1.49

19

PIN, LOCK (6MM)

94251-06400

Unavailable

20

BOLT, FLANGE (8X55) This part replaces 95700-08055-00.

95701-08055-00

$2.28

20

BOLT, FLANGE (8X55)

95701-08055-00

$2.28

21

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.64

21

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

22

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

22

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
