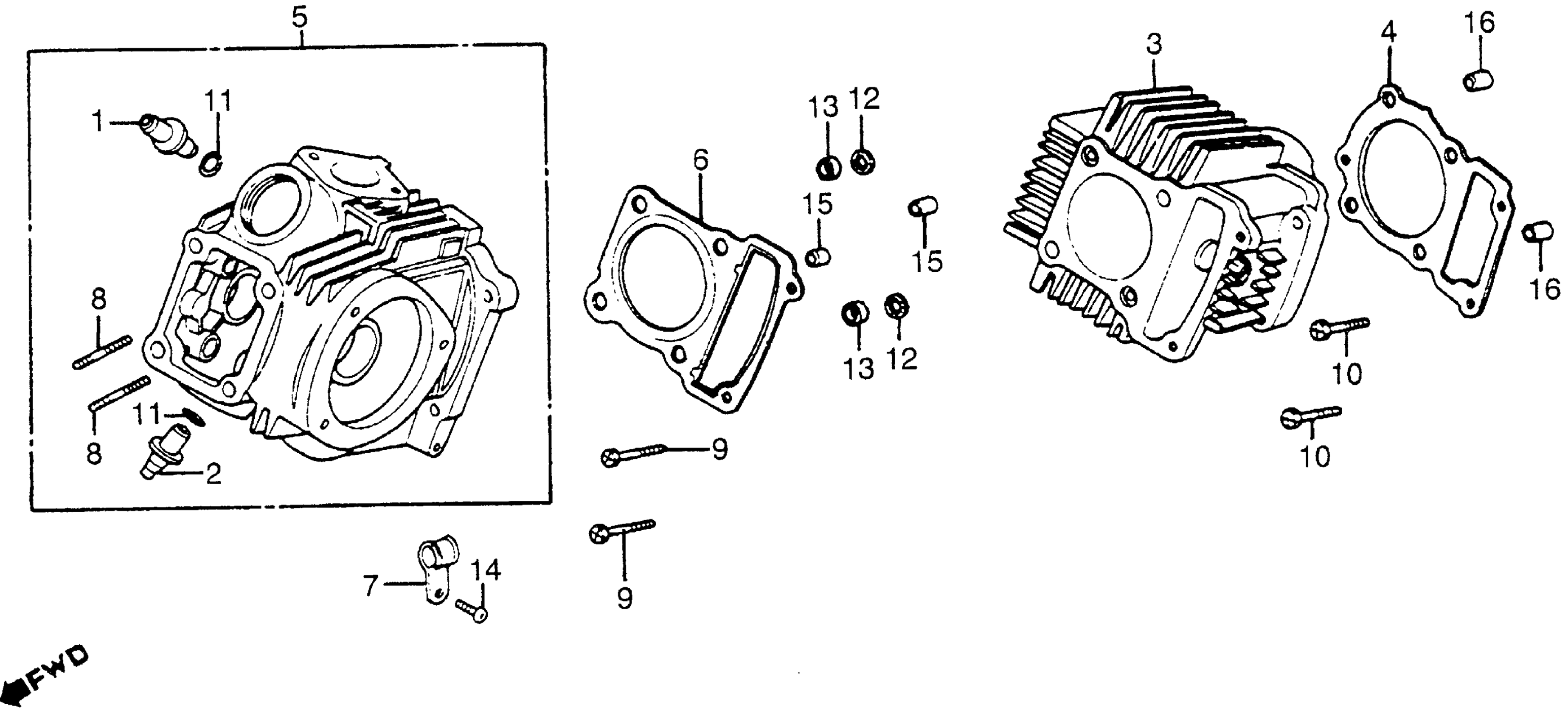

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 CYLINDER HEAD CYLINDER Diagram

#

Description
Price

1

GUIDE, VALVE

12021-459-300

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-459-300.

12231-VM6-405

Unavailable

2

GUIDE, EX. VALVE

12231-VM6-405

Unavailable

3

CYLINDER | Use up to Engine SN 2045118 This part replaces 12100-968-000.

12100-VM6-405

Unavailable

3

CYLINDER This part replaces 12100-968-010.

12100-VM6-405

Unavailable

4

GASKET, CYLINDER (ARAI) This part replaces 12191-VM6-000.

12191-VM6-306

$9.51

4

GASKET, CYLINDER (ARAI) This part replaces 12191-968-000.

12191-VM6-306

$9.51

4

GASKET, CYLINDER (ARAI) This part replaces 12191-VM6-003.

12191-VM6-306

$9.51

4

GASKET, CYLINDER (ARAI)

12191-VM6-306

$9.51

5

CYLINDER HEAD This part replaces 12200-459-000.

12200-459-010

Unavailable

5

CYLINDER HEAD

12200-459-010

Unavailable

6

GASKET ASSY., CYLINDER HEAD (ARAI) This part replaces 12250-VM6-000.

12250-VM6-003

$19.80

6

GASKET ASSY., CYLINDER HEAD (ARAI) This part replaces 12250-VM6-004.

12250-VM6-003

$19.80

6

GASKET ASSY., CYLINDER HEAD (ARAI) This part replaces 12251-VM6-000.

12250-VM6-003

$19.80

6

GASKET ASSY., CYLINDER HEAD (ARAI) This part replaces 12251-968-000.

12250-VM6-003

$19.80

6

GASKET ASSY., CYLINDER HEAD (ARAI)

12250-VM6-003

$19.80

7

CLIP, PULSER WIRE

32902-943-000

Unavailable

8

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

9

BOLT (6MM)

90082-035-010

$2.39

10

BOLT, SEALING (6MM) (NOT AVAILABLE)

90082-459-010

Unavailable

11

O-RING (9X1.6) (ARAI) This part replaces 91305-028-158.

91305-028-900

$2.92

11

O-RING (9X1.6)

91305-028-900

$2.92

12

GASKET, RUBBER (7.5MM)

91306-968-004

Unavailable

13

COLLAR

91502-968-000

Unavailable

14

SCREW, PAN (6X10) This part replaces 93500-06010.

93500-06010-0A

$1.49

14

SCREW, PAN (6X10)

93500-06010-0A

$1.49

15

PIN A, DOWEL (10X14)

94301-10140

$2.28

16

PIN A, DOWEL (10X16)

94301-10160

$2.28
