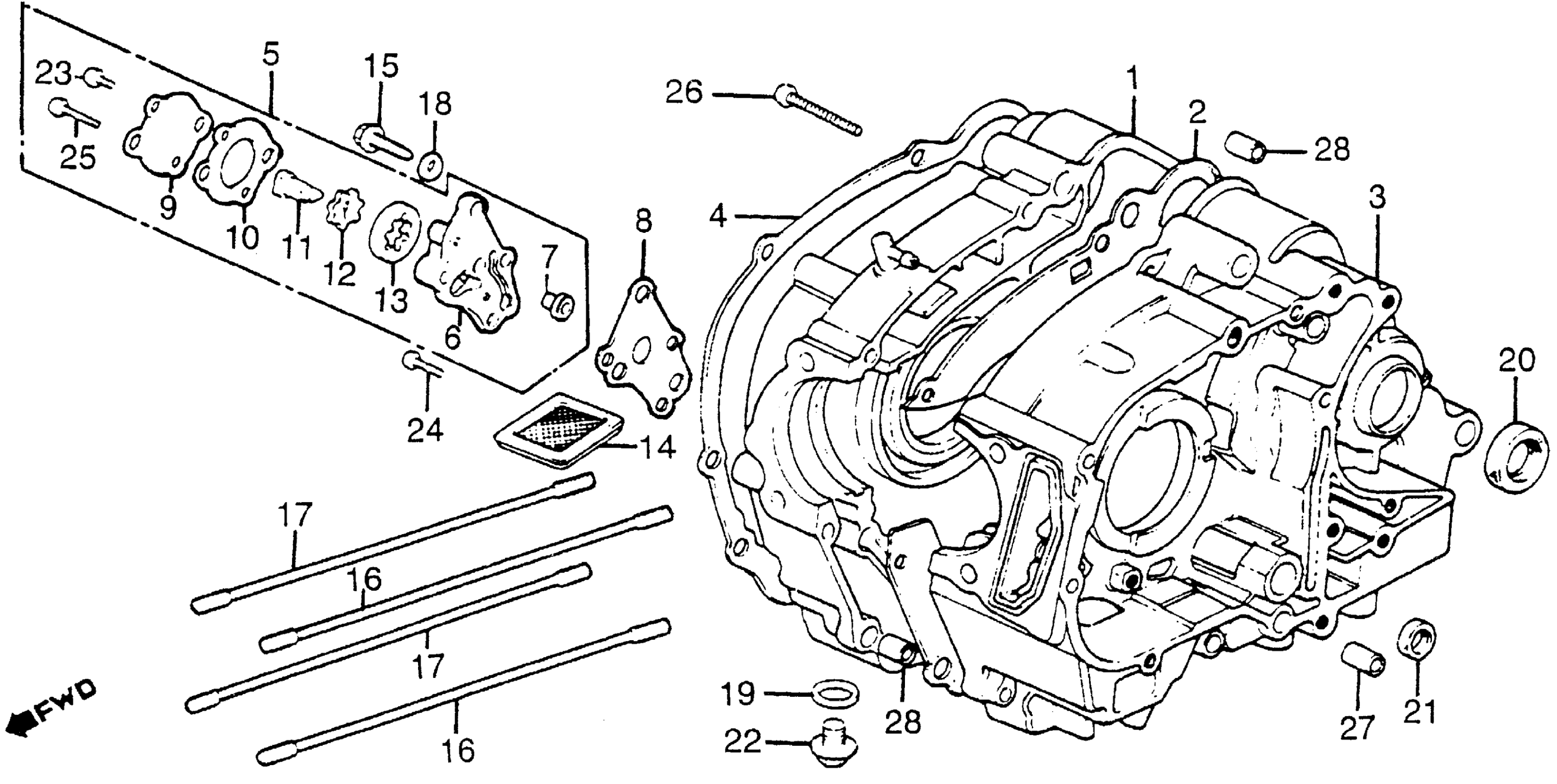

Honda ATC125MA (84) ALL TERRAIN CYCLE, JPN, VIN# JH3TE010-EC000001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. This part replaces 11100-968-000.

11100-968-010

Unavailable

1

CRANKCASE, R.

11100-968-010

Unavailable

2

GASKET, CRANKCASE | Use up to Engine SN 2024149 This part replaces 11191-968-000.

11191-968-306

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-968-010.

11191-968-306

Unavailable

3

CRANKCASE, L. | Use up to Engine SN 2024149 This part replaces 11200-968-000.

11200-968-010

Unavailable

3

CRANKCASE, L.

11200-968-010

Unavailable

4

GASKET, R. This part replaces 11393-121-630.

11393-121-632

$13.52

4

GASKET, R. This part replaces 11393-459-000.

11393-121-632

$13.52

4

GASKET, R. This part replaces 11393-459-306.

11393-121-632

$13.52

5

PUMP ASSY., OIL (NOT AVAILABLE)

15100-968-010

Unavailable

6

BODY, OIL PUMP

15111-968-000

Unavailable

7

KNOCK, OIL PUMP

15113-968-310

Unavailable

8

GASKET, OIL PUMP BODY This part replaces 15119-028-030.

15119-028-306

Unavailable

8

GASKET, OIL PUMP BODY

15119-028-306

Unavailable

9

COVER, OIL PUMP (NOT AVAILABLE)

15121-028-060

Unavailable

10

GASKET, OIL PUMP COVER

15128-028-030

Unavailable

11

DRIVESHAFT, OIL PUMP

15181-943-000

Unavailable

12

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-968-000

Unavailable

13

ROTOR, OIL PUMP (OUTER)

15332-968-000

Unavailable

14

SCREEN, OIL FILTER

15421-035-010

$3.80

15

BOLT, OIL JOINT (NOT AVAILABLE)

90015-028-000

Unavailable

16

BOLT A, CYLINDER STUD

90031-427-010

Unavailable

17

BOLT B, CYLINDER STUD (NOT AVAILABLE)

90032-107-010

Unavailable

18

GASKET, OIL PIPE JOINT

90405-001-000

$1.89

19

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

19

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

19

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

20

OIL SEAL (27X37X7) This part replaces 91203-459-771.

91205-943-003

$11.58

20

OIL SEAL (27X37X7)

91205-943-003

$11.58

21

OIL SEAL (11.6X19X6)

91204-HB2-003

$7.40

21

OIL SEAL (11.6X19X6) This part replaces 91204-121-711.

91204-HB2-003

$7.40

21

OIL SEAL (11.6X19X6) This part replaces 91204-121-712.

91204-HB2-003

$7.40

22

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

23

SCREW, PAN (5X12)

93500-05012-0A

$1.49

24

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

24

SCREW, PAN (6X16)

93500-06016-0A

$1.49

25

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

25

SCREW, PAN (6X25)

93500-06025-0A

$1.49

26

SCREW, PAN (6X40)

93500-06040-0A

$1.49

27

PIN A, DOWEL (8X14)

94301-08140

$2.25

28

PIN A, DOWEL (10X16)

94301-10160

$2.28
