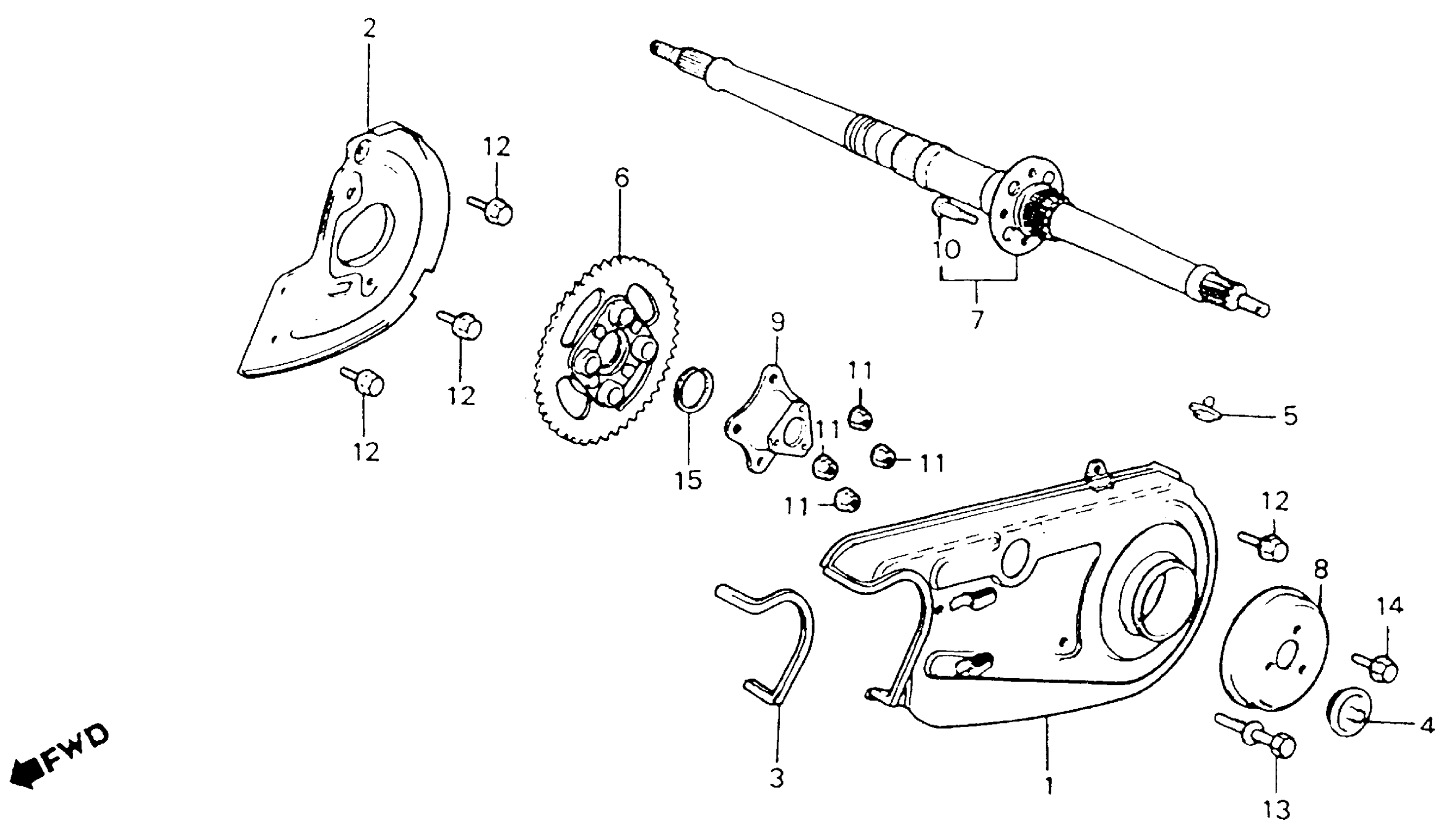

Honda ATC110A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-FC600001 REAR WHEEL AXLE + CHAIN CASE 84-85 Diagram

#

Description

Price

1

CASE, DRIVE CHAIN (NOT AVAILABLE)

40521-968-680

Unavailable

2

COVER, SUB-CHAIN (NOT AVAILABLE)

40523-968-680

Unavailable

3

SEAL B, CHAIN CASE (NOT AVAILABLE)

40525-918-300

Unavailable

4

CAP, CHAIN

40529-958-010

Unavailable

5

CAP, CHAIN

40545-958-000

Unavailable

6

SPROCKET ASSY., FINAL

41200-968-000

Unavailable

7

AXLE, RR. WHEEL (NOT AVAILABLE)

42310-968-680

Unavailable

8

PLATE, SHIELD (NOT AVAILABLE)

42327-958-000

Unavailable

9

FLANGE, SHIELD

42330-958-671

Unavailable

10

BOLT, SPROCKET FIXING

90128-961-000

Unavailable

11

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

12

BOLT-WASHER (6X12)

93401-06012-08

Unavailable

12

BOLT-WASHER (6X12) This part replaces 93491-06012-08.

93401-06012-08

Unavailable

13

BOLT-WASHER (6X55)

93491-06055-08

Unavailable

14

BOLT-WASHER (6X10)

93402-06010-08

$1.61

14

BOLT-WASHER (6X10) This part replaces 93492-06010-08.

93402-06010-08

$1.61

15

RING, SNAP (42MM) (NOT AVAILABLE)

94564-42100

Unavailable
