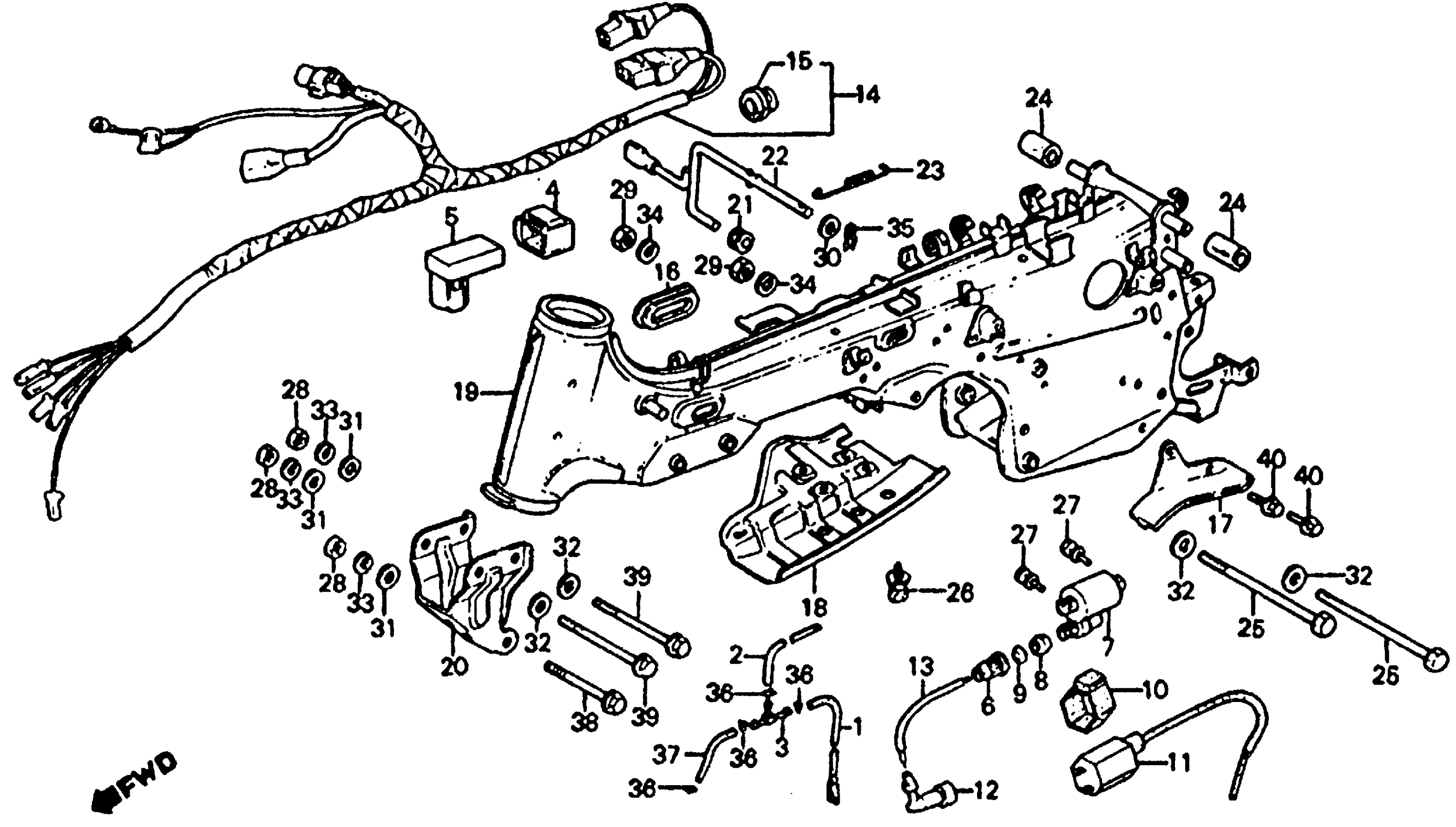

Honda ATC110A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-FC600001 FRAME + WIRE HARNESS 84-85 Diagram

#

Description
Price

1

TUBE, DRAIN (NOT AVAILABLE)

15720-968-000

Unavailable

2

TUBE, BREATHER

15721-968-000

Unavailable

3

JOINT, FUEL

16235-657-000

Unavailable

4

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-958-000.

30401-GB4-770

$5.34

5

MODULE, IGNITION CONTROL (CDI)

30410-968-003

Unavailable

10

SUSPENSION, IGNITION COIL

30506-VM6-000

Unavailable

11

COIL, IGNITION This part replaces 30510-HA5-000.

30510-KT0-405

$69.43

11

COIL, IGNITION This part replaces 30510-KG1-770.

30510-KT0-405

$69.43

11

COIL, IGNITION

30510-KT0-405

$69.43

12

CAP ASSY., NOISE SUPPRESSOR

30700-GJ5-010

Unavailable

12

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-968-003.

30700-GJ5-010

Unavailable

14

WIRE HARNESS (NOT AVAILABLE)

32100-943-680

Unavailable

15

GROMMET, WIRE HARNESS

32983-447-000

$2.83

16

GROMMET, WIRE HARNESS (NOT AVAILABLE)

32984-918-000

Unavailable

17

GUIDE, CHAIN (NOT AVAILABLE)

40526-968-000

Unavailable

18

PLATE, PROTECTOR

40528-943-680

Unavailable

19

FRAME

50100-943-680

Unavailable

20

HANGER, ENGINE (NOT AVAILABLE)

50121-943-680

Unavailable

21

GROMMET, SEAT LOCK LEVER

50220-943-000

Unavailable

22

LEVER, SEAT LOCK (NOT AVAILABLE)

50221-943-010

Unavailable

23

SPRING, COVER SETTING (NOT AVAILABLE)

50222-918-000

Unavailable

24

RUBBER, SEAT MOUNTING (NOT AVAILABLE)

50801-918-000

Unavailable

25

BOLT, FLANGE (10X122)

90018-KY4-900

Unavailable

25

BOLT, FLANGE (10X122) This part replaces 90117-VM6-003.

90018-KY4-900

Unavailable

26

BOLT-WASHER (8X16)

93403-08016-08

$1.67

26

BOLT-WASHER (8X16) This part replaces 93493-08016-08.

93403-08016-08

$1.67

28

NUT, HEX. (8MM)

94001-08000-0S

$1.19

29

NUT, HEX. (10MM)

94001-10000-0S

$1.32

30

WASHER, PLAIN (6MM)

94101-06800

Unavailable

31

WASHER, PLAIN (8MM)

94101-08000

$0.75

32

WASHER, PLAIN (10MM)

94101-10000

Unavailable

33

WASHER, SPRING (8MM)

94111-08000

$0.90

34

WASHER, SPRING (10MM)

94111-10000

$1.22

35

PIN, LOCK (6MM)

94251-06400

Unavailable

36

CLIP, TUBE (B10)

95002-02100

$1.72

37

*95001-55003-50M This part replaces 95001-55008-20M.

95001-55008-50M

Unavailable

38

BOLT, FLANGE (8X55)

90119-VM6-003

$6.42

39

BOLT, FLANGE (8X80) This part replaces 95700-08080-00.

95701-08080-00

$1.57

39

BOLT, FLANGE (8X80)

95701-08080-00

$1.57

40

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.64

40

BOLT, FLANGE (6X12)

96001-06012-00

$1.64
