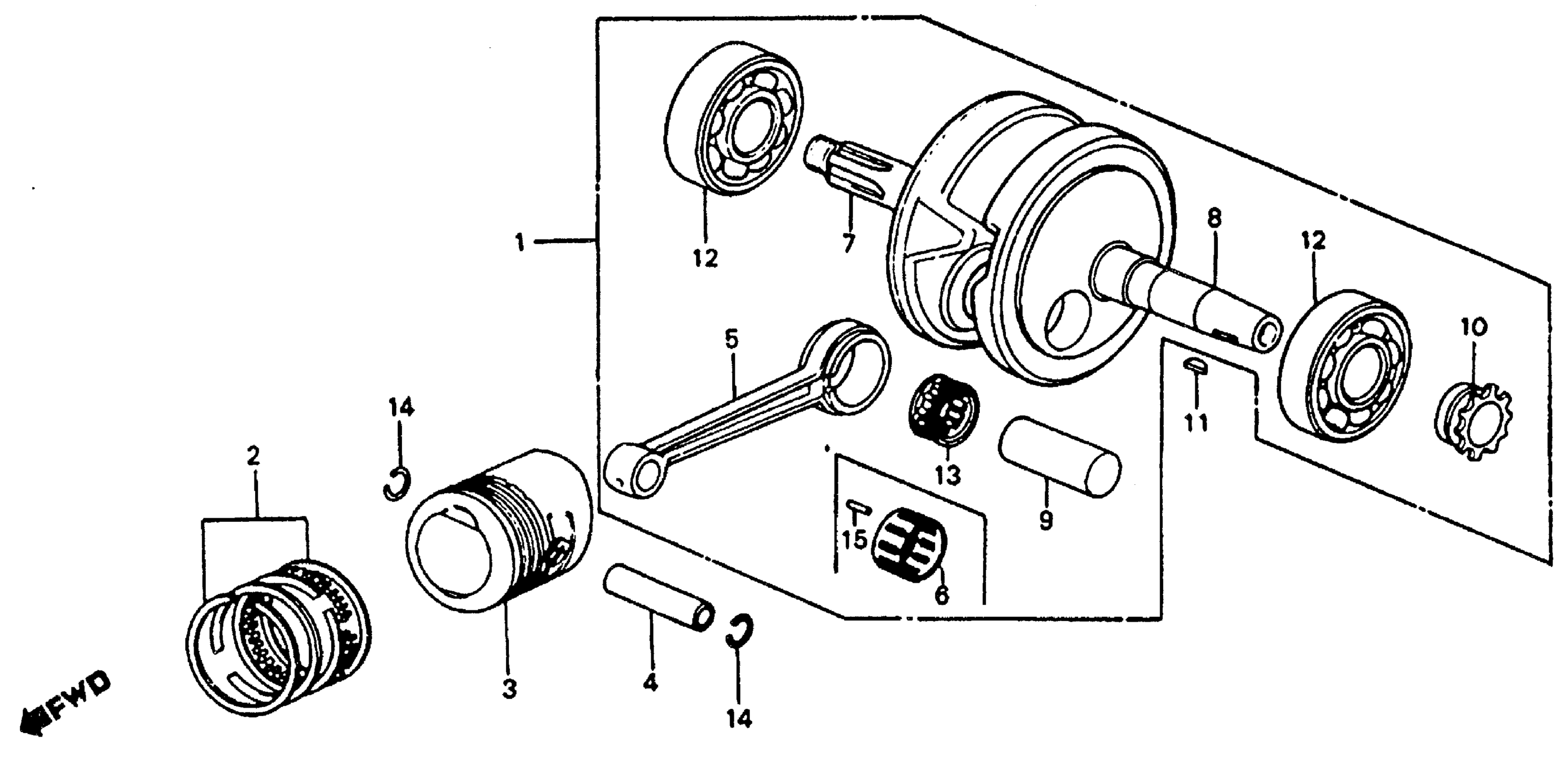

Honda ATC110A (85) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-FC600001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT (NOT AVAILABLE)

13000-943-030

Unavailable

2

RING SET, PISTON (STD)

13011-439-005

$56.20

2

RING SET, PISTON (STD) This part replaces 13011-459-003.

13011-439-005

$56.20

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-439-005

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional). This part replaces 13021-459-003.

13021-439-005

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-439-005

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional). This part replaces 13031-459-003.

13031-439-005

Unavailable

3

PISTON (STD) (NOT AVAILABLE)

13101-943-010

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-943-010

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-943-010

Unavailable

4

PIN, PISTON

13111-384-000

$19.77

5

ROD, CONNECTING (NOT AVAILABLE)

13201-943-320

Unavailable

7

CRANKSHAFT, R.

13310-459-310

Unavailable

8

CRANKSHAFT, L.

13321-943-320

Unavailable

9

PIN, CRANK

13381-459-300

Unavailable

10

SPROCKET, TIMING (15T)

14311-071-000

Unavailable

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4) This part replaces 90741-003-010.

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

12

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-071-008.

91001-071-003

$46.05

13

BEARING, CONNECTING ROD LARGE END (RED) (TOYO)

91002-383-003

Unavailable

13

BEARING, CONNECTING ROD LARGE END (RED) (TOYO) This part replaces 91002-383-004.

91002-383-003

Unavailable

13

BEARING, CONNECTING ROD LARGE END (BLUE) (TOYO)

91003-383-003

Unavailable

13

BEARING, CONNECTING ROD LARGE END (BLUE) (TOYO) This part replaces 91003-383-004.

91003-383-003

Unavailable

13

BEARING, CONNECTING ROD LARGE END (WHITE) (TOYO)

91004-383-003

$25.67

13

BEARING, CONNECTING ROD LARGE END (WHITE) (TOYO) This part replaces 91004-383-004.

91004-383-003

$25.67

14

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
