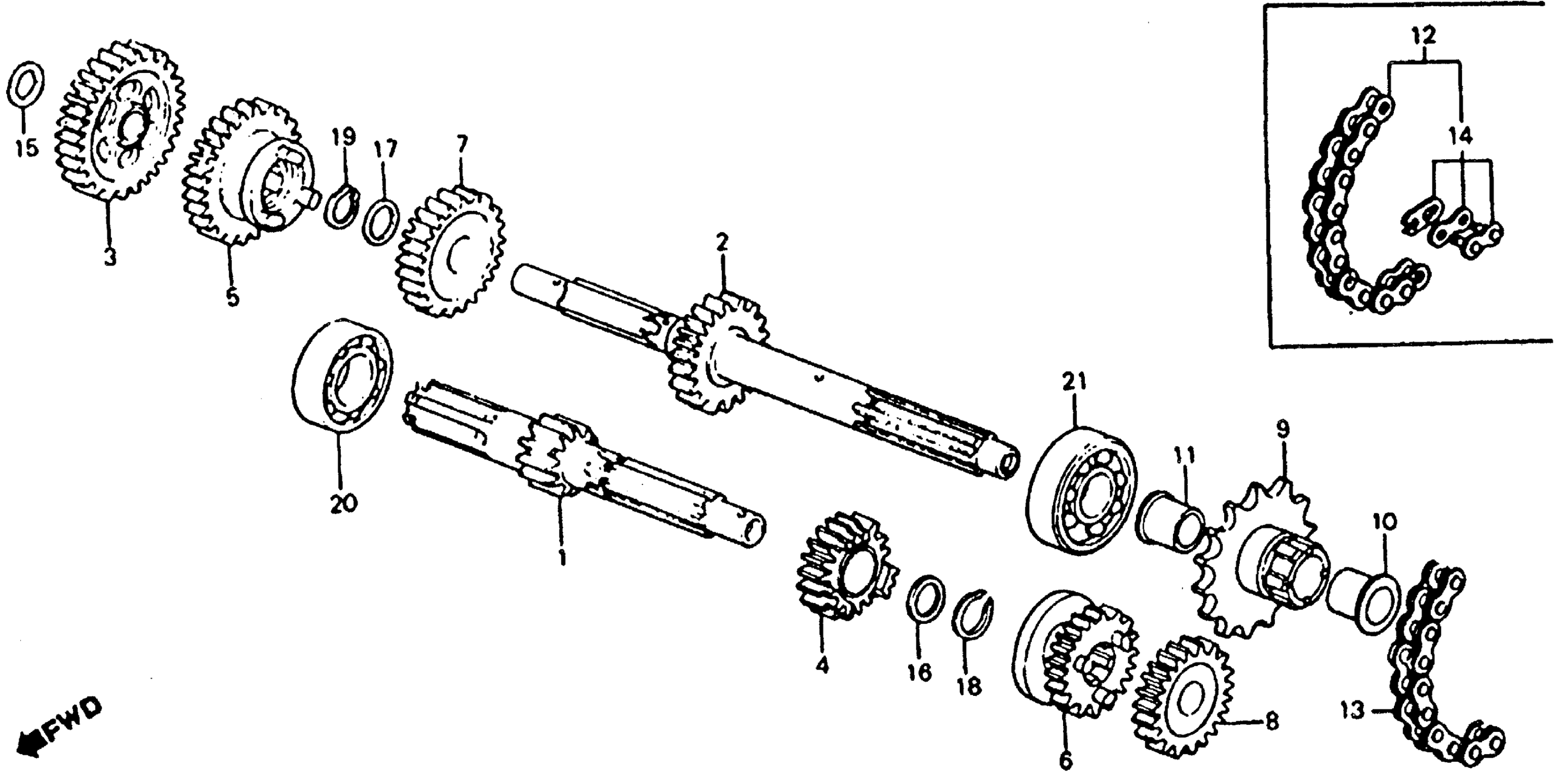

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T)

23211-459-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (23T)

23220-459-770

Unavailable

3

GEAR, COUNTERSHAFT LOW (33T)

23421-459-000

Unavailable

4

GEAR, MAINSHAFT SECOND (18T)

23431-459-010

Unavailable

5

GEAR, COUNTERSHAFT SECOND (29T) (NOT AVAILABLE)

23441-459-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T) This part replaces 23451-459-010.

23451-968-000

Unavailable

6

GEAR, MAINSHAFT THIRD (21T)

23451-968-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T) This part replaces 23461-459-010.

23461-968-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (25T)

23461-968-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T) This part replaces 23471-459-010.

23471-968-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-968-000

Unavailable

9

SPROCKET, DRIVE (15T)

23801-459-770

Unavailable

10

BUSH A, DRIVE SPROCKET (NOT AVAILABLE)

23806-459-770

Unavailable

11

BUSH B, DRIVE SPROCKET

23807-459-770

Unavailable

12

CHAIN, DRIVE (86L) (DAIDO) | (Optional).

40530-943-811

Unavailable

13

CHAIN, DRIVE (86L) (DAIDO) This part replaces 40530-943-013.

40530-943-811

Unavailable

13

CHAIN, DRIVE (86L) (DAIDO)

40530-943-811

Unavailable

14

MASTER LINK | (Optional).

40531-VM6-003

Unavailable

14

MASTER LINK | (Optional). This part replaces 40533-943-811.

40531-VM6-003

Unavailable

15

WASHER, THRUST (14MM)

90451-121-000

$1.87

16

WASHER, SPLINE (18MM)

90461-028-000

Unavailable

17

WASHER, SPLINE (20MM)

90461-459-010

$5.54

18

CIRCLIP (18MM)

90601-030-000

$1.77

19

CIRCLIP (20MM)

90601-459-000

$2.92

20

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

21

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
