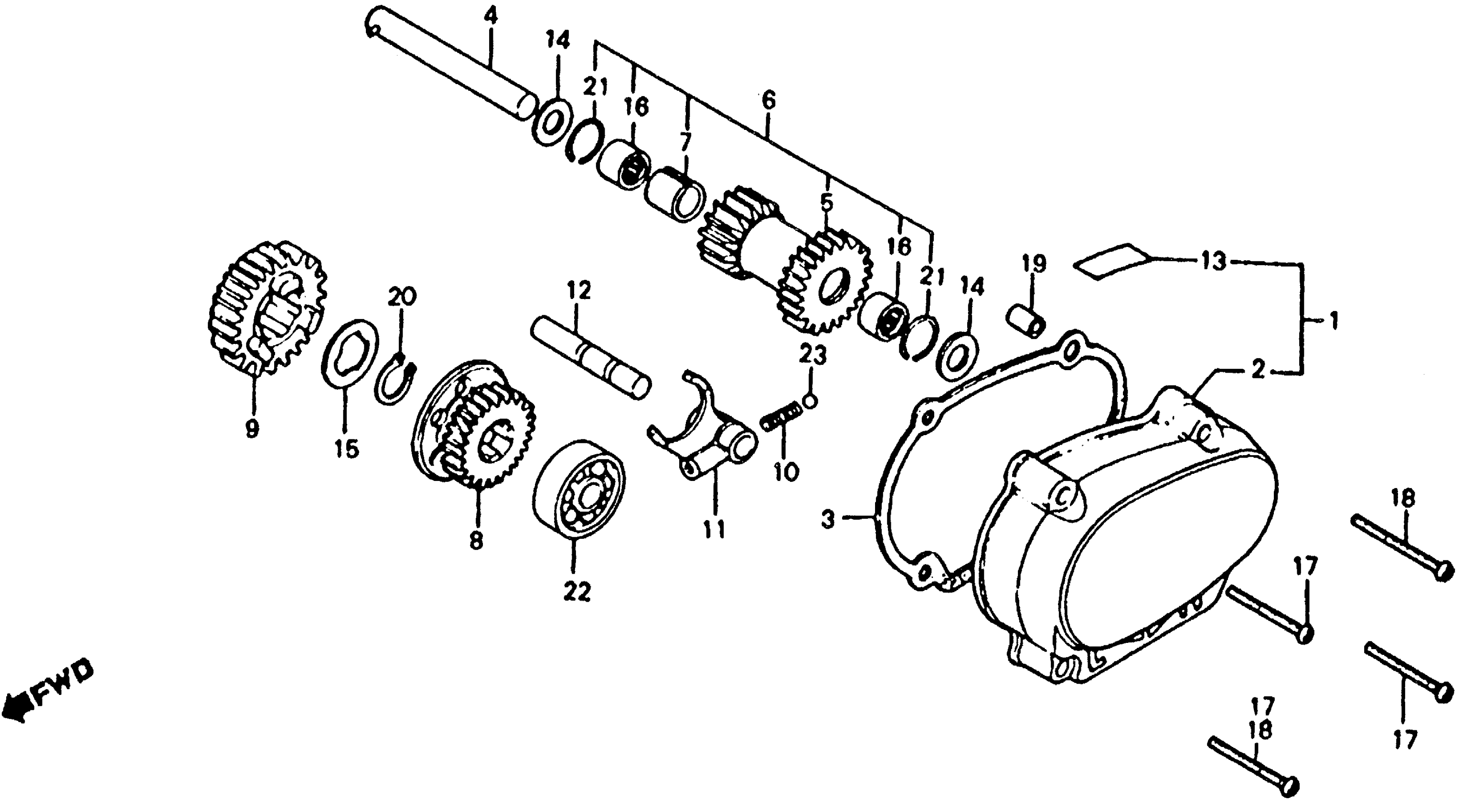

Honda ATC110A (83) ALL TERRAIN CYCLE, JPN, VIN# JH3TB020-DC400008 TO JH3TB020-DC453423 SUB-TRANSMISSION COVER Diagram

COVER, SUB-TRANSMISSION (NOT AVAILABLE)

11371-943-000

Unavailable

GASKET This part replaces 11693-053-030.

11693-459-962

$6.72

GASKET This part replaces 11693-053-306.

11693-459-962

$6.72

GASKET This part replaces 11693-459-960.

11693-459-962

$6.72

COUNTERSHAFT, SUB-TRANSMISSION (NOT AVAILABLE)

23900-459-772

Unavailable

GEAR, SUB-TRANSMISSION COUNTERSHAFT

23910-459-771

Unavailable

COLLAR (19MM)

23912-459-770

Unavailable

GEAR, SUB-TRANSMISSION LOW

23921-943-770

Unavailable

GEAR, SUB-TRANSMISSION HIGH (27T)

23931-459-770

Unavailable

SPRING, BALL SETTING (NOT AVAILABLE)

24271-053-010

Unavailable

FORK, SUB-TRANSMISSION GEARSHIFT

24801-459-770

Unavailable

SHAFT, GEARSHIFT FORK

24811-459-770

Unavailable

WASHER, THRUST (13MM)

90451-459-770

$2.48

WASHER, SPLINE (20MM)

90456-053-000

Unavailable

BEARING, NEEDLE (19X13X12) (NOT AVAILABLE)

91002-459-773

Unavailable

SCREW, PAN (6X35) This part replaces 93500-06035.

93500-06035-0A

$1.49

SCREW, PAN (6X35)

93500-06035-0A

$1.49

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

SCREW, PAN (6X45)

93500-06045-0A

$1.49

PIN A, DOWEL (10X14)

94301-10140

$2.28

CIRCLIP, OUTER (20MM)

94510-20000

$1.49

CIRCLIP, OUTER (20MM) This part replaces 94510-20120.

94510-20000

$1.49

CLIP, PISTON PIN (19MM)

94601-19000

$1.49

BEARING, RADIAL BALL (6202U)

96140-62020

$13.60

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
